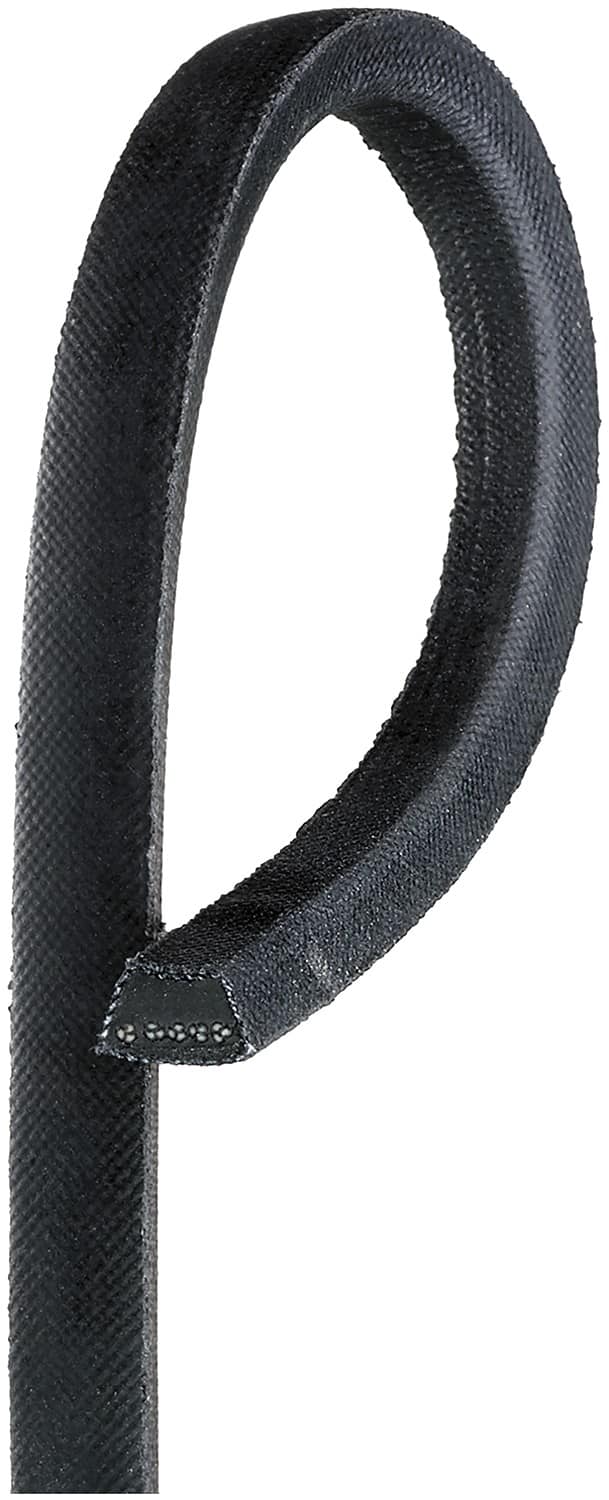

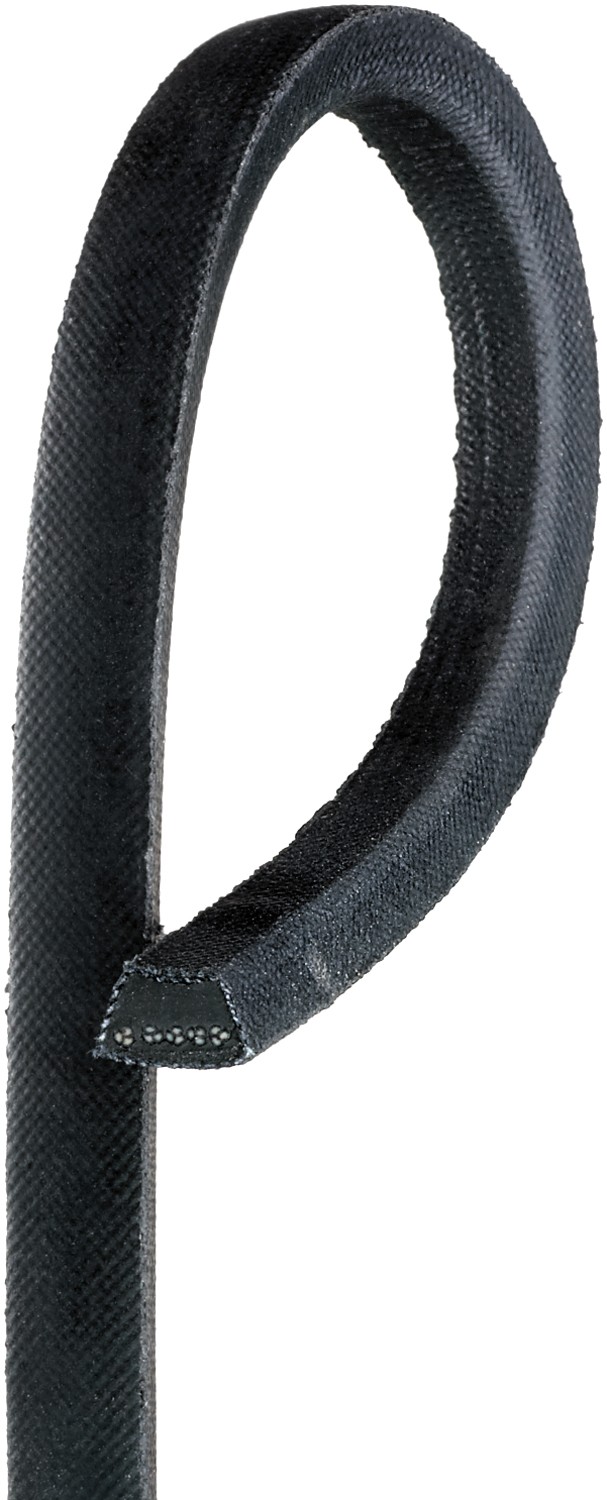

Gates 1250 Truflex FHP Low Horse-Power V-Belt

Gates 1250 Truflex FHP Low Horse-Power V-Belt

Features:

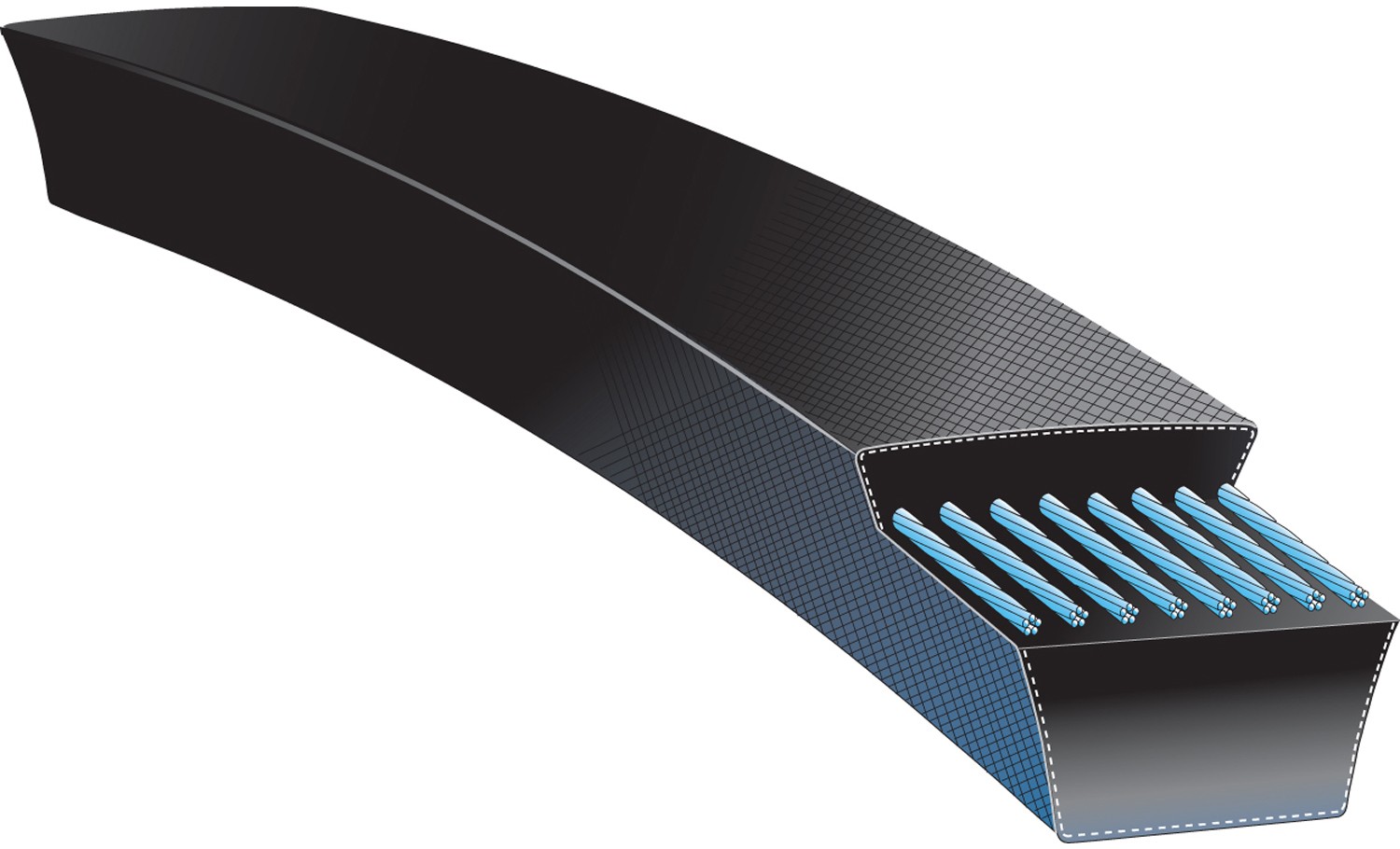

Flex-bonded cords are strongly forged to the belt body, resulting in equal load distribution, resistance to fatigue and shock loads and the absorption of bending stress without cord deterioration
Proprietary Flex-Weave cover is a patented fabric construction, providing extended protection to the belt core from oil, contaminants and heat for longer belt life
Runs with smooth, quiet operation
Meets RMA oil and heat-resistant standards and static conductivity requirements
Available in 2L (0), 3L (1), 4L (2) and 5L (3) cross-sections
Do not use on applications where FHP medium horsepower V-belts are recommended

Truflex V-Belts are engineered with superior length stability for minimal take-up requirements, perfect for all industrial, light-duty applications, including fractional horsepower (FHP) motors and applications using backside idlers.

Attributes:

Type	FHP Low Horse-Power V-Belt
Effective Length	627
Outside Circumference	635
Top Width	10
Outside Circumference	25
Top Width	0.38
Effective Length	24.68
Strand Quantity	1
Angle	37
9837	No
158	Wrapped
Cross Section Designation	3L
Belt Material	EPDM
Section	Polyester
