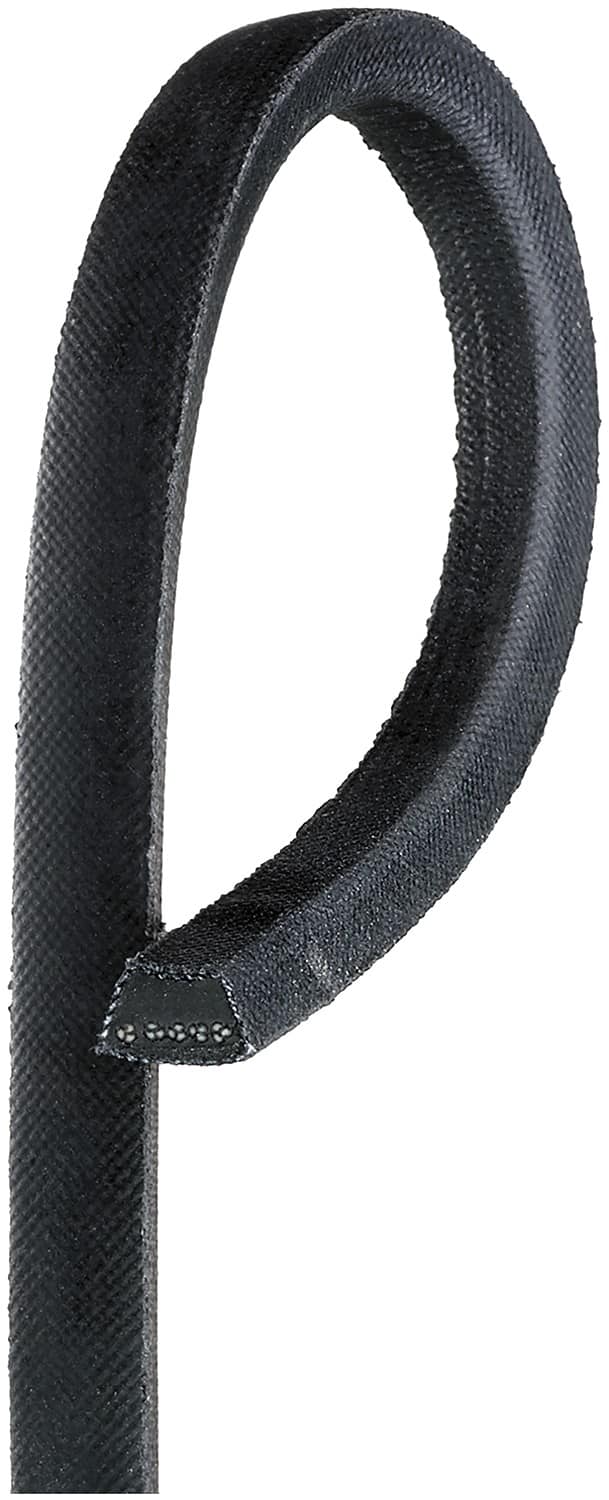

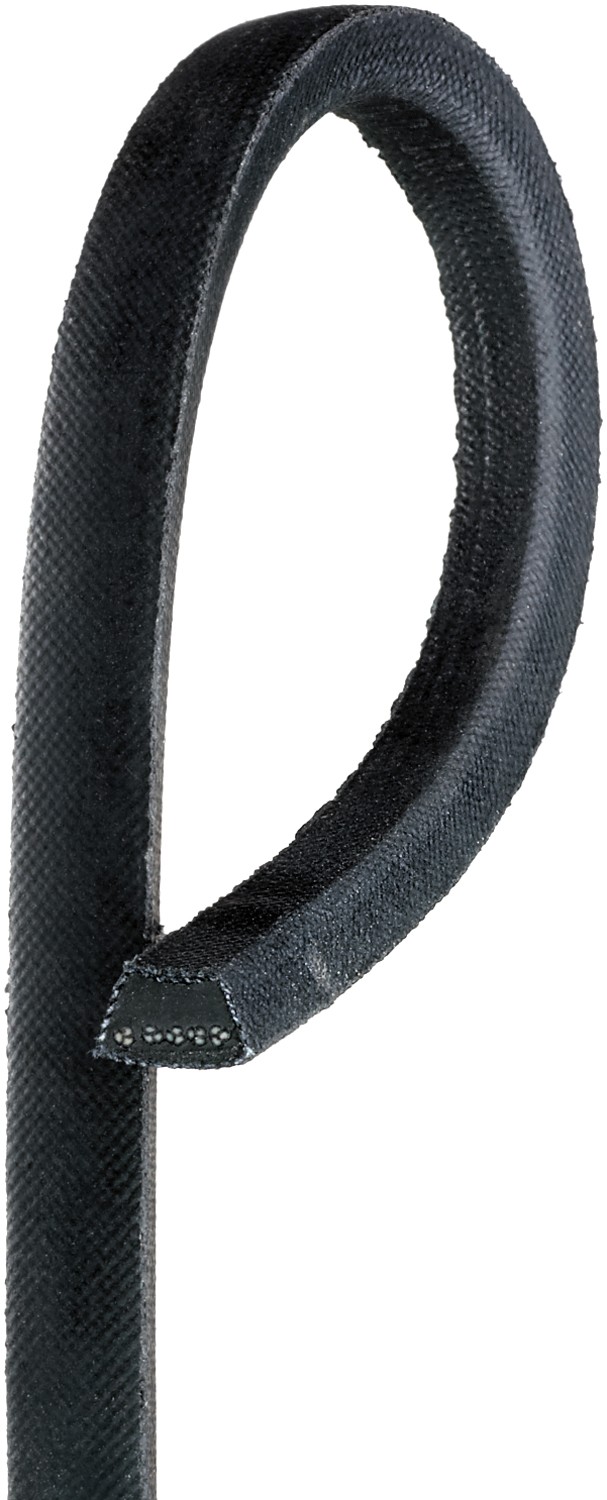

Gates 2310 Truflex FHP Low Horse-Power V-Belt

Gates 2310 Truflex FHP Low Horse-Power V-Belt

Features:

Available in 2L (0), 3L (1), 4L (2) and 5L (3) cross-sections
Do not use on applications where FHP medium horsepower V-belts are recommended

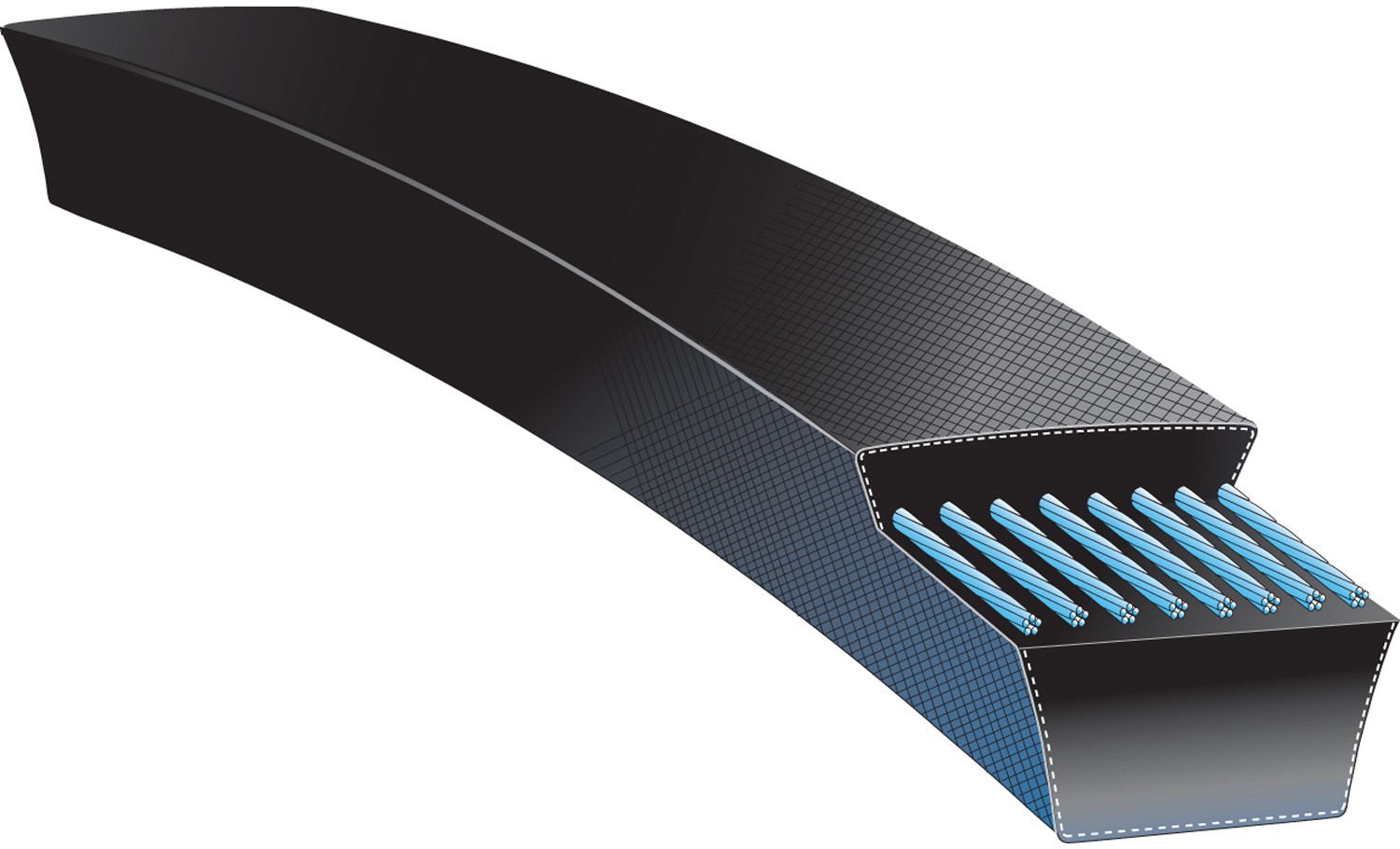

Flex-bonded cords are strongly forged to the belt body, resulting in equal load distribution, resistance to fatigue and shock loads and the absorption of bending stress without cord deterioration
Proprietary Flex-Weave cover is a patented fabric construction, providing extended protection to the belt core from oil, contaminants and heat for longer belt life
Runs with smooth, quiet operation
Meets RMA oil and heat-resistant standards and static conductivity requirements

Truflex V-Belts are engineered with superior length stability for minimal take-up requirements, perfect for all industrial, light-duty applications, including fractional horsepower (FHP) motors and applications using backside idlers.

Attributes:

Belt Material	EPDM
Outside Circumference	787
Effective Length	786
Section	Polyester
Top Width	13
Top Width	0.5
Outside Circumference	31
Strand Quantity	1
Type	FHP Low Horse-Power V-Belt
9837	No
Cross Section Designation	4L
158	Wrapped
Effective Length	30.96
Angle	38
