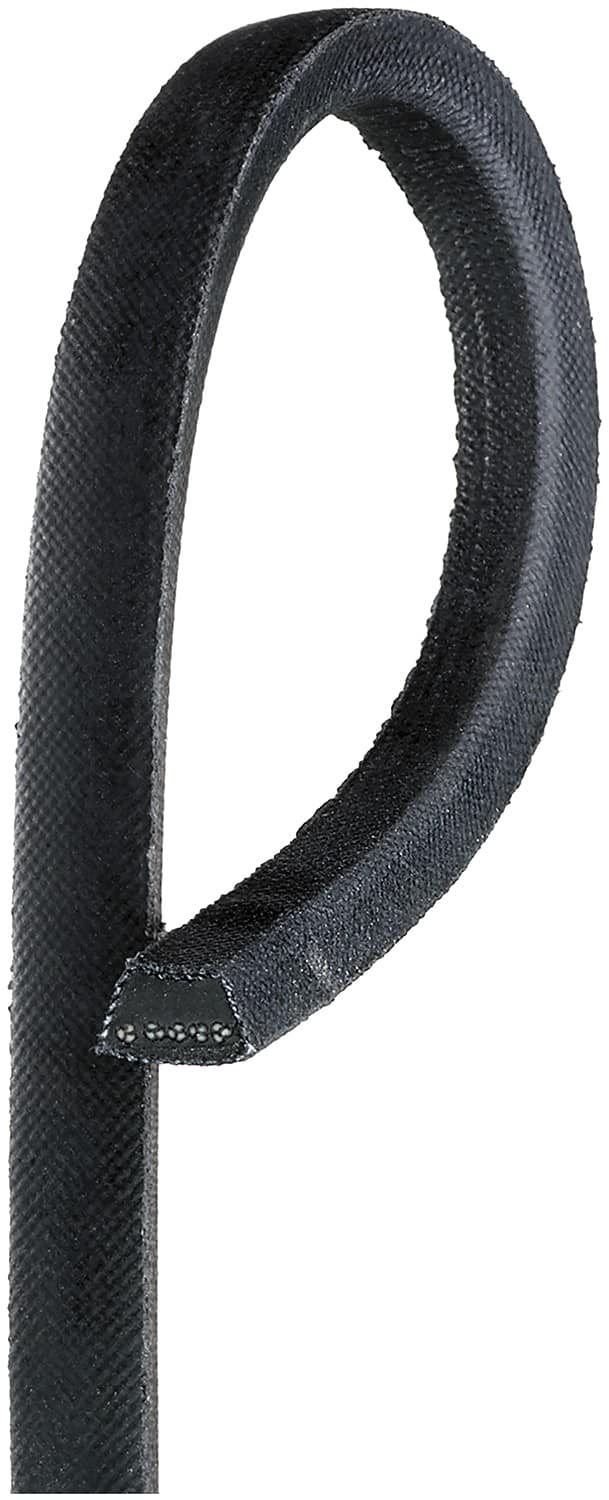

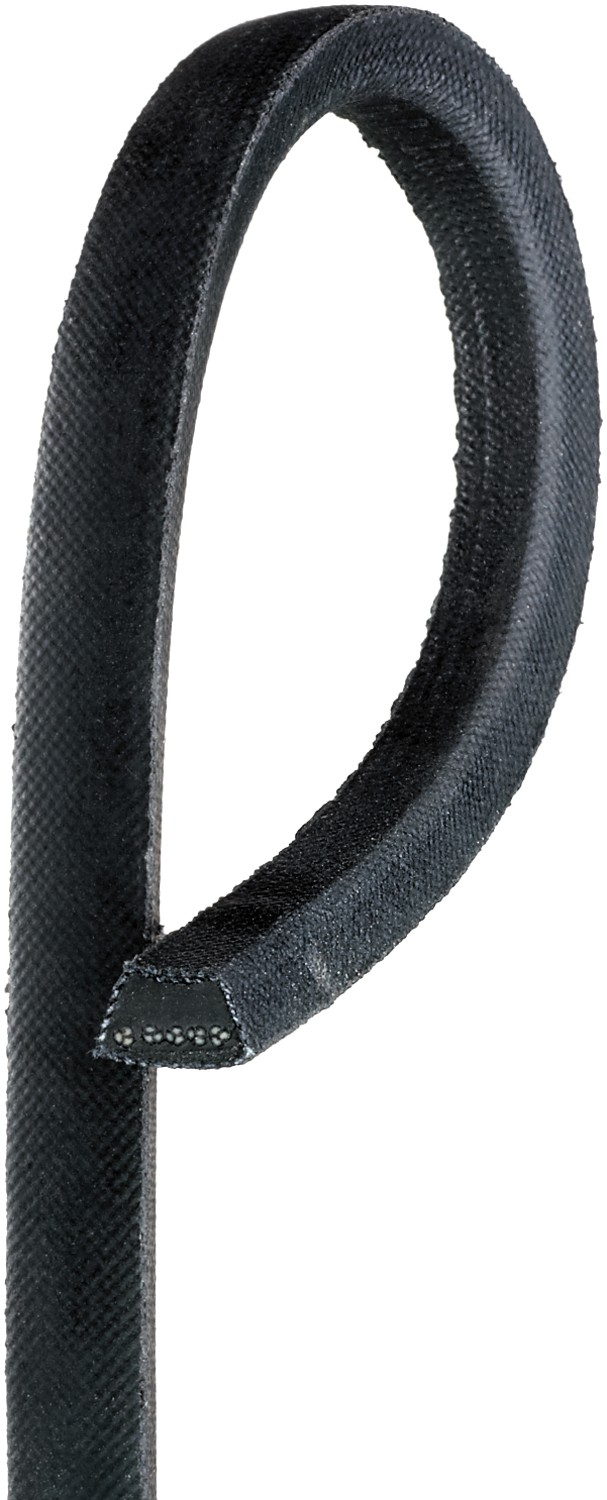

Gates 2440 Truflex FHP Low Horse-Power V-Belt

Gates 2440 Truflex FHP Low Horse-Power V-Belt

Features:

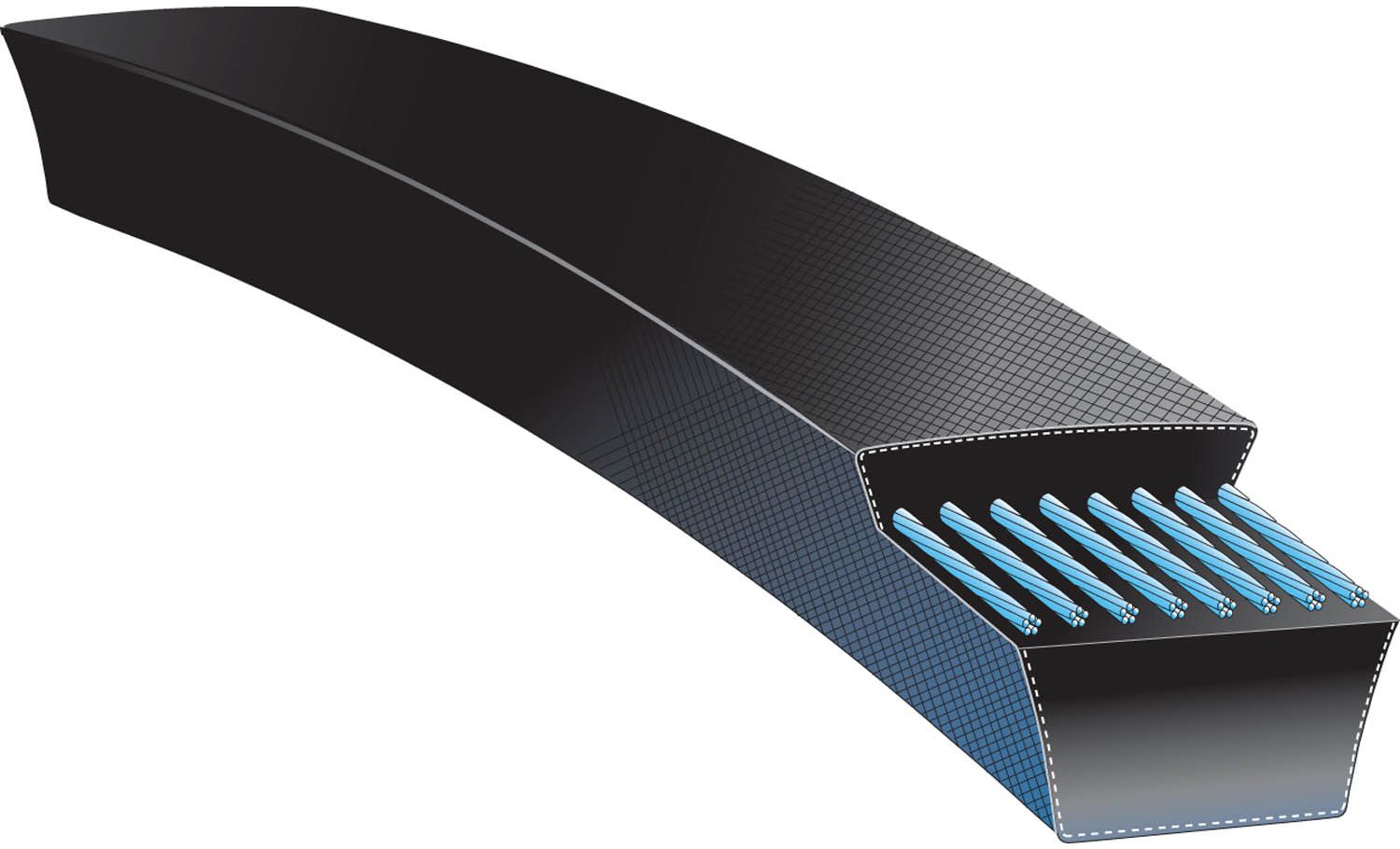

Flex-bonded cords are strongly forged to the belt body, resulting in equal load distribution, resistance to fatigue and shock loads and the absorption of bending stress without cord deterioration
Proprietary Flex-Weave cover is a patented fabric construction, providing extended protection to the belt core from oil, contaminants and heat for longer belt life
Runs with smooth, quiet operation
Meets RMA oil and heat-resistant standards and static conductivity requirements
Available in 2L (0), 3L (1), 4L (2) and 5L (3) cross-sections
Do not use on applications where FHP medium horsepower V-belts are recommended

Truflex V-Belts are engineered with superior length stability for minimal take-up requirements, perfect for all industrial, light-duty applications, including fractional horsepower (FHP) motors and applications using backside idlers.

Attributes:

Belt Material	EPDM
Type	FHP Low Horse-Power V-Belt
Section	Polyester
Angle	37
Strand Quantity	1
Top Width	13
Top Width	0.5
Outside Circumference	1118
Effective Length	43.96
Effective Length	1117
Cross Section Designation	4L
158	Wrapped
9837	No
Outside Circumference	44
