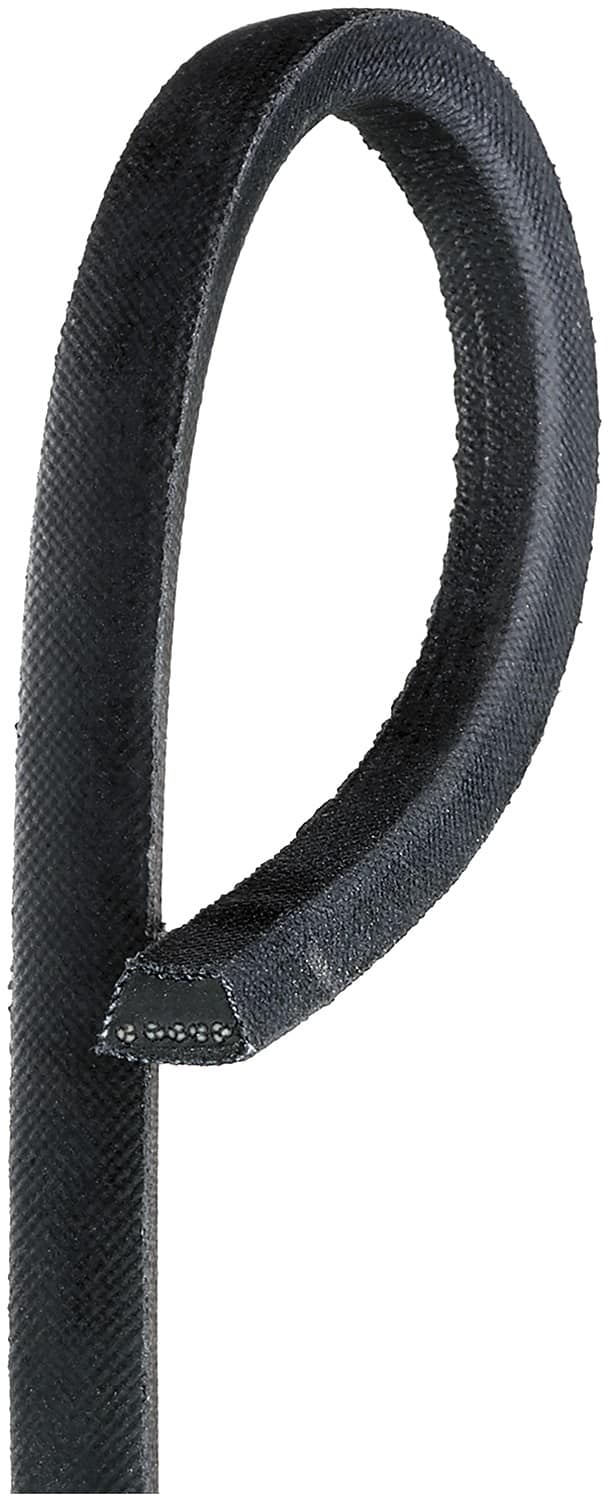

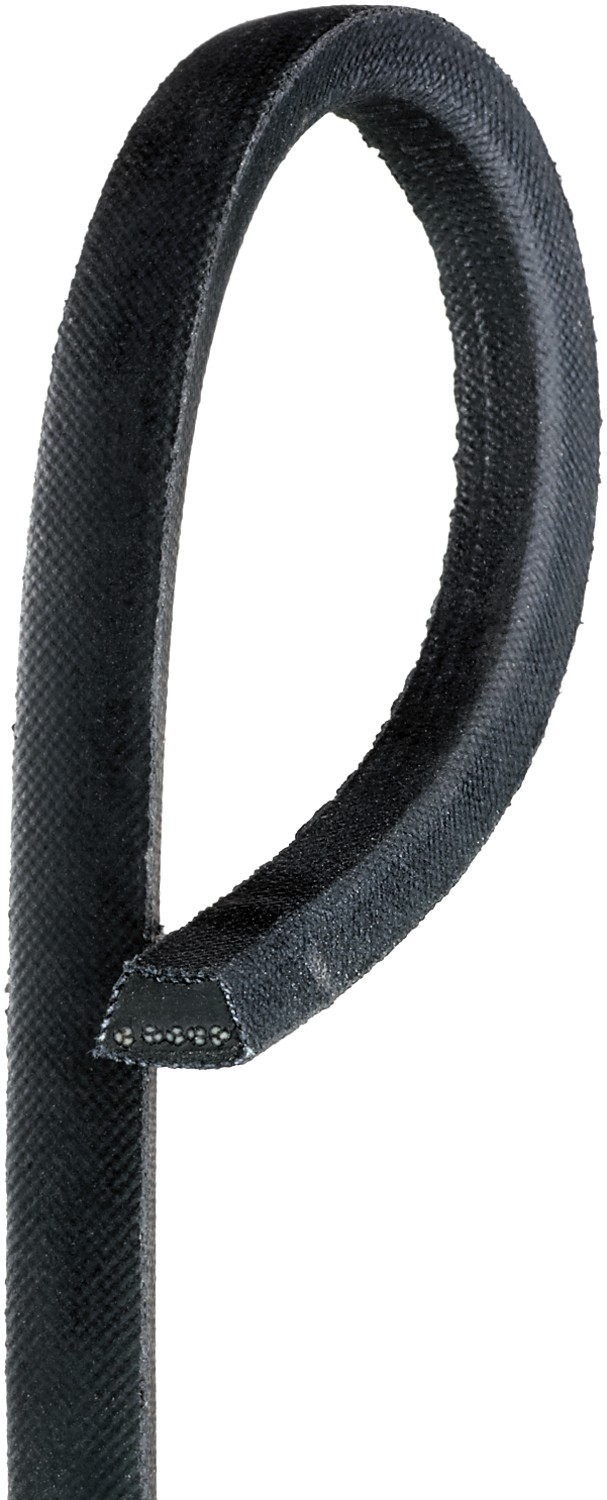

Gates 2480 Truflex FHP Low Horse-Power V-Belt

Gates 2480 Truflex FHP Low Horse-Power V-Belt

Features:

Meets RMA oil and heat-resistant standards and static conductivity requirements
Available in 2L (0), 3L (1), 4L (2) and 5L (3) cross-sections
Do not use on applications where FHP medium horsepower V-belts are recommended

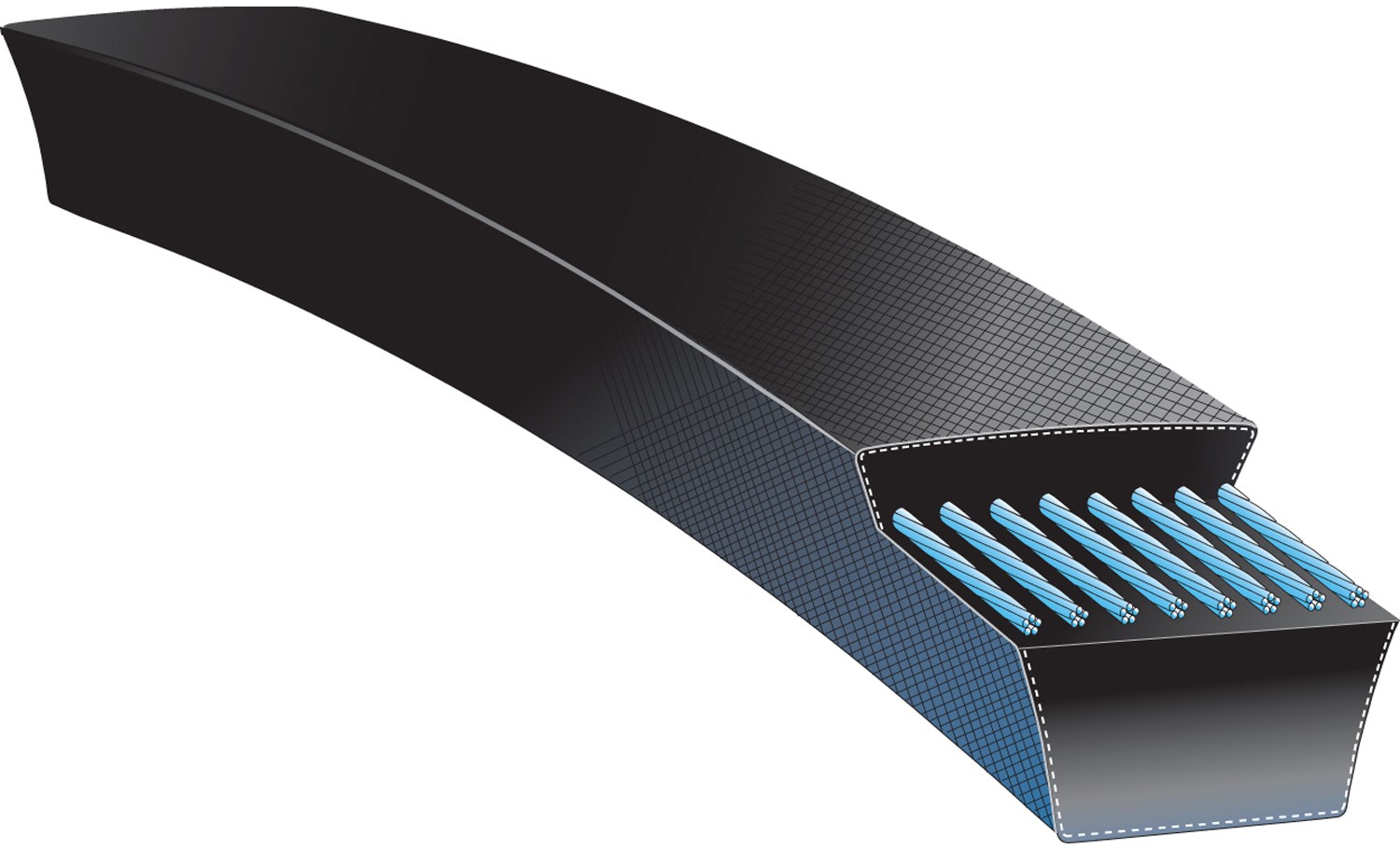

Flex-bonded cords are strongly forged to the belt body, resulting in equal load distribution, resistance to fatigue and shock loads and the absorption of bending stress without cord deterioration
Proprietary Flex-Weave cover is a patented fabric construction, providing extended protection to the belt core from oil, contaminants and heat for longer belt life
Runs with smooth, quiet operation

Truflex V-Belts are engineered with superior length stability for minimal take-up requirements, perfect for all industrial, light-duty applications, including fractional horsepower (FHP) motors and applications using backside idlers.

Attributes:

Effective Length	47.96
Outside Circumference	48
Angle	37
158	Wrapped
9837	No
Top Width	0.5
Strand Quantity	1
Cross Section Designation	4L
Type	FHP Low Horse-Power V-Belt
Outside Circumference	1219
Effective Length	1218
Belt Material	EPDM
Top Width	13
Section	Polyester
