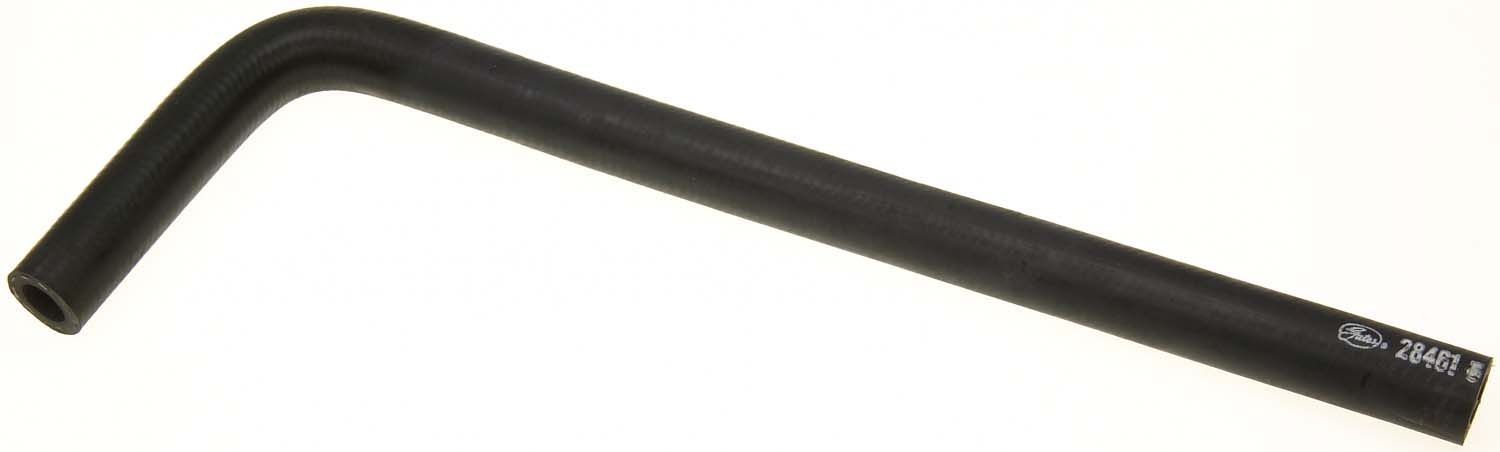

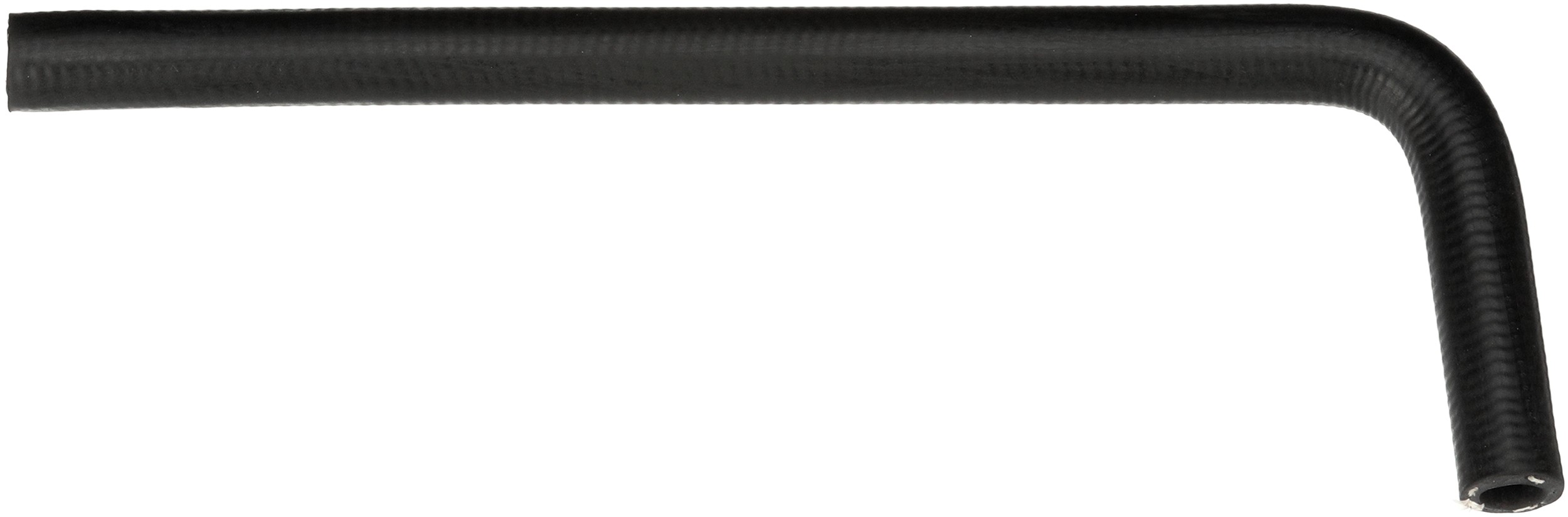

Gates 28461 Molded 90 Degree Heater Hose

Gates 28461 Molded 90 Degree Heater Hose

Features:

Resists electrochemical degradation and water permeation
Use with heater hose connectors and bulk heater hose to create custom assemblies
Compatible for coolant, air and water applications
EPDM tube and cover, synthetic fiber reinforcement
SAE 20R3 EC Class D1, SAE 20R4 EC Class D1
Temperature Range: -40 Deg. F to +275 Deg. F (-40 Deg. C to +135 Deg. C)
Caution: Do not use for fuel or oil transfer applications

It can be difficult to find hoses that easily adapt to sharp bends in your assemblies. Gates created a 90 Degree Molded Heater Hose to make replacing hoses with existing sharp bends easy. Conveniently, our 38 sizes handle thousands of applications and are built to last.

Attributes:

Arm Length	305
Material	EPDM
Arm Length	12
Inside Diameter	0.5
Inside Diameter	13
Connection diameter:	13
Connection diameter:	0.5
9839	Yes
9845	0
Length	406
Length	16
Arm Length	102
Arm Length	4
Angle	90

Vehicle Applications:

Make	Model	Years
Acura		1992 to 1994
Chevrolet		1987 to 2004
GMC		1987 to 1990
Geo		1993 to 1994
Isuzu		1988 to 1989
Mazda		1995 to 2002
Nissan		1980 to 1982
Pontiac		1994 to 1994
Suzuki		1989 to 2006
Toyota		1979 to 1987
