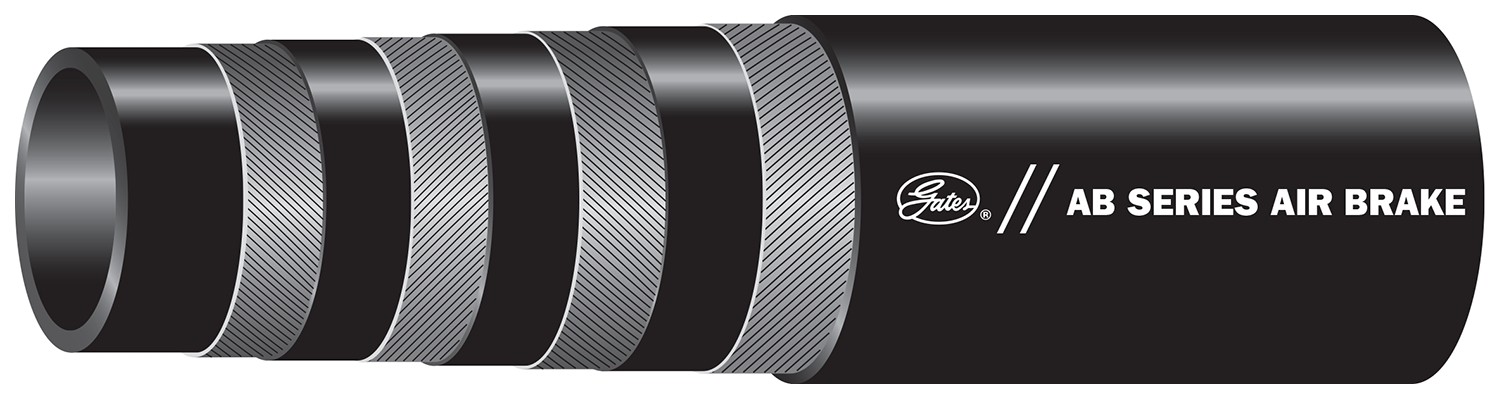

Gates 28760 AB Series Air Brake Hose

Gates 28760 AB Series Air Brake Hose

Features:

Flexible and kink-resistant
Temperature Range: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C)
Designed to accept all styles of air brake couplings, including conventional brass and plastic couplings
Note: See Engineering and Technical Data Section of the Gates Hydraulic Catalog for compliance
Four-spiral polyester construction meets SAE J1402 specifications; complies with DOT FMVSS 106 requirements
Note: Federal law requires registration with the Department of Transportation for anyone producing air brake hose assemblies with swaged or crimped fittings
Superior EPDM rubber resists damaging eﬀects of ozone and heat, plus harmful grease and oil common to air brake systems

Computer-controlled manufacturing process virtually insures product uniformity for the AB Series Air Brake Hose.

Attributes:

Industrial Description	3/8 X 250FT Reel Rubber Air Brake
1363	Black
9856	Gates G33 Air Brake Couplings
9453	J1402
9954	N/A
9953	N/A
Temperature Rating	-40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C)
59	EPDM Rubber
1261	Four-Spiral Fiber
761	EPDM Rubber
Tube Description	EPDM Rubber
2053	225 PS
9941	6
Hose Pressure Description	Low Pressure
Type	Fleet Application & Maintenance Hose
Product Type	AB Series Air Brake Hose
Burst Pressure	1000 PS
Length	250 FT
Inside Diameter	.375 IN
Outside Diameter	.75 IN
