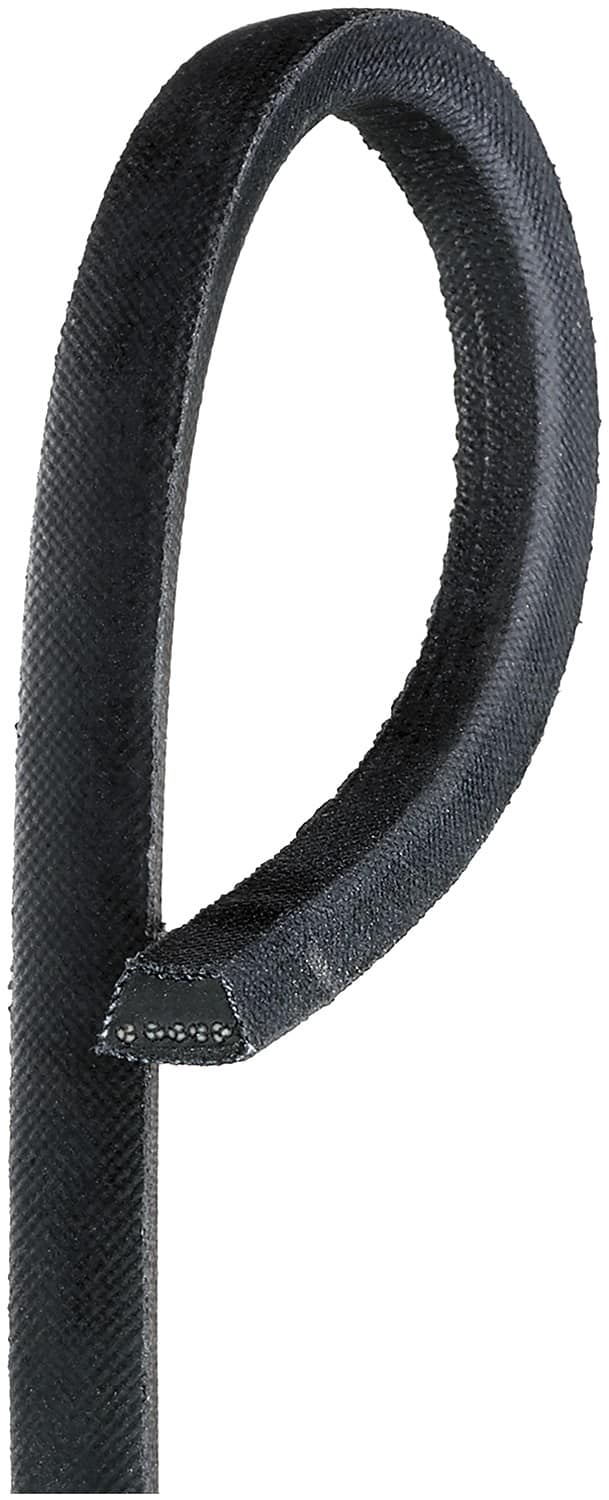

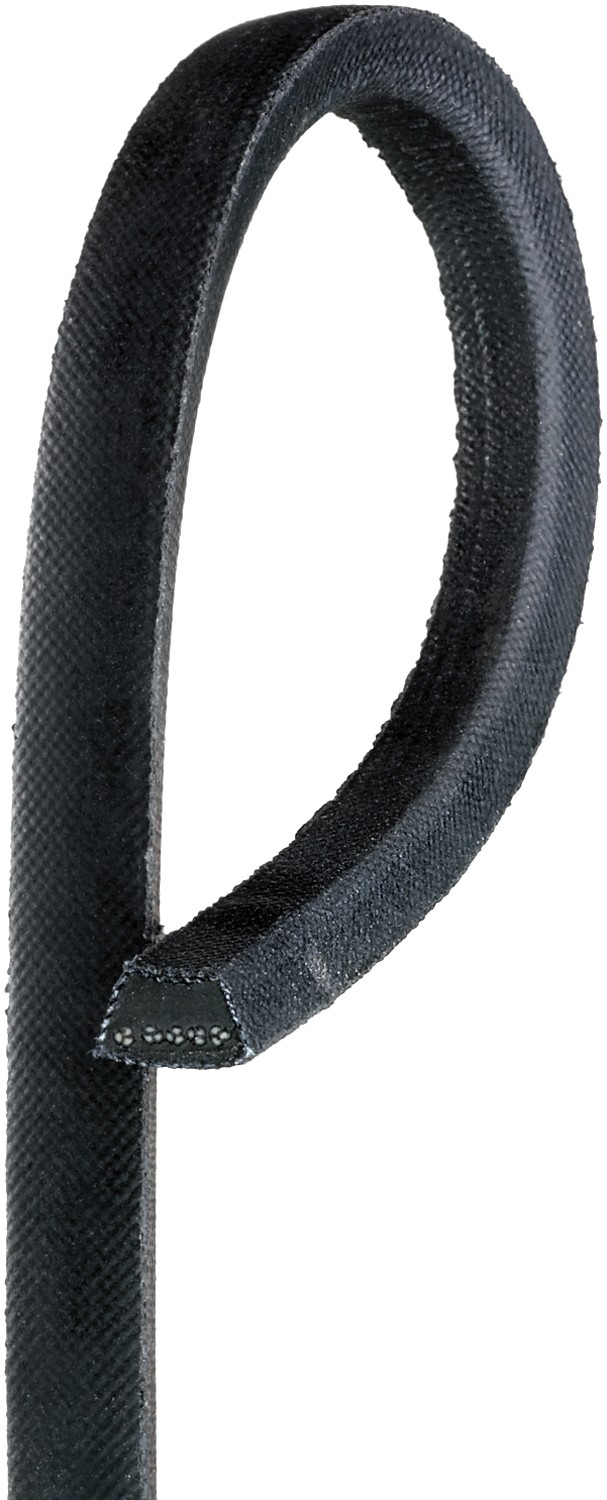

Gates 2900 Truflex FHP Low Horse-Power V-Belt

Gates 2900 Truflex FHP Low Horse-Power V-Belt

Features:

Proprietary Flex-Weave cover is a patented fabric construction, providing extended protection to the belt core from oil, contaminants and heat for longer belt life
Available in 2L (0), 3L (1), 4L (2) and 5L (3) cross-sections
Do not use on applications where FHP medium horsepower V-belts are recommended
Meets RMA oil and heat-resistant standards and static conductivity requirements
Runs with smooth, quiet operation

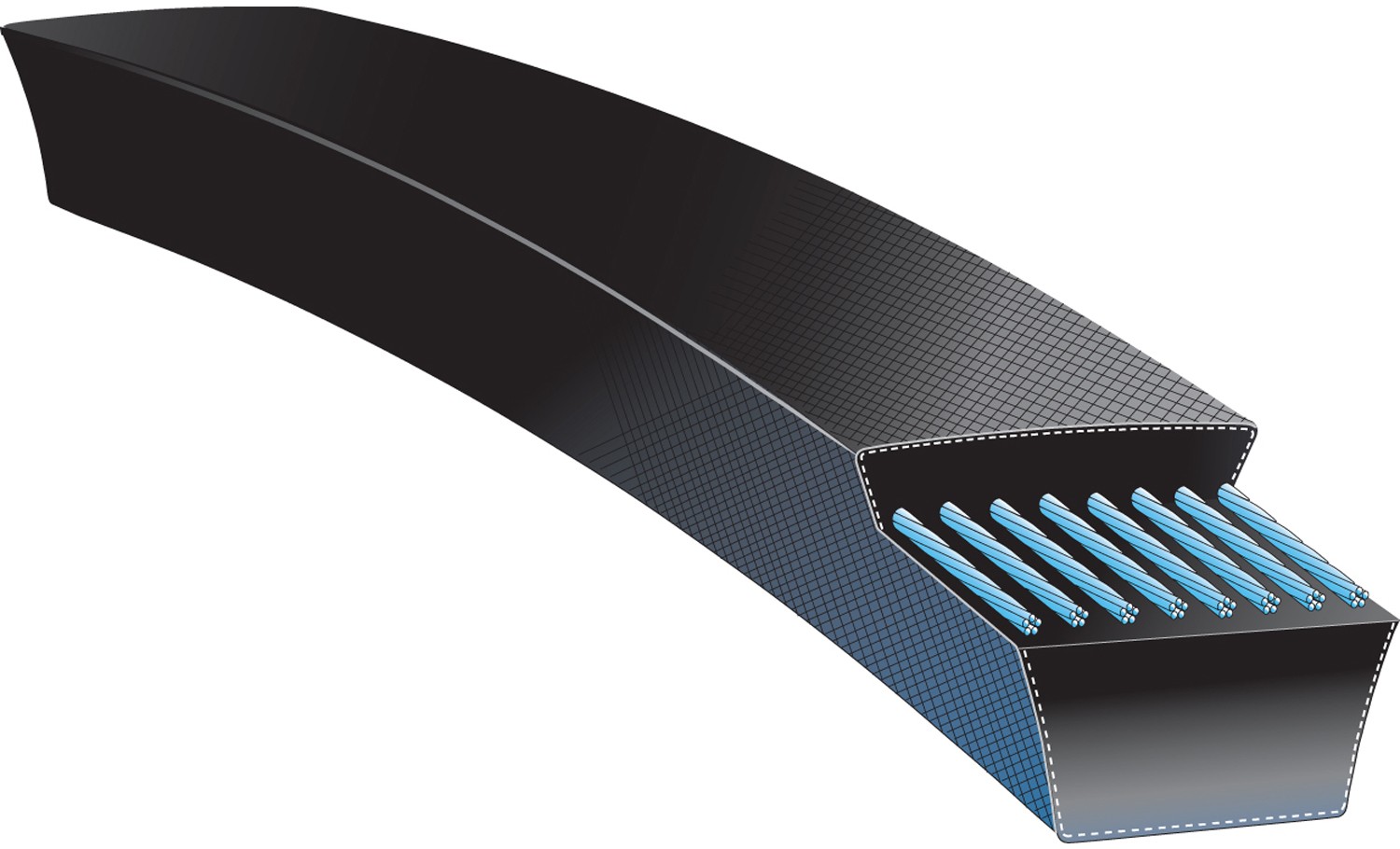

Flex-bonded cords are strongly forged to the belt body, resulting in equal load distribution, resistance to fatigue and shock loads and the absorption of bending stress without cord deterioration

Truflex V-Belts are engineered with superior length stability for minimal take-up requirements, perfect for all industrial, light-duty applications, including fractional horsepower (FHP) motors and applications using backside idlers.

Attributes:

Outside Circumference	90
Strand Quantity	1
158	Wrapped
9837	No
Outside Circumference	2286
Angle	38
Effective Length	2285
Effective Length	89.96
Top Width	13
Top Width	0.5
Cross Section Designation	4L
Section	Polyester
Belt Material	EPDM
Type	FHP Low Horse-Power V-Belt
