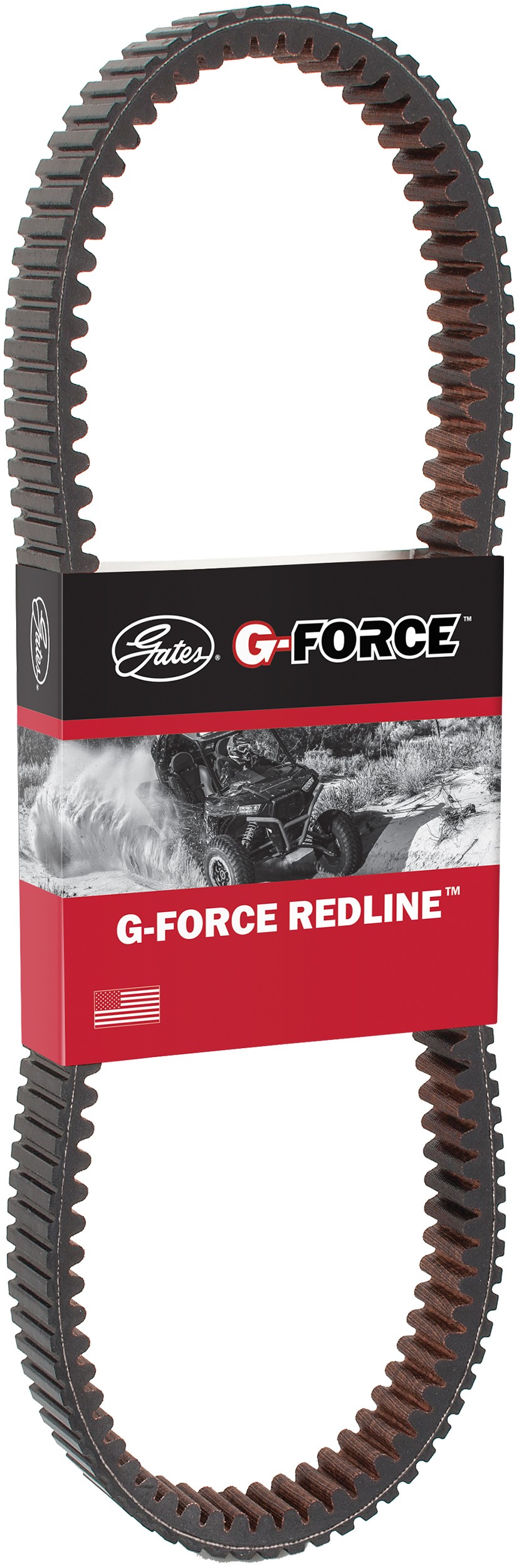

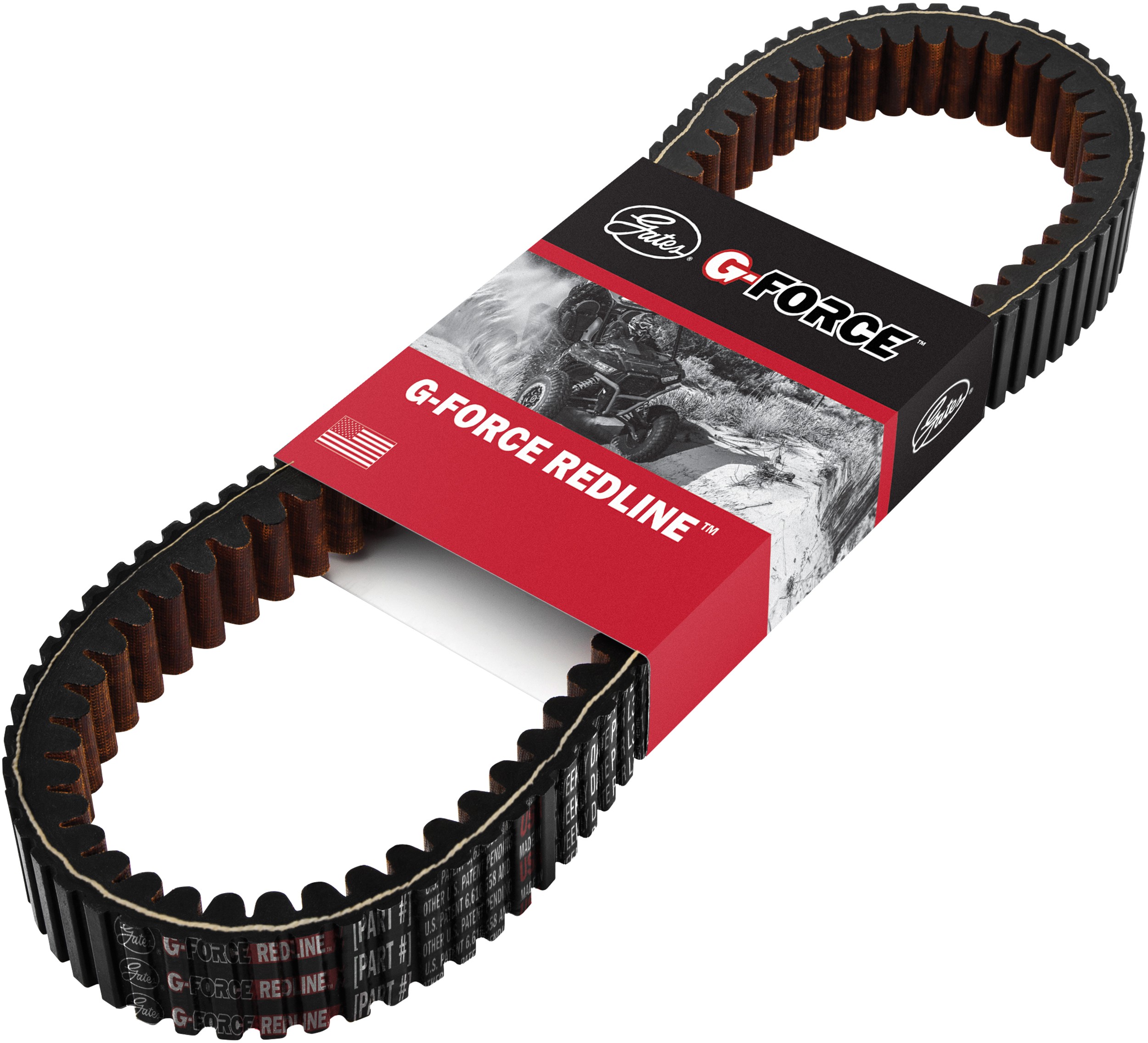

Gates 33R3836 G-Force Redline Continuously Variable Transmission (CVT) Belt

Gates 33R3836 G-Force Redline Continuously Variable Transmission (CVT) Belt

Features:

Improved durability, crack- and wear-resistant means a longer-lasting, higher-performance power transmission belt for the most demanding applications
Optimized, patented Ethylene Elastomeric (EE) compound maximizes axial stiffness enabling belts to run at higher continuous torques or loads
Greater heat resistance and recovery, even under severe duty cycles
Tested under extreme conditions in controlled environments as well as on race vehicles

Gates G-Force RedLine CVT Belts are the first of a new generation of Continuously Variable Transmission (CVT) belts. Gatesâ€™ innovative design results in better acceleration, higher top speeds, less speed ratio and energy loss in extreme off-road environments.

Attributes:

Top Width	1.344
Section	Aramid
9829	31.9
Outside Circumference	1003
Color	Black
Top Width	34
Angle	26
Thickness	0.567
Type	Power Sport Specialty High Performance CVT Belt
Belt Material	EPDM
Outside Circumference	39.5
9830	974
Grade Type	OE Improved
4747	Yes
9830	38.362
9837	Yes
158	Double Notched
Cross Section Designation	RVS-R
9829	1.256
Thickness	14.4
