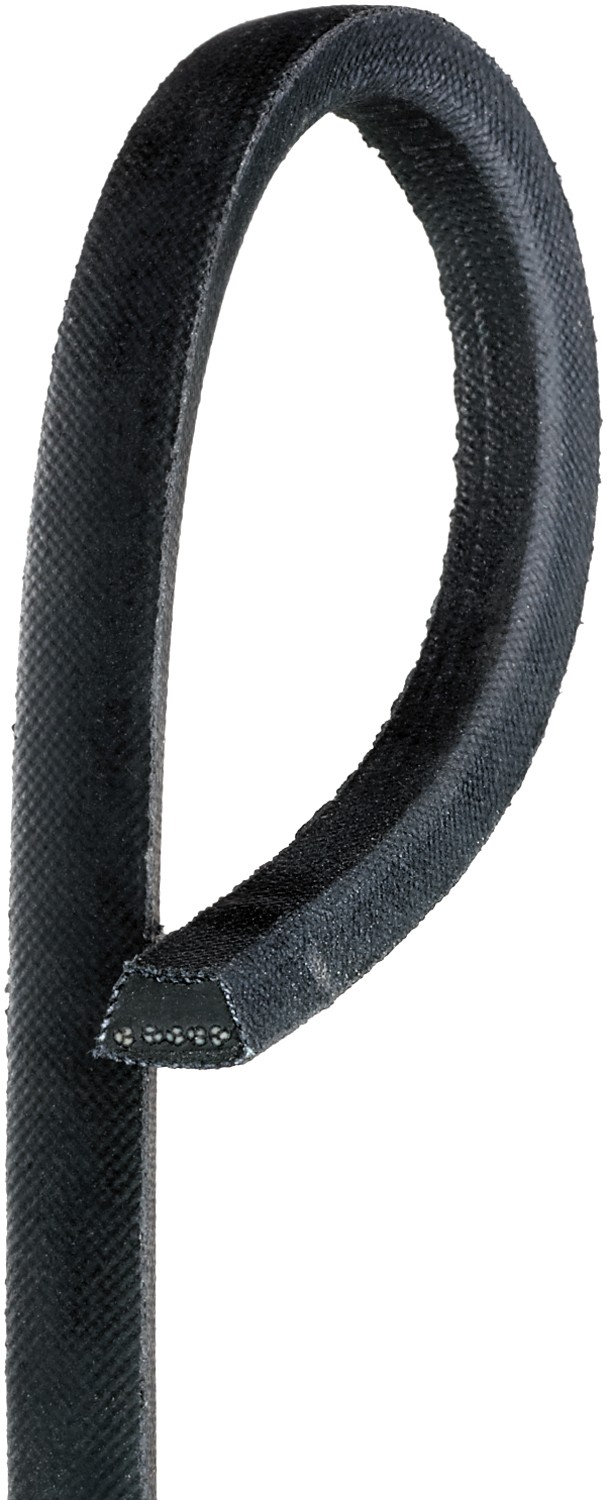

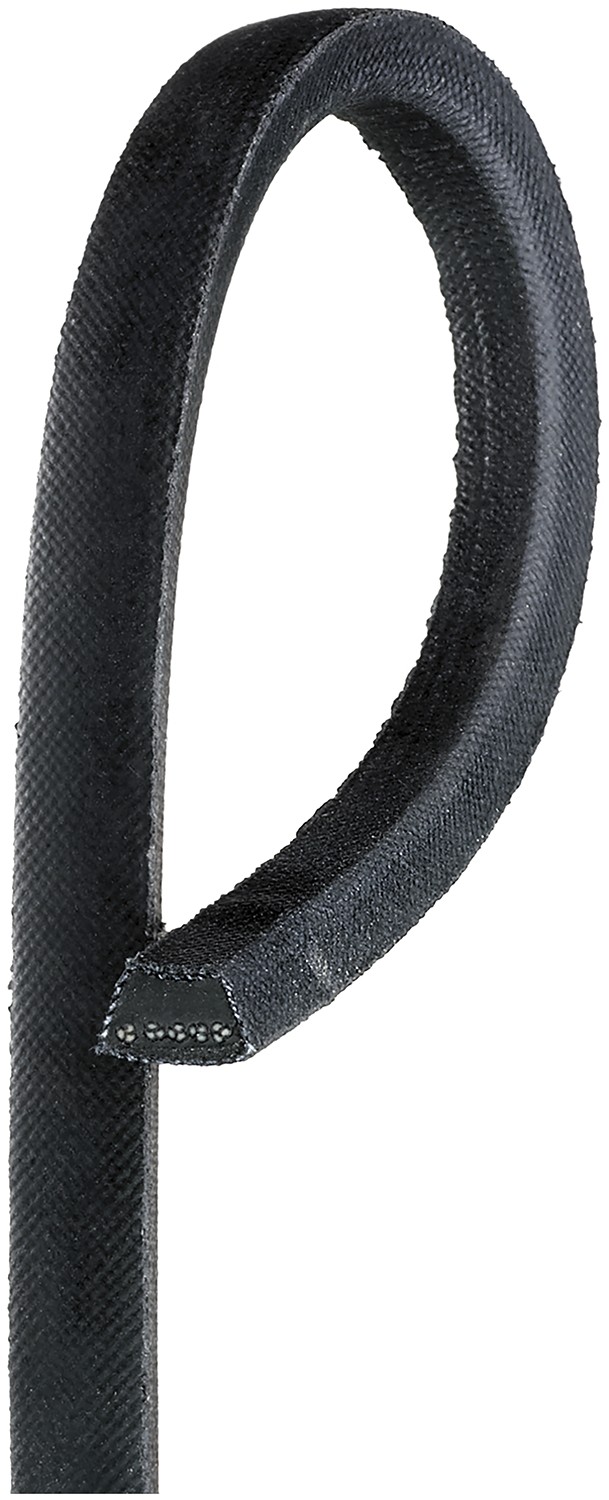

Gates 3410 Truflex FHP Low Horse-Power V-Belt

Gates 3410 Truflex FHP Low Horse-Power V-Belt

Features:

Flex-bonded cords are strongly forged to the belt body, resulting in equal load distribution, resistance to fatigue and shock loads and the absorption of bending stress without cord deterioration
Available in 2L (0), 3L (1), 4L (2) and 5L (3) cross-sections
Meets RMA oil and heat-resistant standards and static conductivity requirements
Runs with smooth, quiet operation

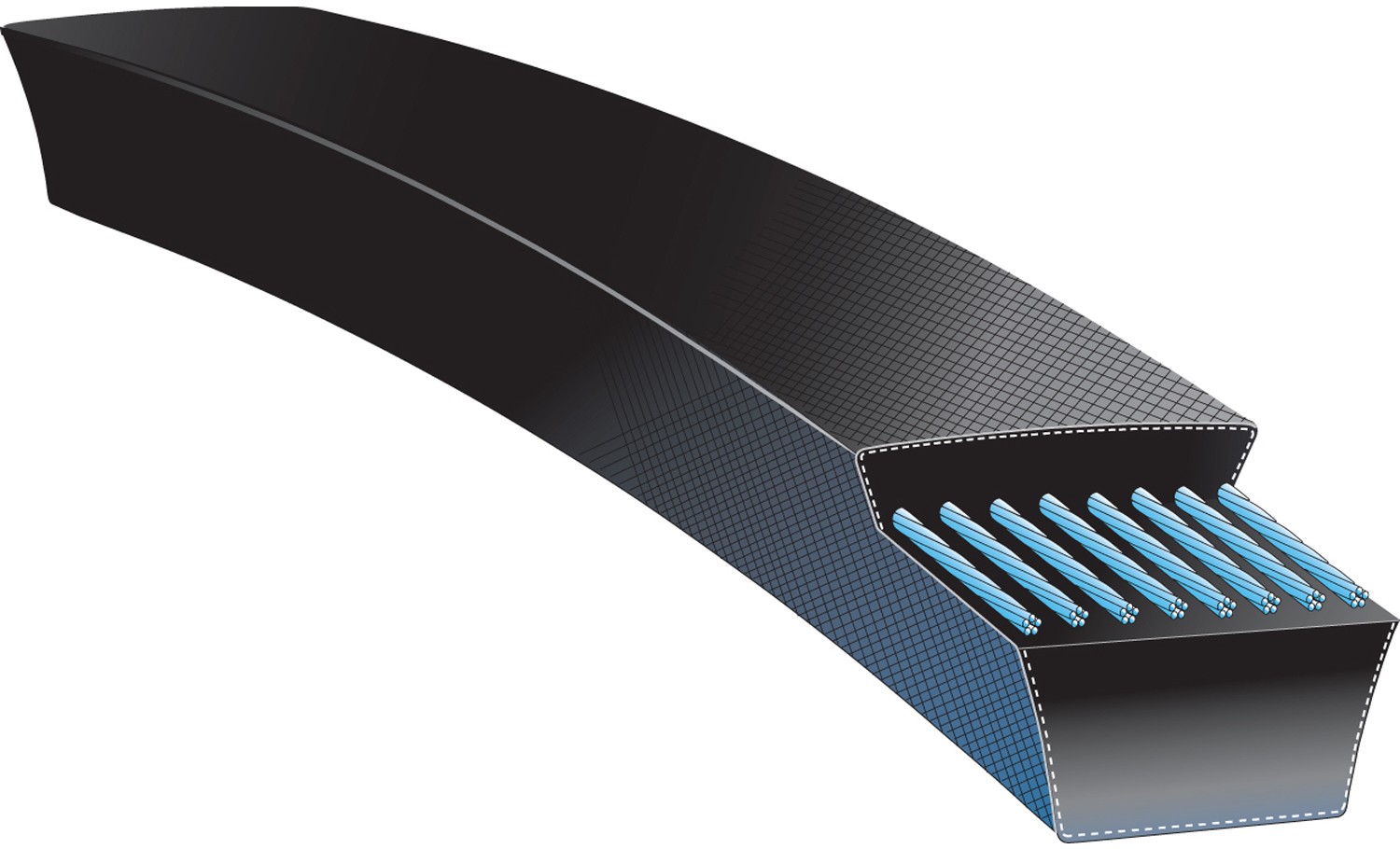

Proprietary Flex-Weave cover is a patented fabric construction, providing extended protection to the belt core from oil, contaminants and heat for longer belt life
Do not use on applications where FHP medium horsepower V-belts are recommended

Truflex V-Belts are engineered with superior length stability for minimal take-up requirements, perfect for all industrial, light-duty applications, including fractional horsepower (FHP) motors and applications using backside idlers.

Attributes:

Type	FHP Low Horse-Power V-Belt
158	Wrapped
Outside Circumference	1041
9837	No
Effective Length	1040
Top Width	0.66
Section	Polyester
Belt Material	EPDM
Cross Section Designation	5L
Top Width	17
Strand Quantity	1
Outside Circumference	41
Angle	36
Effective Length	40.95
