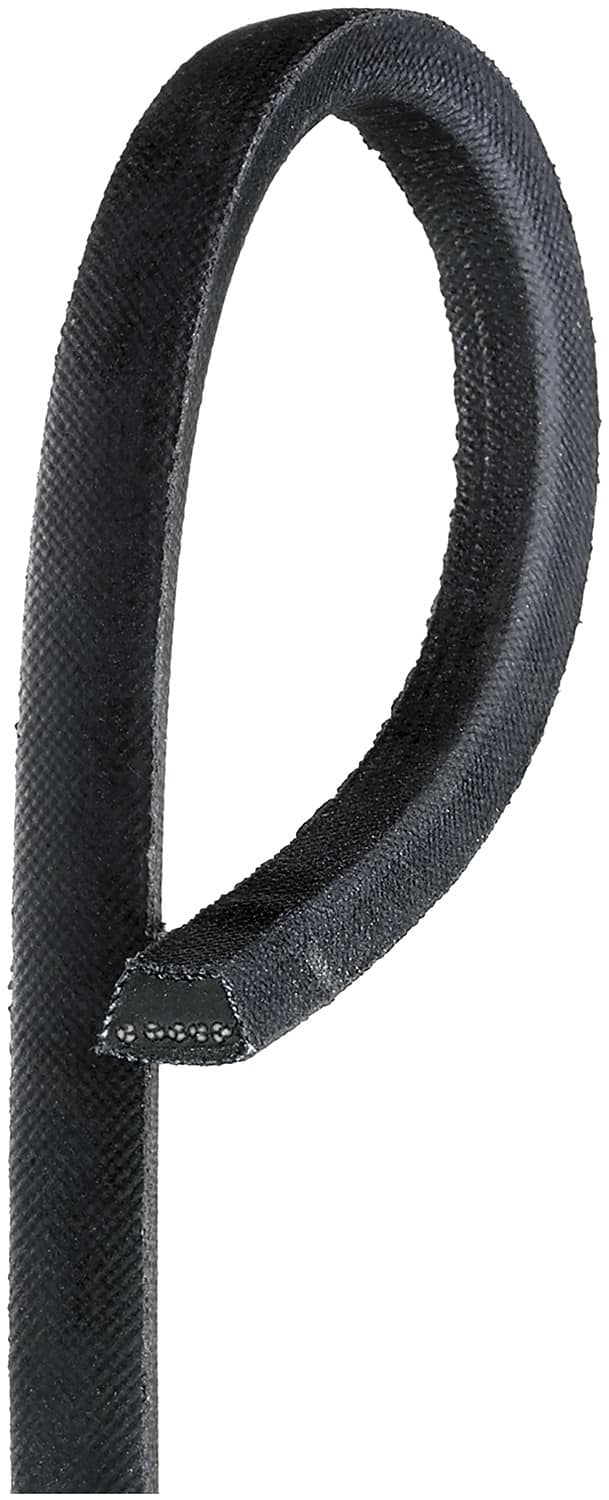

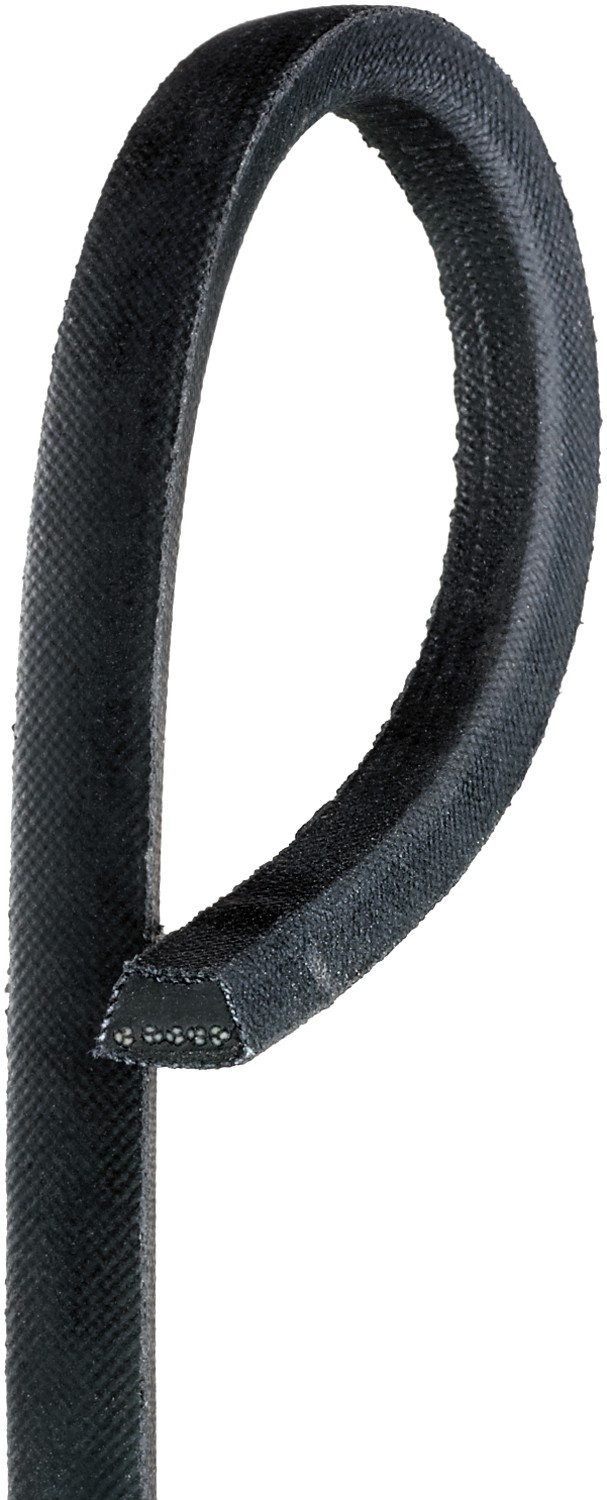

Gates 3430 Truflex FHP Low Horse-Power V-Belt

Gates 3430 Truflex FHP Low Horse-Power V-Belt

Features:

Available in 2L (0), 3L (1), 4L (2) and 5L (3) cross-sections

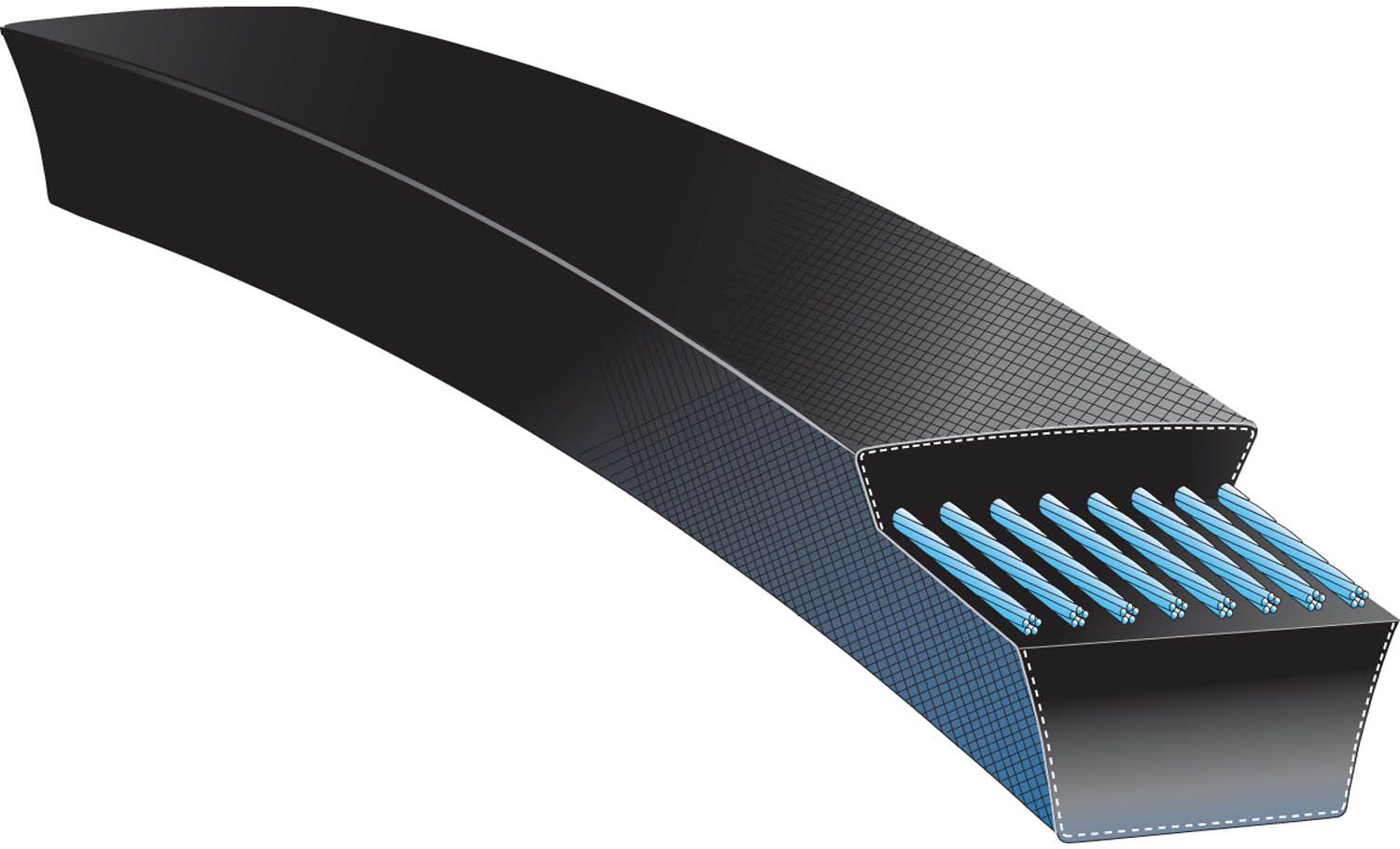

Flex-bonded cords are strongly forged to the belt body, resulting in equal load distribution, resistance to fatigue and shock loads and the absorption of bending stress without cord deterioration
Proprietary Flex-Weave cover is a patented fabric construction, providing extended protection to the belt core from oil, contaminants and heat for longer belt life
Runs with smooth, quiet operation
Meets RMA oil and heat-resistant standards and static conductivity requirements
Do not use on applications where FHP medium horsepower V-belts are recommended

Truflex V-Belts are engineered with superior length stability for minimal take-up requirements, perfect for all industrial, light-duty applications, including fractional horsepower (FHP) motors and applications using backside idlers.

Attributes:

Outside Circumference	43
Top Width	0.66
Top Width	17
Cross Section Designation	5L
Strand Quantity	1
9837	No
Type	FHP Low Horse-Power V-Belt
Effective Length	42.95
Outside Circumference	1092
Angle	36
Section	Polyester
158	Wrapped
Effective Length	1091
Belt Material	EPDM
