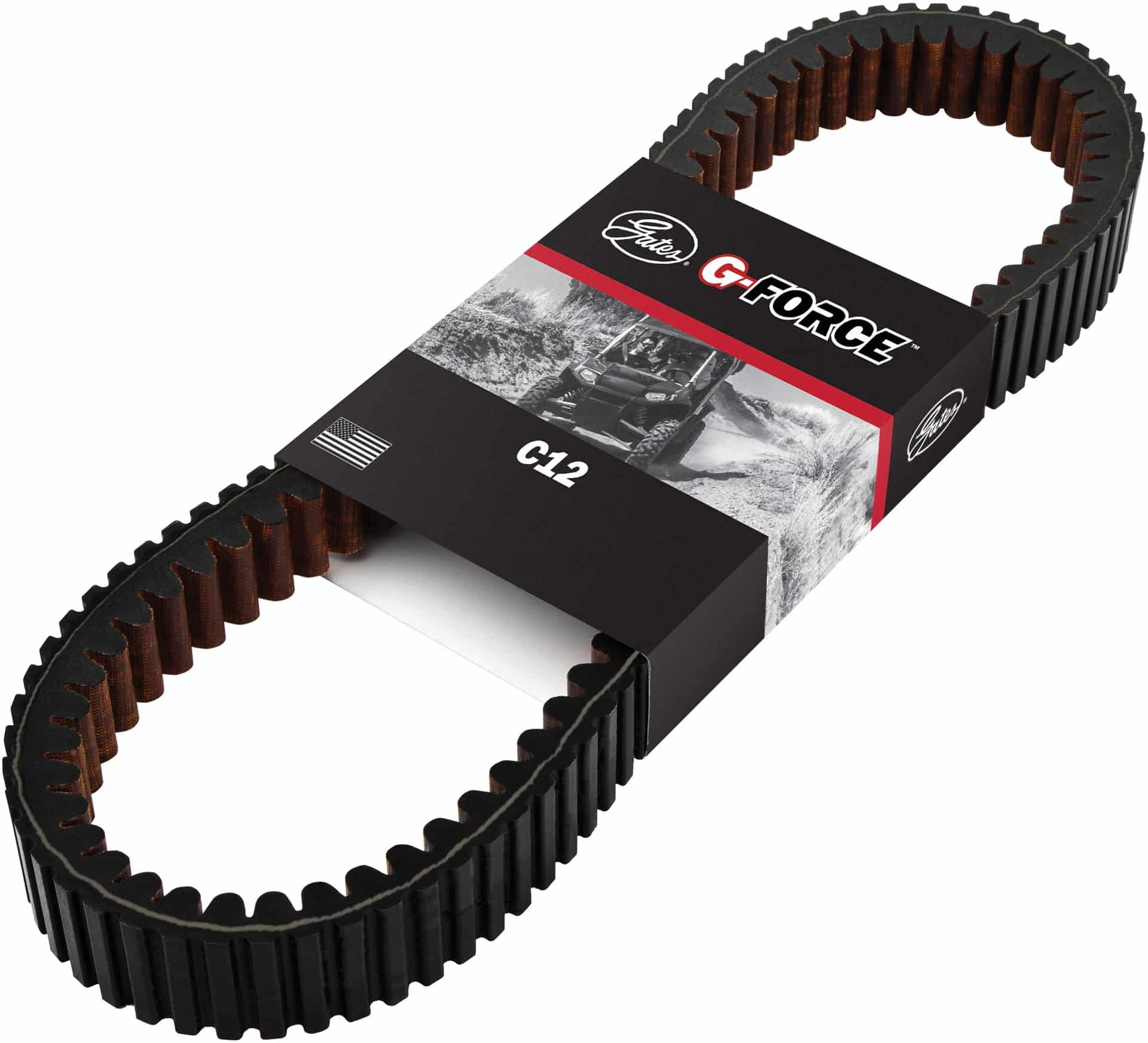

Gates 38C4494 G-Force C12 Continuously Variable Transmission (CVT) Belt

Gates 38C4494 G-Force C12 Continuously Variable Transmission (CVT) Belt

Features:

Tested under extreme conditions in controlled environments as well as on race vehicles
Advanced carbon cord results in high modulus with extraordinary strength for faster acceleration, improved throttle response and consistent shifting performance
Trapezoidal top cog with rounded bottom cog provides excellent flexibility and efficiency
Aramid fiber-loaded elastomer compound for durability and optimized performance
Maintains peak power throughout the shift curve

G-Force C12 belts were the first CVT belt utilizing carbon tensile cord for high modulus and extraordinary strength. This high-performance Neoprene and aramid fiber-loaded rubber belt oï¬€ers Original Equipment technology. The advanced carbon tensile cords are surrounded by specially formulated adhesion gum to reduce edge cord pullout and increase belt life.

Attributes:

Section	Carbon
Top Width	1.405
Top Width	36
Outside Circumference	1172
Outside Circumference	46.111
Angle	26
Cross Section Designation	RVS-R
158	Double Notched
9837	Yes
Belt Material	Chloroprene
4747	Yes
Grade Type	OE Improved
Type	Power Sport High Performance CVT Belt
Color	Black
