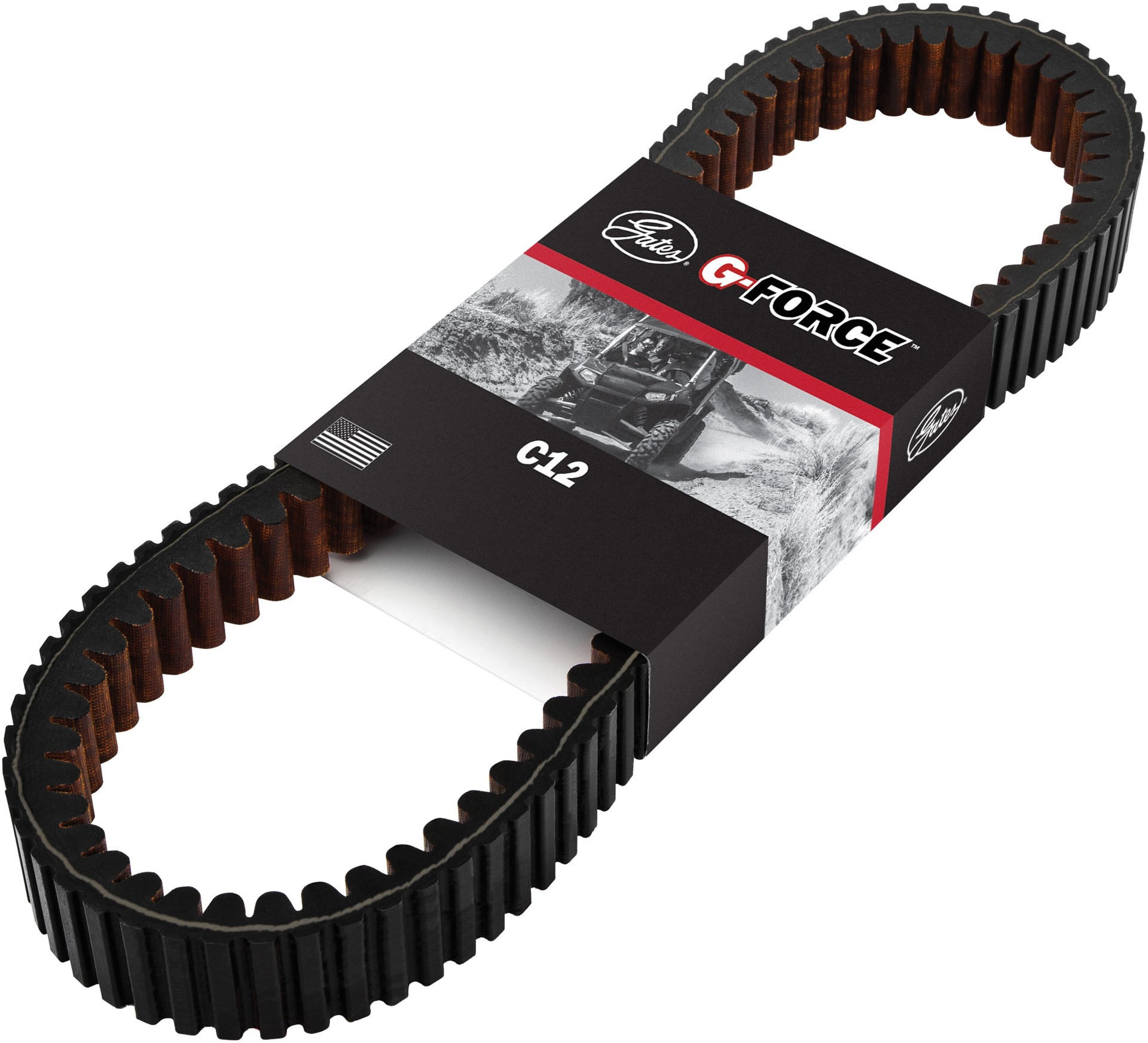

Gates 49C4266 G-Force C12 Continuously Variable Transmission (CVT) Belt

Gates 49C4266 G-Force C12 Continuously Variable Transmission (CVT) Belt

Features:

Advanced carbon cord results in high modulus with extraordinary strength for faster acceleration, improved throttle response and consistent shifting performance
Trapezoidal top cog with rounded bottom cog provides excellent flexibility and efficiency
Aramid fiber-loaded elastomer compound for durability and optimized performance
Maintains peak power throughout the shift curve
Tested under extreme conditions in controlled environments as well as on race vehicles

G-Force C12 belts were the first CVT belt utilizing carbon tensile cord for high modulus and extraordinary strength. This high-performance Neoprene and aramid fiber-loaded rubber belt oï¬€ers Original Equipment technology. The advanced carbon tensile cords are surrounded by specially formulated adhesion gum to reduce edge cord pullout and increase belt life.

Attributes:

Type	Power Sport High Performance CVT Belt
Top Width	1.5
Cross Section Designation	RVS-R
Grade Type	OE Improved
9837	Yes
Angle	26
Outside Circumference	43.875
Outside Circumference	1114
Section	Carbon
4747	Yes
Belt Material	Chloroprene
Top Width	38
Color	Black
158	Double Notched
