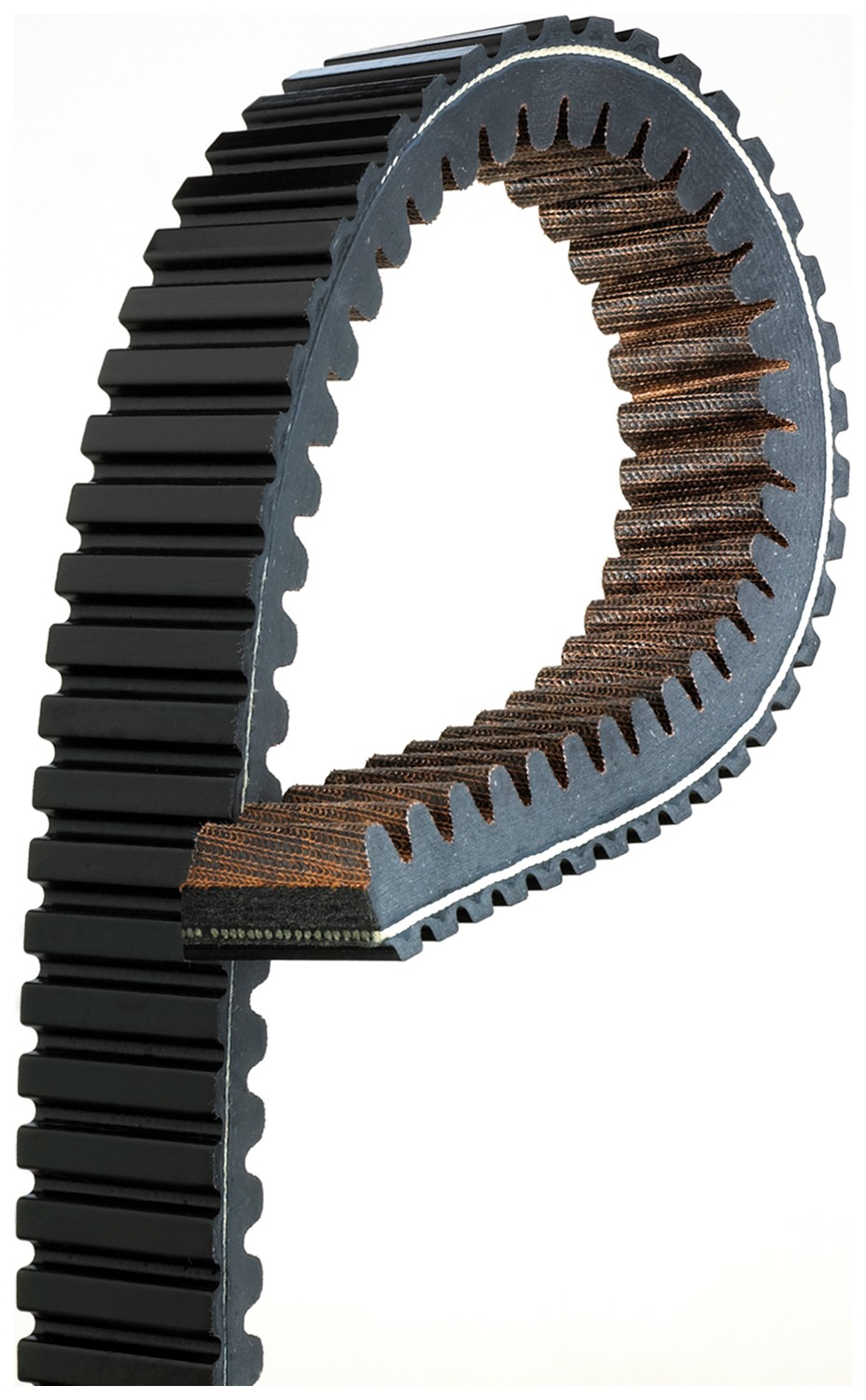

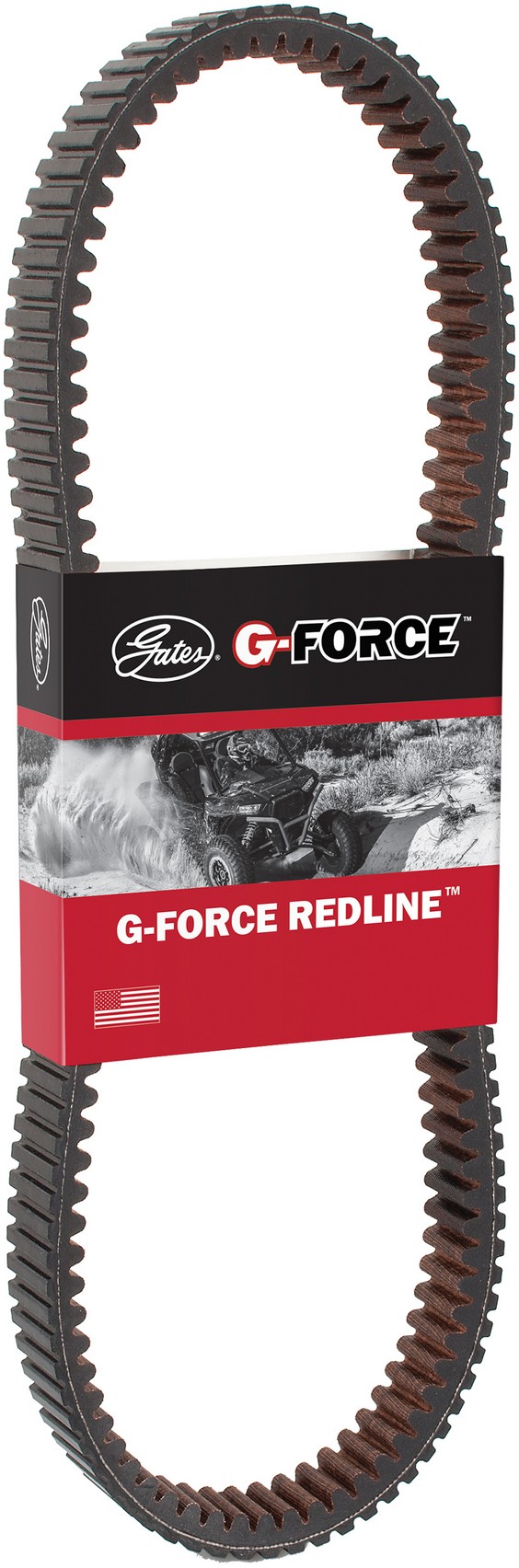

Gates 49R4266 G-Force Redline Continuously Variable Transmission (CVT) Belt

Gates 49R4266 G-Force Redline Continuously Variable Transmission (CVT) Belt

Features:

Tested under extreme conditions in controlled environments as well as on race vehicles
Optimized, patented Ethylene Elastomeric (EE) compound maximizes axial stiffness enabling belts to run at higher continuous torques or loads
Greater heat resistance and recovery, even under severe duty cycles
Improved durability, crack- and wear-resistant means a longer-lasting, higher-performance power transmission belt for the most demanding applications

Gates G-Force RedLine CVT Belts are the first of a new generation of Continuously Variable Transmission (CVT) belts. Gatesâ€™ innovative design results in better acceleration, higher top speeds, less speed ratio and energy loss in extreme off-road environments.

Attributes:

Color	Black
Thickness	15.9
Grade Type	OE Improved
Section	Aramid
Outside Circumference	1114
Top Width	38
Top Width	1.5
9829	36.9
9829	1.453
158	Double Notched
9830	42.66
Outside Circumference	43.875
Thickness	0.627
Angle	26
9837	Yes
Type	Power Sport Specialty High Performance CVT Belt
9830	1083
Cross Section Designation	RVS-R
4747	Yes
Belt Material	EPDM
