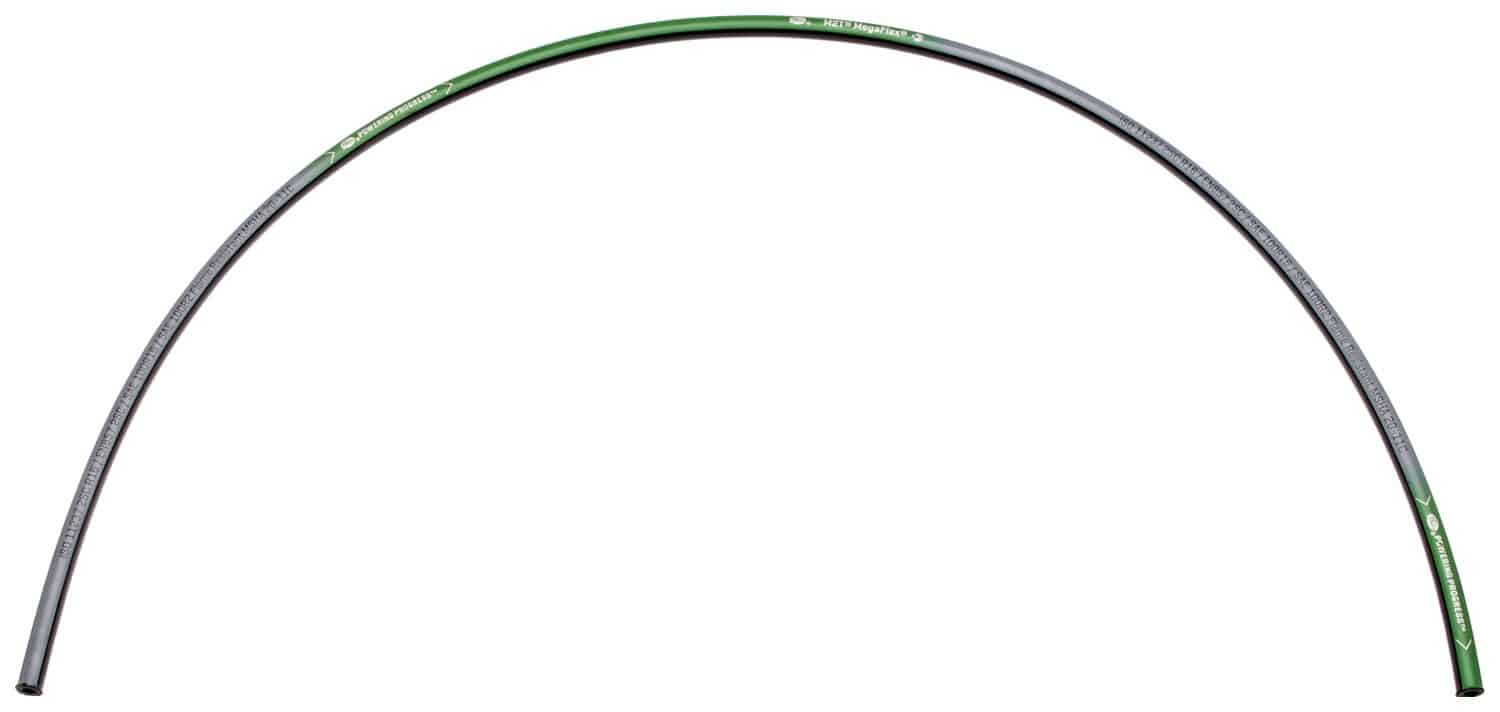

Gates 70260 M2T MegaFlex 2-Wire Braid Hose – SAE 100R16
Features:
- MegaTuff hose lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance
- XtraTuff hose lasts up to 25 times longer than standard hose
- Tested to industry-leading 600,000 impulse cycles
- Provides bend radius up to 1/3 of the SAE specification and greater flexibility for easier routing
- Temperature Range: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C)
- For use with GlobalSpiral Couplings [G20 Series], GlobalSpiral Plus Couplings [G22 Series], MegaCrimp Couplings [G25 Series], Stainless Steel Braid Couplings [G17 Series] and Stainless Steel Spiral Couplings [G18 Series]
- Meets Flame Resistance Acceptance Designation MSHA 2G
M2T hose is recommended for high-pressure hydraulic oil line applications. It has smaller exterior dimensions and significantly tighter bend radius than competitive R16 hoses, making it easy to route and install in tight areas. M2T hose is compatible with biodegradable hydraulic fluids like polyolester, polyglycols and vegetable oils as well as petroleum-based fluids.
Attributes:
| 761 | Nitrile – Type C |
| Outside Diameter | 0.7 |
| 9453 | 100R16 |
| 9856 | GlobalSpiral, MegaCrimp, Stainless Steel B |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| 9953 | 11237 2SC R16, 1436 2SN R2 |
| Inside Diameter | 0.375 |
| Temperature Rating | -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C) |
| 9954 | 857 2SC, 853 2SN |
| 9879 | 2 |
| Type | Hydraulic Hose |
| 9941 | 6 |
| 1261 | Two Braids, High-Tensile Steel Wire |
| Maximum Working Pressure | 5000 |
| 521 | 20000 |
| 730 | Type C2 – Flame, Oil, Abrasion & Weather Resistant |
| Hose Pressure Description | High Pressure |
| Industrial Description | 6M2TX100REEL |
| 1363 | Black |
| Product Type | M2T MegaFlex 2-Wire Braid Hose – SAE 100R16 |
| 59 | Synthetic Rubber – Modified Nitrile – Type C2 – Color Coded Layline |
| Length | 100 |
| Weight | 12.684 kg |
|---|
