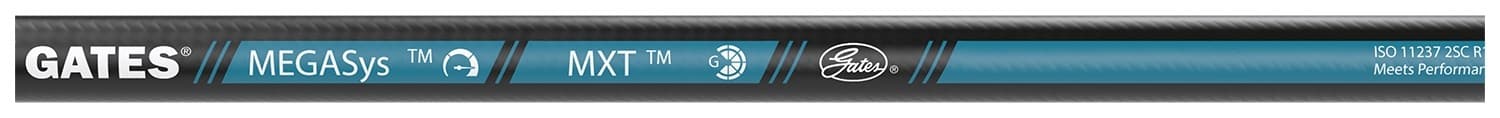

Gates 70289 MXT MegaSys Wire Braid Hose – SAE 100R16

Gates 70289 MXT MegaSys Wire Braid Hose – SAE 100R16

Features:

More flexible with up to 40 percent lower force-to-bend for faster and more ergonomic installation
For use with MegaCrimp Couplings [G25 Series]
Tested to industry-leading 600,000 impulse cycles
Provides bend radius up to 1/3 of the SAE specification and greater flexibility for easier routing
Meets Flame Resistance Acceptance Designation MSHA 2G
Temperature Range: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C)

MXT is recommended for high-pressure hydraulic oil lines and designed to address our customersâ€™ evolving application challenges. Using materials science and process innovation, combined with a patent-pending construction, Gates now offers a new hydraulic solution that is lighter, stronger, and more flexible.

Attributes:

Length	220
Maximum Working Pressure	3625
Tube Description	Black, Oil-Resistant, Synthetic Rubber
761	Nitrile
1261	One Braid, High-Tensile Steel Wire
59	Synthetic Rubber – Polychloroprene
9879	3
Product Type	MXT MegaSys Wire Braid Hose – SAE 100R16
521	14500
Industrial Description	10MXTXREEL
Type	Hydraulic Hose
9941	10
Inside Diameter	0.625
Outside Diameter	0.95
Hose Pressure Description	High Pressure
730	Flame, Oil & Weather Resistant
1363	Black
9856	MegaCrimp
9453	100R16
Temperature Rating	-40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C)
9954	N/A
9953	N/A
