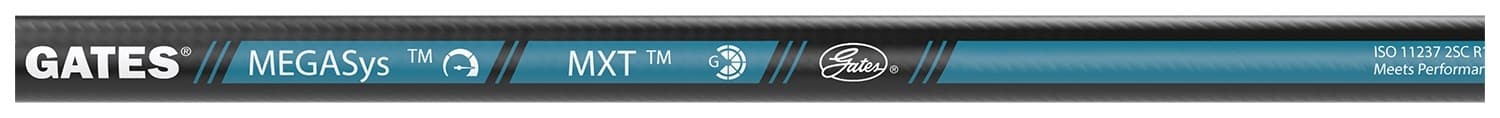

Gates 70355 MXT MegaSys Wire Braid Hose – SAE 100R16

Gates 70355 MXT MegaSys Wire Braid Hose – SAE 100R16

Features:

For use with MegaCrimp Couplings [G25 Series]
Meets Flame Resistance Acceptance Designation MSHA 2G
Provides bend radius up to 1/3 of the SAE specification and greater flexibility for easier routing
Temperature Range: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C)
More flexible with up to 40 percent lower force-to-bend for faster and more ergonomic installation
Tested to industry-leading 600,000 impulse cycles

MXT is recommended for high-pressure hydraulic oil lines and designed to address our customersâ€™ evolving application challenges. Using materials science and process innovation, combined with a patent-pending construction, Gates now offers a new hydraulic solution that is lighter, stronger, and more flexible.

Attributes:

Type	Hydraulic Hose
Hose Pressure Description	High Pressure
521	12500
9941	12
761	Nitrile
1261	One Braid, High-Tensile Steel Wire
59	Synthetic Rubber – Polychloroprene
730	Flame, Oil & Weather Resistant
1363	Black
9856	MegaCrimp
9453	100R16
9954	N/A
Product Type	MXT MegaSys Wire Braid Hose – SAE 100R16
Industrial Description	12MXTX50REEL
Inside Diameter	0.75
Length	50
9953	N/A
Outside Diameter	1.08
Temperature Rating	-40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C)
Maximum Working Pressure	3125
9879	4.75
Tube Description	Black, Oil-Resistant, Synthetic Rubber
