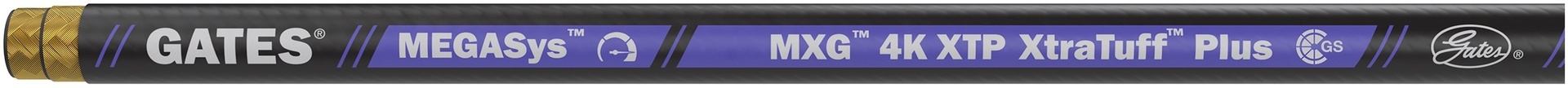

Gates 70517 MXG 4K Wire Braid Hose – SAE 100R12 – XtraTuff Plus Cover

Gates 70517 MXG 4K Wire Braid Hose – SAE 100R12 – XtraTuff Plus Cover

Features:

• Temperature Range: -40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C)
• For use with GlobalSpiral Couplings [G20 Series]
• Tested to industry-leading 1,000,000 impulse cycles
• XtraTuff Plus cover on MXG 4K hose comes standard and offers 25 times the abrasion resistance of standard covers, as well as superior ozone resistance
• Compact construction with excellent flexibility and lower force-to-bend for faster and more ergonomic installation (force-to-bend is 40 percent better and OD is 9 percent smaller)
• 30 percent lighter weight for easier handling and installation
• Exceeds all criteria of SAE 100R19 and ISO 18752 280DC; exceeds performance criteria of SAE 100R12, EN 856 R12, ISO 3862 R12 (Size -16 also exceeds EN 856 4SP performance requirements)
• MXG4K-XTP passes SAE J1754 Class A cool-down requirements with GlobalSpiral couplings and meets Flame Resistant Acceptance Designation MSHA 2G

Built with proprietary wire-braid process technology, MegaSys MXG 4K hose is lightweight, highly flexible, and qualified to ONE MILLION impulse cycles — it’s a drop-in replacement for conventional spiral hoses. Using material science advancements, design expertise and processing technologies, we engineered a hydraulic hose that exceeds the performance of wire spiral constructions. This is done with the lower weight and flexibility driven by Gates wire-braid technology. Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum based fluids.

Attributes:
