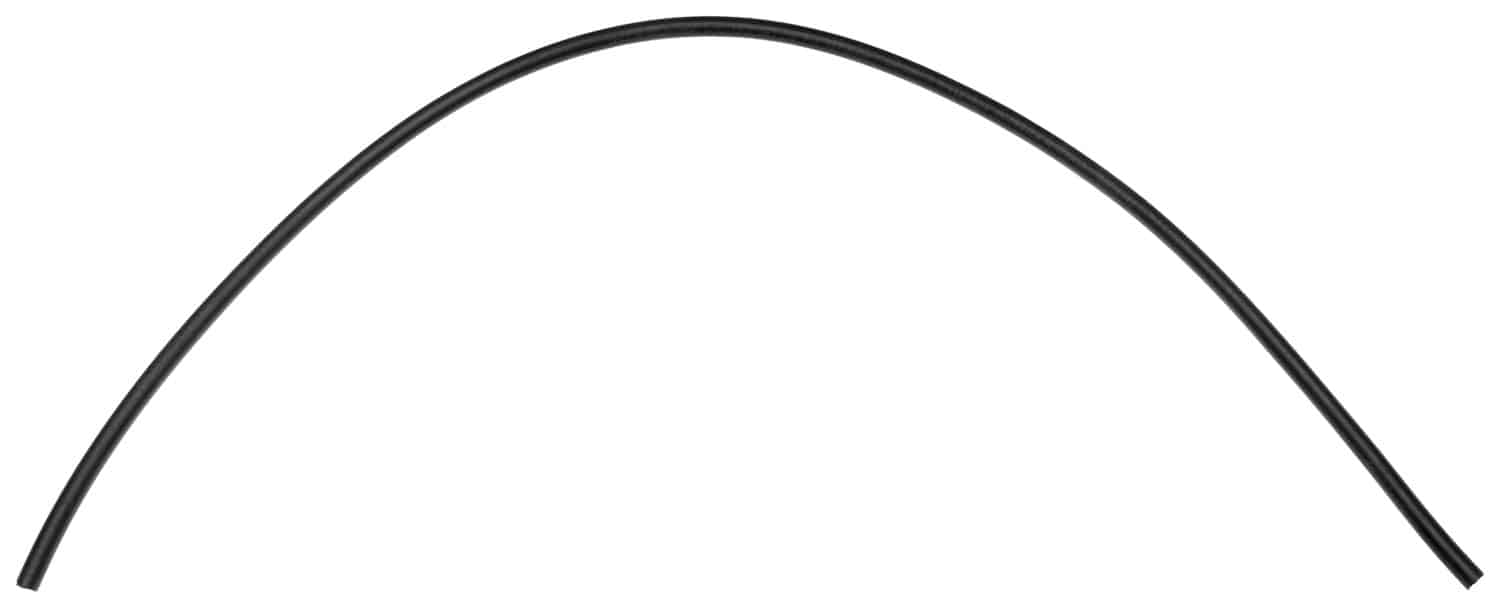

Gates 85084 RLA 1-Fiber Braid Return Line & Low Pressure Hose

Gates 85084 RLA 1-Fiber Braid Return Line & Low Pressure Hose

Features:

Meets Flame Resistance Acceptance Designation MSHA 2G
For use with GLX Couplings [G44 Series], MegaCrimp Couplings [G25 Series] and Power Crimp Couplings (-3 Only)
Temperature Range: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C); Air: +160 Deg. F (+ 71 Deg. C)
Meets SAE 30R2 performance requirements of both Type 1 and Type 2 for fuel and B20 constant contact up to 125 Deg. F biodiesel fuel transfer applications

RLA hose is recommended for low-pressure hydraulic oil return lines for general purpose water, glycol antifreeze solutions, conveying diesel fuel, gasoline or air.

Attributes:

Temperature Rating	-40 Deg. F to +212 Deg. F, to +160 Deg. F (Air)
1261	One Fiber Braid
9941	8
Product Type	RLA 1-Fiber Braid Return Line & Low Pressure Hose
Industrial Description	8RLA-30R2X25FT
Type	Hydraulic Hose
Maximum Working Pressure	200
Hose Pressure Description	Low Pressure
521	800
730	Type C2 – Flame, Oil & Abrasion Resistant
1363	Black
Outside Diameter	0.81
59	Synthetic Rubber – Modified Nitrile – Type C2
Tube Description	Black, Oil-Resistant, Synthetic Rubber
9835	20
9953	N/A
761	Nitrile – Type C
9954	N/A
Length	25
Inside Diameter	0.5
9453	30R2
9856	GLP, MegaCrimp
9879	5
