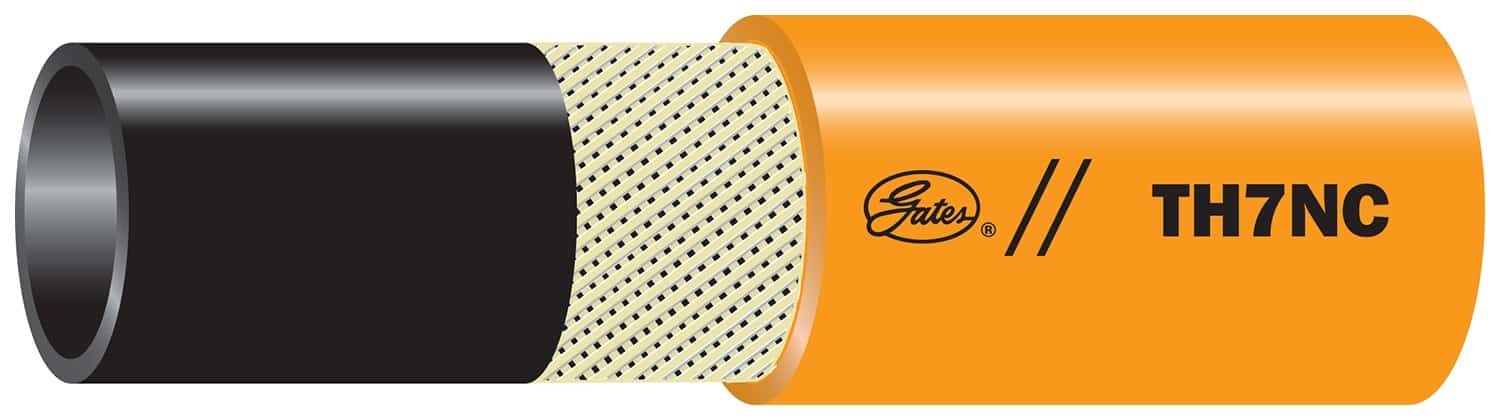

Gates 85411 TH7NC Non-Conductive Hydraulic Thermoplastic Hose – SAE 100R7

Gates 85411 TH7NC Non-Conductive Hydraulic Thermoplastic Hose – SAE 100R7

Features:

For use with MegaCrimp Couplings [G25 Series] and Swage PCTS Couplings [G51 Series]
Temperature Range: Petroleum and Synthetic Oils: -65 Deg. F to +200 Deg. F (-54 Deg. C to +93 Deg. C) constant; Water, Water/Oil Emulsions, Water Glycol: up to +158 Deg. F (+70 Deg. C)
Meets ANSI A92.2 for vehicle mounted aerial devices
Meets SAE 100R7 Electrical Conductivity Test. Maximum leakage should not exceed 50 microamperes when subjected to 75 kV/Ft. for five minutes
Orange color TH7NC meets SAE 100R7 non-conductivity requirements and meets or exceeds performance requirements of SAE 100R7 with a significantly tighter bend radius

TH7NC Non-Conductive hydraulic hose is recommended for petroleum and synthetic hydraulic fluids. Applications include power and telephone mobile equipment (cherry pickers), lubrication lines, blowout preventer control lines, hydraulic lifts and farm and construction machinery.

Attributes:

Product Type	TH7NC Non-Conductive Hydraulic Hose – SAE 100R7
Inside Diameter	0.375
9954	N/A
9953	N/A
9453	100R7
9856	MegaCrimp
1363	Orange
730	Resistant to Hydraulic Fluid, High Temperature, Aging & Weathering
59	Urethane – Non-Perforated for Applications Requiring Electrical Non-Conductivity
1261	Synthetic Fiber (Except -2)
761	Nylon
Tube Description	Nylon
9879	2.75
9941	6
Temperature Rating	-65 Deg. F to +200 Deg. F (Petroleum & Synthetic Oils), to +158 Deg. F (Water/Oil & Water Glycol)
521	9000
Hose Pressure Description	Medium Pressure
Type	Thermoplastic Hydraulic Hose
Industrial Description	6TH7NCX50FT
Length	50
Maximum Working Pressure	2250
Outside Diameter	0.64
