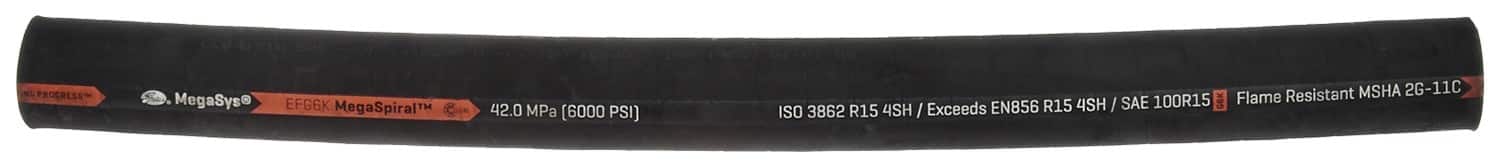

Gates 85467 EFG6K Spiral Wire Hose – SAE 100R15

Gates 85467 EFG6K Spiral Wire Hose – SAE 100R15

Features:

Temperature Range: -40 Deg F to +250 Deg F (-40 Deg C to +121 Deg C)
Meets Flame Resistance Acceptance Designation MSHA 2G
Recommended Couplings: GlobalSpiral Couplings, GlobalSpiral MAX Pressure Couplings, Stainless Steel S Couplings (-6 through -20)

Recommended for extremely high pressure, high impulse applications such as hydrostatic transmissions. EFG6K is designed to meet or exceed all requirements of SAE 100R15 specifications and performance requirements of EN 856 4SP (-6, -8, -10 and -12), EN 856 4SH (-12, -16, and -20), and ISO 3862 Type R15 (-6, -8, -10, -12, -16, -24). Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluids.

Attributes:

Industrial Description	10EFG6KX25FT
Length	25
761	Nitrile – Type C
521	24000
Hose Pressure Description	Extremely High Pressure
Tube Description	Black, Oil-Resistant, Synthetic Rubber
730	Type A – Flame & Oil Resistant
9879	4
9453	100R15
Type	Hydraulic Hose
1363	Black
Outside Diameter	1.09
Maximum Working Pressure	6000
Product Type	EFG6K Spiral Wire Hose – SAE 100R15
Temperature Rating	-40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C)
9941	10
Inside Diameter	0.625
9856	GlobalSpiral, Stainless Steel S
9953	3862 Type R15
59	Synthetic Rubber – Polychloroprene – Type A – Color Coded Layline
9954	856 4SP
1261	Four Alternating Layers of Spiraled, High-Tensile Steel
