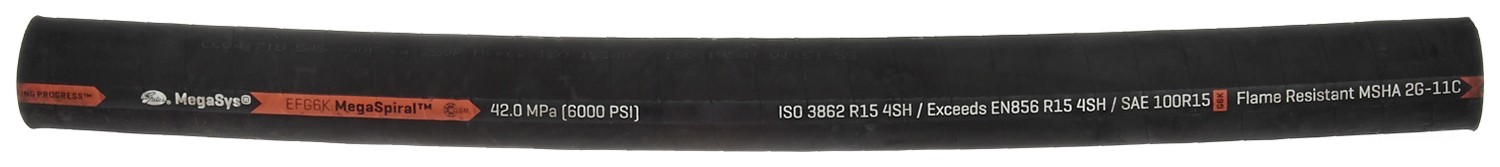

Gates 85468 EFG6K Spiral Wire Hose - SAE 100R15

Gates 85468 EFG6K Spiral Wire Hose – SAE 100R15

Features:

Temperature Range: -40 Deg F to +250 Deg F (-40 Deg C to +121 Deg C)
Recommended Couplings: GlobalSpiral Couplings, GlobalSpiral MAX Pressure Couplings, Stainless Steel S Couplings (-6 through -20)
Meets Flame Resistance Acceptance Designation MSHA 2G

Recommended for extremely high pressure, high impulse applications such as hydrostatic transmissions. EFG6K is designed to meet or exceed all requirements of SAE 100R15 specifications and performance requirements of EN 856 4SP (-6, -8, -10 and -12), EN 856 4SH (-12, -16, and -20), and ISO 3862 Type R15 (-6, -8, -10, -12, -16, -24). Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluids.

Attributes:

Length	25 FT
Inside Diameter	.75 IN
761	Nitrile – Type C
Tube Description	Black, Oil-Resistant, Synthetic Rubber
9941	12
Hose Pressure Description	Extremely High Pressure
Type	Hydraulic Hose
Industrial Description	12EFG6KX25FT
Product Type	EFG6K Spiral Wire Hose – SAE 100R15
9879	4.7 IN
Temperature Rating	-40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C)
9953	3862 Type R15
9954	856 4SP
9453	100R15
9856	GlobalSpiral, Stainless Steel S
Outside Diameter	1.24 IN
1363	Black
730	Type A – Flame & Oil Resistant
Maximum Working Pressure	6000 PS
Burst Pressure	24000 PS
59	Synthetic Rubber – Polychloroprene – Type A – Color Coded Layline
1261	Four Alternating Layers of Spiraled, High-Tensile Steel
