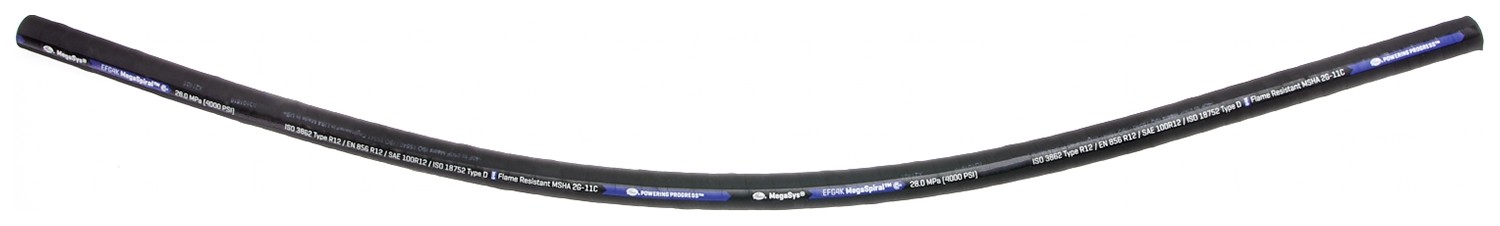

Gates 85478 EFG4K Spiral Wire Hose - SAE 100R12

Gates 85478 EFG4K Spiral Wire Hose – SAE 100R12

Features:

Meets Flame Resistance Acceptance Designation MSHA 2G
Tested to industry-leading 1,000,000 impulse cycles
Temperature Range: -40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C)
MegaTuff hose lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance
For use with GlobalSpiral Couplings [G20 Series], GlobalSpiral One-Piece Couplings [G21 Series, -20 Only] and Stainless Steel Spiral Couplings [G18 Series]
XtraTuff hose lasts up to 25 times longer than standard hose

Recommended for very high-pressure, high-impulse applications, EFG4K hose is compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluids.

Attributes:

Inside Diameter	.5 IN
Length	25 FT
Burst Pressure	16000 PS
Hose Pressure Description	Very High Pressure
Maximum Working Pressure	4000 PS
9954	856 R12
9953	18752 Grade D, 3862 Type R12
9453	100R12
9856	GlobalSpiral, Stainless Steel S
1363	Black
730	Type A – Flame & Oil Resistant
59	Synthetic Rubber – Polychloroprene – Type A – Color Coded Layline
1261	Four Alternating Layers of Spiraled, High-Tensile Steel Wire
761	Nitrile – Type C
Tube Description	Black, Oil-Resistant, Synthetic Rubber
9941	8
Type	Hydraulic Hose
9879	3.5 IN
Product Type	EFG4K Spiral Wire Hose – SAE 100R12
Industrial Description	8EFG4KX25FT
Temperature Rating	-40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C)
Outside Diameter	.94 IN
