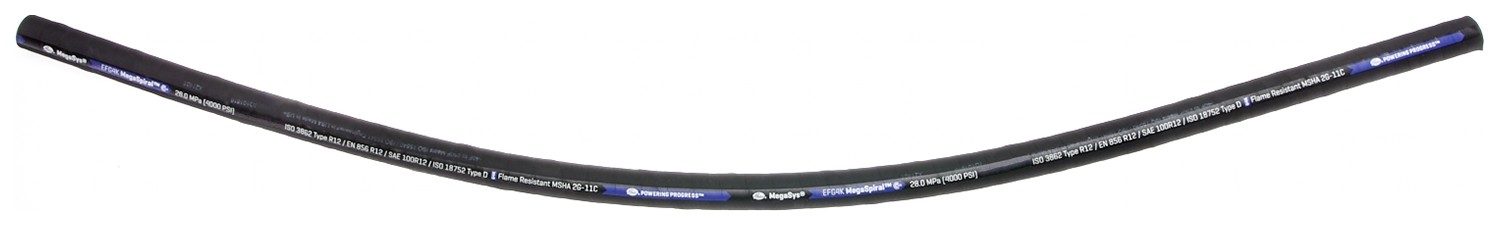

Gates 85479 EFG4K Spiral Wire Hose - SAE 100R12

Gates 85479 EFG4K Spiral Wire Hose – SAE 100R12

Features:

Temperature Range: -40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C)
For use with GlobalSpiral Couplings [G20 Series], GlobalSpiral One-Piece Couplings [G21 Series, -20 Only] and Stainless Steel Spiral Couplings [G18 Series]
Tested to industry-leading 1,000,000 impulse cycles
XtraTuff hose lasts up to 25 times longer than standard hose
Meets Flame Resistance Acceptance Designation MSHA 2G
MegaTuff hose lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance

Recommended for very high-pressure, high-impulse applications, EFG4K hose is compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluids.

Attributes:

Outside Diameter	1.09 IN
Industrial Description	10EFG4KX25FT
Product Type	EFG4K Spiral Wire Hose – SAE 100R12
Maximum Working Pressure	4000 PS
Burst Pressure	16000 PS
Length	25 FT
Inside Diameter	.625 IN
730	Type A – Flame & Oil Resistant
1363	Black
9856	GlobalSpiral, Stainless Steel S
9453	100R12
9954	856 R12
9953	18752 Grade D, 3862 Type R12
Type	Hydraulic Hose
9879	4 IN
Temperature Rating	-40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C)
Hose Pressure Description	Very High Pressure
9941	10
Tube Description	Black, Oil-Resistant, Synthetic Rubber
761	Nitrile – Type C
1261	Four Alternating Layers of Spiraled, High-Tensile Steel Wire
59	Synthetic Rubber – Polychloroprene – Type A – Color Coded Layline
