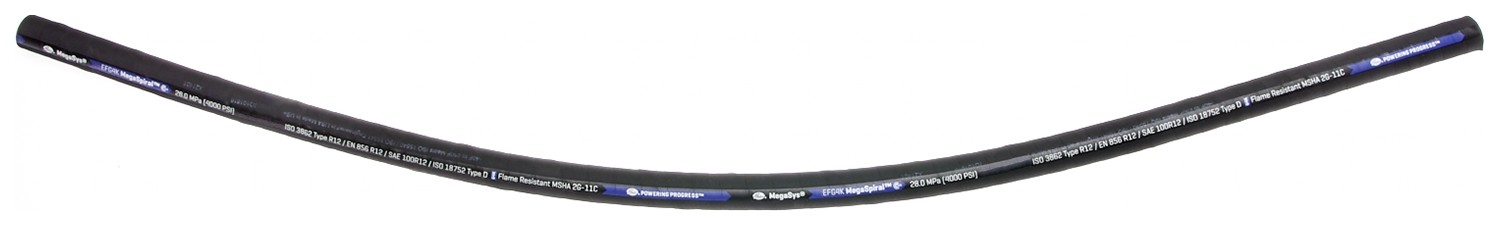

Gates 85492 EFG4K Spiral Wire Hose – SAE 100R12

Gates 85492 EFG4K Spiral Wire Hose – SAE 100R12

Features:

XtraTuff hose lasts up to 25 times longer than standard hose
MegaTuff hose lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance
Tested to industry-leading 1,000,000 impulse cycles
Temperature Range: -40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C)
For use with GlobalSpiral Couplings [G20 Series], GlobalSpiral One-Piece Couplings [G21 Series, -20 Only] and Stainless Steel Spiral Couplings [G18 Series]
Meets Flame Resistance Acceptance Designation MSHA 2G

Recommended for very high-pressure, high-impulse applications, EFG4K hose is compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluids.

Attributes:

Maximum Working Pressure	4000
1363	Black
Outside Diameter	0.94
730	Type A – Flame & Oil Resistant
9953	18752 Grade D, 3862 Type R12
Inside Diameter	0.5
59	Synthetic Rubber – Polychloroprene – Type A – Color Coded Layline
1261	Four Alternating Layers of Spiraled, High-Tensile Steel Wire
761	Nitrile – Type C
Tube Description	Black, Oil-Resistant, Synthetic Rubber
Temperature Rating	-40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C)
Length	50
9954	856 R12
9453	100R12
9856	GlobalSpiral, Stainless Steel S
9879	3.5
9941	8
521	16000
Hose Pressure Description	Very High Pressure
Type	Hydraulic Hose
Industrial Description	8EFG4KX50FT
Product Type	EFG4K Spiral Wire Hose – SAE 100R12
