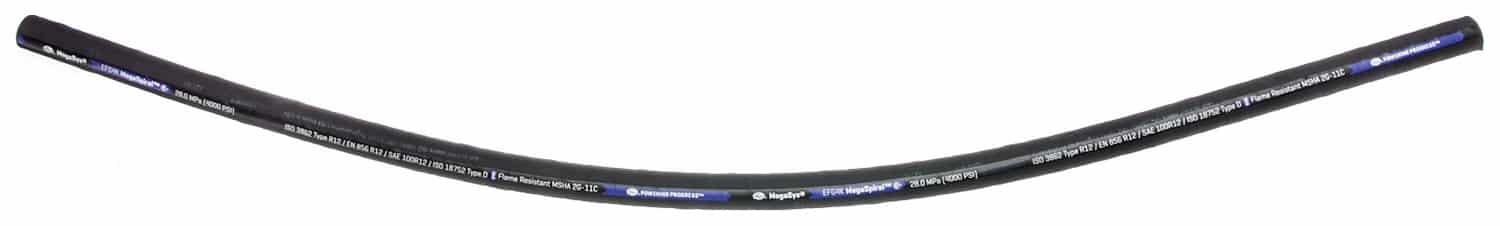

Gates 85494 EFG4K Spiral Wire Hose – SAE 100R12

Gates 85494 EFG4K Spiral Wire Hose – SAE 100R12

Features:

Meets Flame Resistance Acceptance Designation MSHA 2G
For use with GlobalSpiral Couplings [G20 Series], GlobalSpiral One-Piece Couplings [G21 Series, -20 Only] and Stainless Steel Spiral Couplings [G18 Series]
Tested to industry-leading 1,000,000 impulse cycles
XtraTuff hose lasts up to 25 times longer than standard hose
MegaTuff hose lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance
Temperature Range: -40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C)

Recommended for very high-pressure, high-impulse applications, EFG4K hose is compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluids.

Attributes:

Maximum Working Pressure	4000
9879	4.7
59	Synthetic Rubber – Polychloroprene – Type A – Color Coded Layline
730	Type A – Flame & Oil Resistant
1261	Four Alternating Layers of Spiraled, High-Tensile Steel Wire
1363	Black
9856	GlobalSpiral, Stainless Steel S
9453	100R12
9954	856 R12
9953	18752 Grade D, 3862 Type R12
9941	12
521	16000
Hose Pressure Description	Very High Pressure
Type	Hydraulic Hose
Industrial Description	12EFG4KX50FT
Product Type	EFG4K Spiral Wire Hose – SAE 100R12
Outside Diameter	1.21
761	Nitrile – Type C
Inside Diameter	0.75
Length	50
Tube Description	Black, Oil-Resistant, Synthetic Rubber
Temperature Rating	-40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C)
