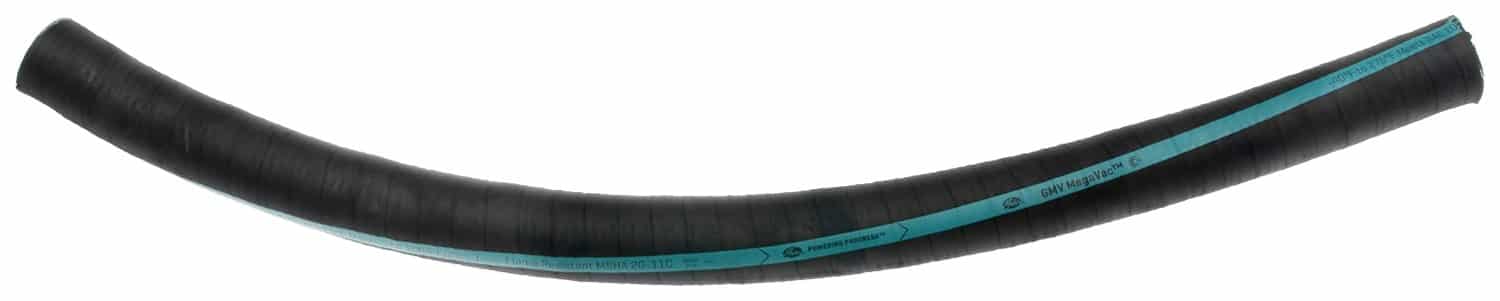

Gates 85577 GMV Global MegaVac Return Line & Suction Hose

Gates 85577 GMV Global MegaVac Return Line & Suction Hose

Features:

Uses a helical spiral-wire to prevent hose collapse under suction
Meets Flame Resistance Acceptance Designation MSHA 2G
For use with GL Couplings [G43 Series] and MegaCrimp Couplings [G25 Series] (Use clamp over beaded nipple)
Temperature Range: -40 Deg. F to +275 Deg. F (-40 Deg. C to +135 Deg. C)
Meets marine ABS and DNV-GL with use of HeatGuard high temp sleeve and meets AS and USCG agency specifications
Meets or exceeds requirements of SAE 100R4 and uses half the bend radius of SAE 100R4

GMV Return Line and Suction Hose is recommended for petroleum and water base hydraulic fluids in suction lines or in lowâ€“pressure return lines.

Attributes:

1363	Black
Type	Hydraulic Hose
Industrial Description	12GMVX25FT
Inside Diameter	0.75
Product Type	GMV Global MegaVac Return Line & Suction Hose
730	Type A – Flame, Oil & Abrasion Resistant
Length	25
59	Synthetic Rubber – Neoprene – Type A
9953	N/A
9954	N/A
1261	Double Spiral Braid w/ Helical Spiral-Wire
761	Nitrile – Type C
9453	100R4
Tube Description	Black, Synthetic Rubber
9835	25
9856	GL, MegaCrimp
Maximum Working Pressure	350
Outside Diameter	1.22
9879	2.5
9941	12
521	1400
Hose Pressure Description	Low Pressure
Temperature Rating	-40 Deg. F to +275 Deg. F (-40 Deg. C to +135 Deg. C)
