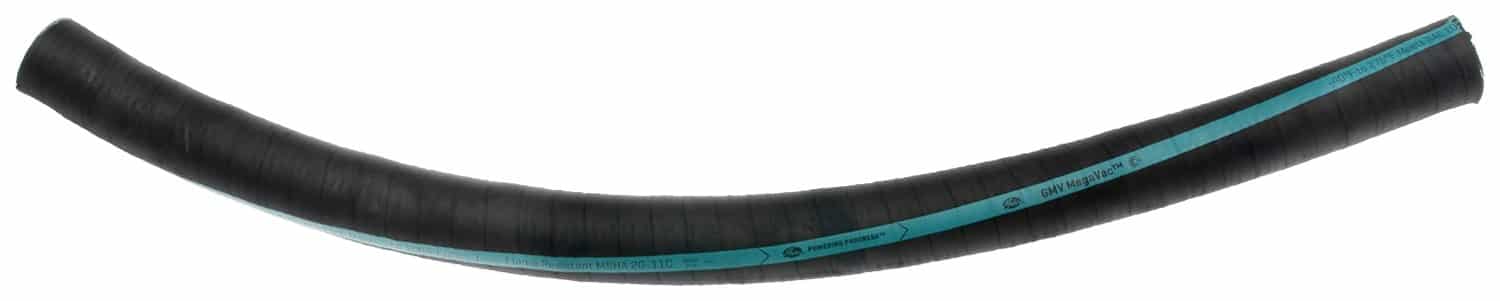

Gates 85578 GMV Global MegaVac Return Line & Suction Hose

Gates 85578 GMV Global MegaVac Return Line & Suction Hose

Features:

Uses a helical spiral-wire to prevent hose collapse under suction
For use with GL Couplings [G43 Series] and MegaCrimp Couplings [G25 Series] (Use clamp over beaded nipple)
Meets or exceeds requirements of SAE 100R4 and uses half the bend radius of SAE 100R4
Meets marine ABS and DNV-GL with use of HeatGuard high temp sleeve and meets AS and USCG agency specifications
Meets Flame Resistance Acceptance Designation MSHA 2G
Temperature Range: -40 Deg. F to +275 Deg. F (-40 Deg. C to +135 Deg. C)

GMV Return Line and Suction Hose is recommended for petroleum and water base hydraulic fluids in suction lines or in lowâ€“pressure return lines.

Attributes:

Maximum Working Pressure	300
9953	N/A
1363	Black
Length	25
9954	N/A
9856	GL, MegaCrimp
9453	100R4
Type	Hydraulic Hose
Industrial Description	16GMVX25FT
1261	Double Spiral Braid w/ Helical Spiral-Wire
Outside Diameter	1.45
Inside Diameter	1
Product Type	GMV Global MegaVac Return Line & Suction Hose
59	Synthetic Rubber – Neoprene – Type A
521	1200
761	Nitrile – Type C
9941	16
Tube Description	Black, Synthetic Rubber
730	Type A – Flame, Oil & Abrasion Resistant
9835	25
9879	3
Hose Pressure Description	Low Pressure
Temperature Rating	-40 Deg. F to +275 Deg. F (-40 Deg. C to +135 Deg. C)
