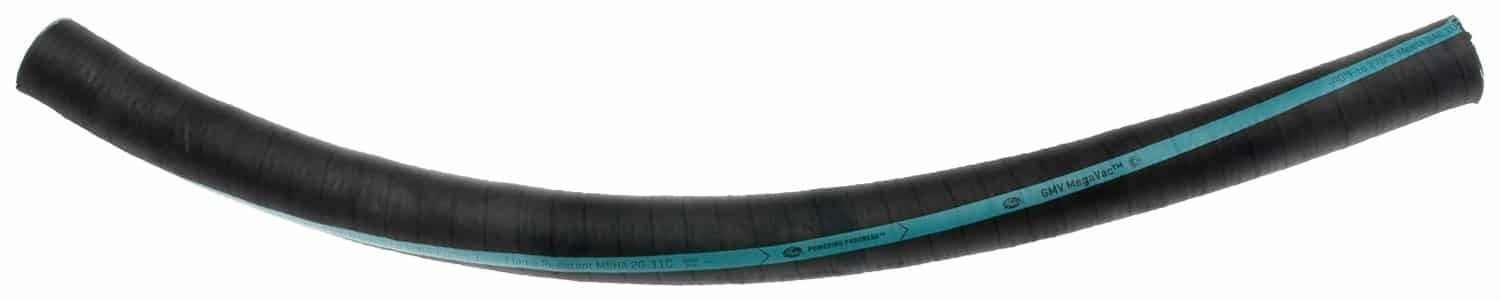

Gates 85579 GMV Global MegaVac Return Line & Suction Hose

Gates 85579 GMV Global MegaVac Return Line & Suction Hose

Features:

Meets marine ABS and DNV-GL with use of HeatGuard high temp sleeve and meets AS and USCG agency specifications
Temperature Range: -40 Deg. F to +275 Deg. F (-40 Deg. C to +135 Deg. C)
Meets or exceeds requirements of SAE 100R4 and uses half the bend radius of SAE 100R4
Uses a helical spiral-wire to prevent hose collapse under suction
For use with GL Couplings [G43 Series] and MegaCrimp Couplings [G25 Series] (Use clamp over beaded nipple)
Meets Flame Resistance Acceptance Designation MSHA 2G

GMV Return Line and Suction Hose is recommended for petroleum and water base hydraulic fluids in suction lines or in lowâ€“pressure return lines.

Attributes:

9941	20
1363	Black
761	Nitrile – Type C
730	Type A – Flame, Oil & Abrasion Resistant
Inside Diameter	1.25
1261	Double Spiral Braid w/ Helical Spiral-Wire
Type	Hydraulic Hose
Outside Diameter	1.76
Hose Pressure Description	Low Pressure
521	1000
9879	4
9954	N/A
59	Synthetic Rubber – Neoprene – Type A
Temperature Rating	-40 Deg. F to +275 Deg. F (-40 Deg. C to +135 Deg. C)
Length	25
9453	100R4
Product Type	GMV Global MegaVac Return Line & Suction Hose
Industrial Description	20GMVX25FT
9953	N/A
9856	GL, MegaCrimp
Maximum Working Pressure	250
Tube Description	Black, Synthetic Rubber
9835	25
