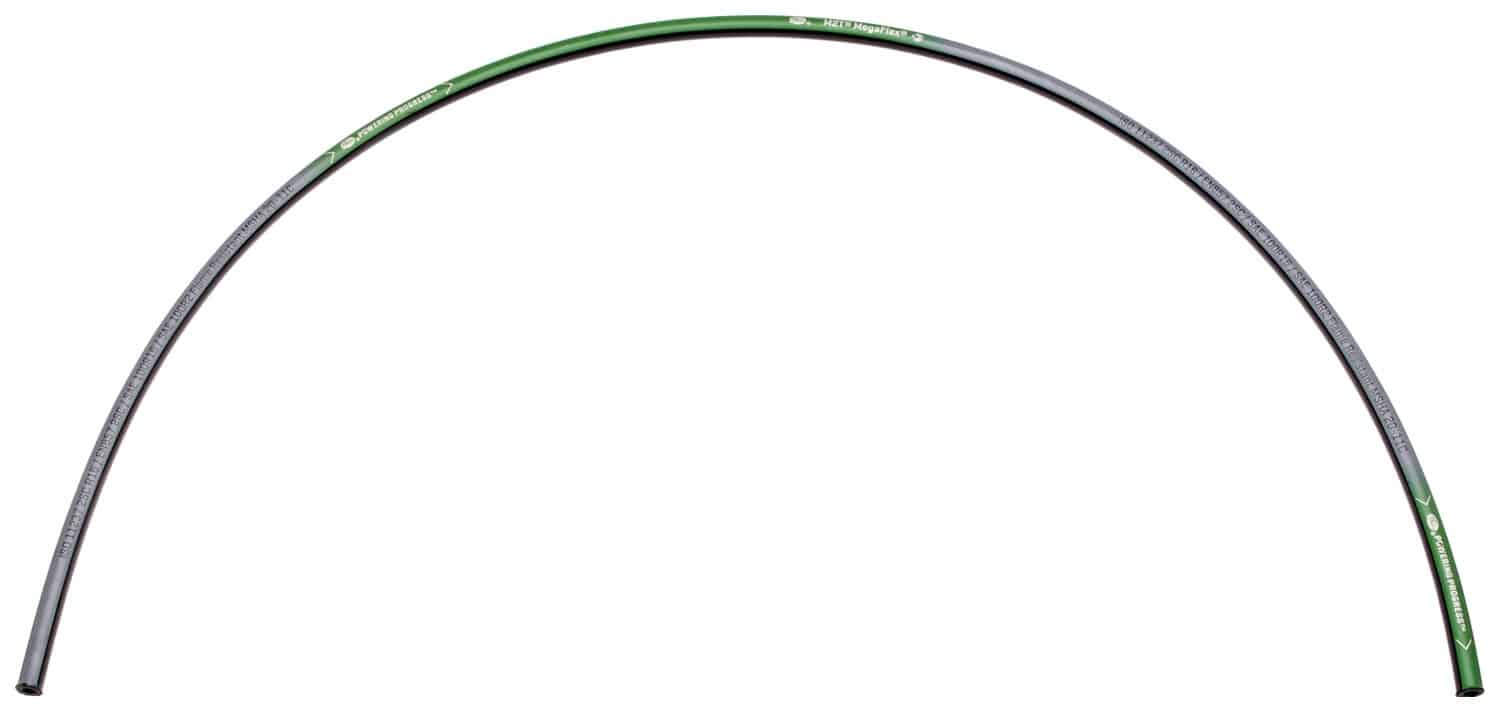

Gates 85602 M2T MegaFlex 2-Wire Braid Hose – SAE 100R16

Gates 85602 M2T MegaFlex 2-Wire Braid Hose – SAE 100R16

Features:

Tested to industry-leading 600,000 impulse cycles
Temperature Range: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C)
Provides bend radius up to 1/3 of the SAE specification and greater flexibility for easier routing
Meets Flame Resistance Acceptance Designation MSHA 2G
MegaTuff hose lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance
For use with GlobalSpiral Couplings [G20 Series], GlobalSpiral Plus Couplings [G22 Series], MegaCrimp Couplings [G25 Series], Stainless Steel Braid Couplings [G17 Series] and Stainless Steel Spiral Couplings [G18 Series]
XtraTuff hose lasts up to 25 times longer than standard hose

M2T hose is recommended for high-pressure hydraulic oil line applications. It has smaller exterior dimensions and significantly tighter bend radius than competitive R16 hoses, making it easy to route and install in tight areas. M2T hose is compatible with biodegradable hydraulic fluids like polyolester, polyglycols and vegetable oils as well as petroleum-based fluids.

Attributes:

761	Nitrile – Type C
9856	GlobalSpiral, MegaCrimp, Stainless Steel B
730	Type C2 – Flame, Oil, Abrasion & Weather Resistant
1363	Black
Inside Diameter	0.5
9953	11237 2SC R16, 1436 2SN R2
9941	8
Length	50
Temperature Rating	-40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C)
9453	100R16
Type	Hydraulic Hose
1261	Two Braids, High-Tensile Steel Wire
9954	857 2SC, 853 2SN
Maximum Working Pressure	4300
Hose Pressure Description	High Pressure
Tube Description	Black, Oil-Resistant, Synthetic Rubber
521	17200
Outside Diameter	0.82
9879	2.8
Product Type	M2T MegaFlex 2-Wire Braid Hose – SAE 100R16
59	Synthetic Rubber – Modified Nitrile – Type C2 – Color Coded Layline
Industrial Description	8M2TX50FT
