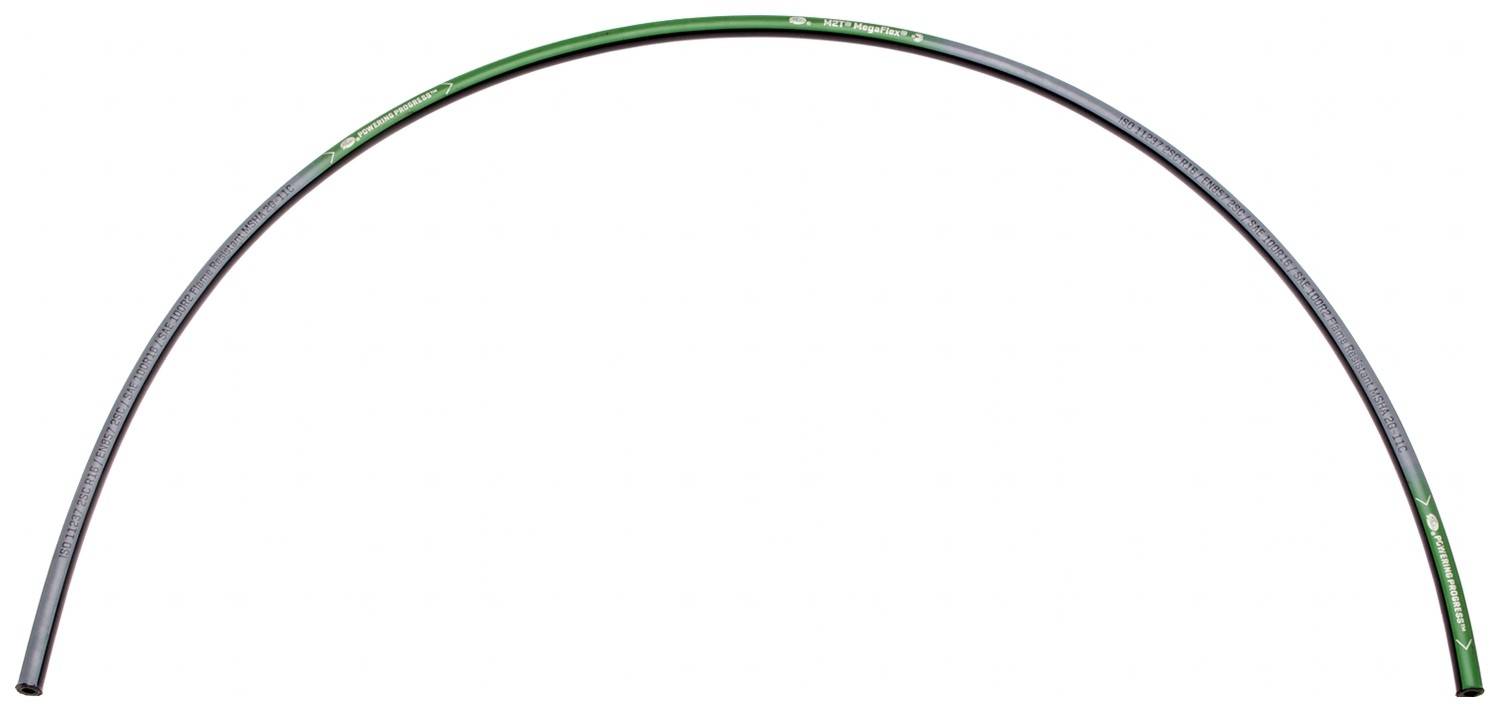

Gates 85604 M2T MegaFlex 2-Wire Braid Hose – SAE 100R16

Gates 85604 M2T MegaFlex 2-Wire Braid Hose – SAE 100R16

Features:

Temperature Range: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C)
For use with GlobalSpiral Couplings [G20 Series], GlobalSpiral Plus Couplings [G22 Series], MegaCrimp Couplings [G25 Series], Stainless Steel Braid Couplings [G17 Series] and Stainless Steel Spiral Couplings [G18 Series]
Provides bend radius up to 1/3 of the SAE specification and greater flexibility for easier routing
Tested to industry-leading 600,000 impulse cycles
XtraTuff hose lasts up to 25 times longer than standard hose
MegaTuff hose lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance
Meets Flame Resistance Acceptance Designation MSHA 2G

M2T hose is recommended for high-pressure hydraulic oil line applications. It has smaller exterior dimensions and significantly tighter bend radius than competitive R16 hoses, making it easy to route and install in tight areas. M2T hose is compatible with biodegradable hydraulic fluids like polyolester, polyglycols and vegetable oils as well as petroleum-based fluids.

Attributes:

Type	Hydraulic Hose
9941	12
521	14000
9879	3.8
Inside Diameter	0.75
Tube Description	Black, Oil-Resistant, Synthetic Rubber
761	Nitrile – Type C
Product Type	M2T MegaFlex 2-Wire Braid Hose – SAE 100R16
Temperature Rating	-40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C)
Length	50
1261	Two Braids, High-Tensile Steel Wire
59	Synthetic Rubber – Modified Nitrile – Type C2 – Color Coded Layline
730	Type C2 – Flame, Oil, Abrasion & Weather Resistant
Industrial Description	12M2TX50FT
1363	Black
9856	GlobalSpiral, MegaCrimp, Stainless Steel B
9453	100R16
Outside Diameter	1.11
Hose Pressure Description	High Pressure
9954	857 2SC, 853 2SN
9953	11237 2SC R16, 1436 2SN R2
Maximum Working Pressure	3500
