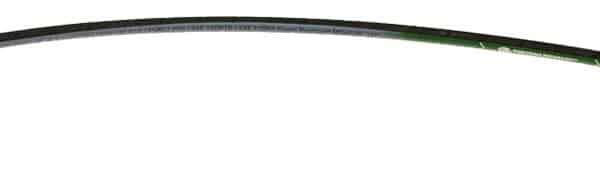

Gates 85629 Global M3K Mega3000 Hose – SAE 100R17

Gates 85629 Global M3K Mega3000 Hose – SAE 100R17

Features:

Temperature Range: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C)
For use with GlobalSpiral Couplings [G20 Series], MegaCrimp Couplings [G25 Series], Power Crimp Couplings (-3 Only) and Stainless Steel Braid Couplings [G17 Series]
Provides bend radius up to 1/3 of the SAE specification and greater flexibility for easier routing
Tested to industry-leading 600,000 impulse cycles
XtraTuff hose lasts up to 25 times longer than standard hose
MegaTuff hose lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance
Meets Flame Resistance Acceptance Designation MSHA 2G
Rated at 3250 PSI working pressure

Recommended for high-pressure hydraulic oil line applications, M3K hose is easy to route and install in extremely tight areas. M3K hose has smaller exterior dimensions and significantly tighter bend radius than other SAE 100R1 and 100R2 hose. Compatible with biodegradable hydraulic fluids like polyolester, polyglycols and vegetable oils as well as petroleum-based fluids.

Attributes:

Inside Diameter	1
Industrial Description	16M3KX50FT
Maximum Working Pressure	3250
Type	Hydraulic Hose
Hose Pressure Description	High Pressure
521	13000
9941	16
9879	4.5
Tube Description	Black, Oil-Resistant, Synthetic Rubber
761	Nitrile – Type C
1261	Two Braids, High-Tensile Steel Wire
59	Synthetic Rubber – Modified Nitrile – Type C2 – Color Coded Layline
730	Type C2 – Flame, Oil, Abrasion & Weather Resistant
1363	Black
Temperature Rating	-40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C)
9856	GlobalSpiral, MegaCrimp, Stainless Steel B
Outside Diameter	1.48
Product Type	Global M3K Mega3000 Hose – SAE 100R17
9453	100R17
9954	857 1SC
9953	18752 Grade B, 11237 R17
Length	50
