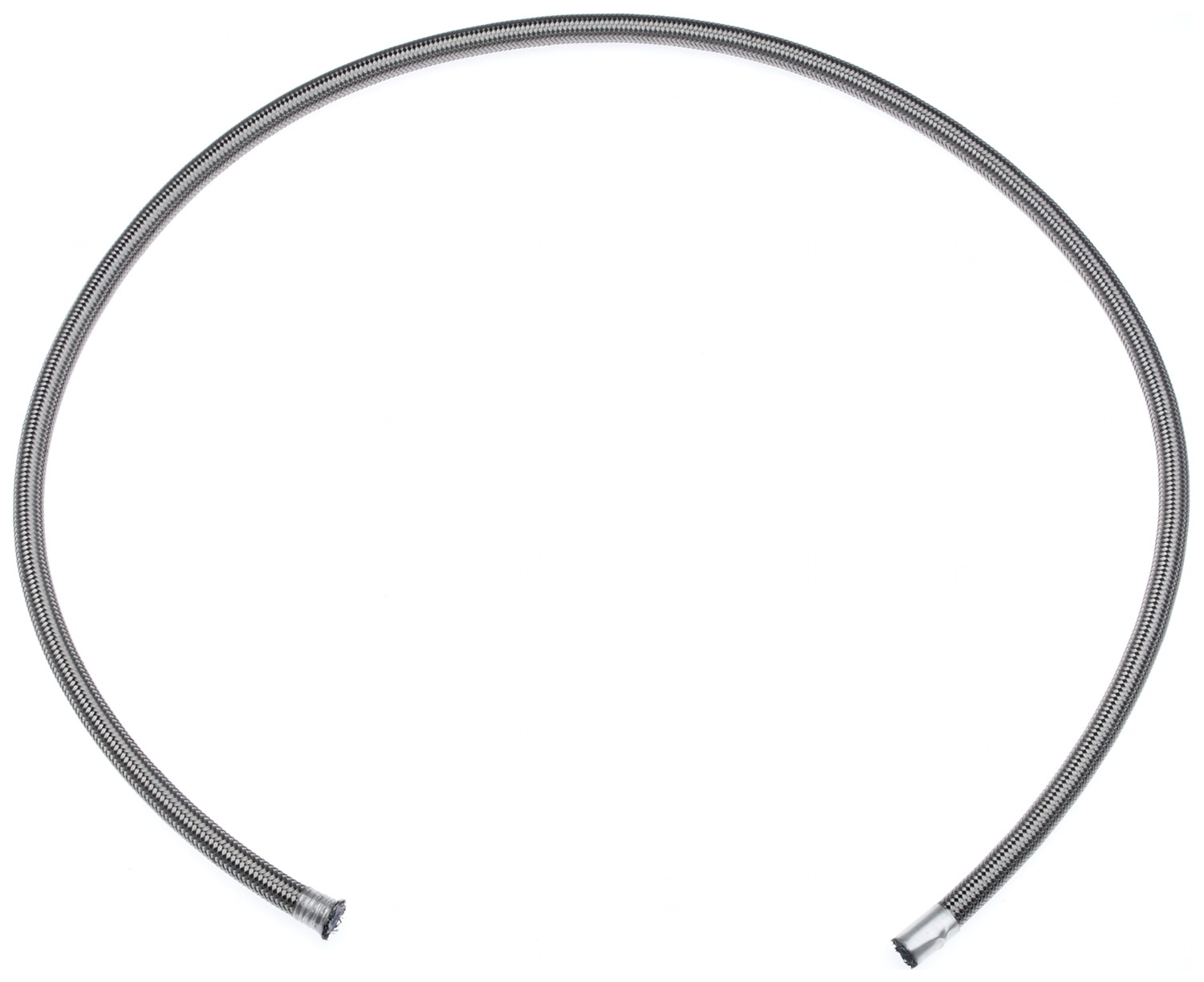

Gates 85700 C14 PTFE Hose – SAE100R14 Type A – Non-Conductive

Gates 85700 C14 PTFE Hose – SAE100R14 Type A – Non-Conductive

Features:

NOTE: Electrostatic Discharge: Many applications involving PTFE hose do not require a conductive tube
NOTE: But you must review the potential for electrostatic discharge for every application and be aware that static electricity can be hazardous
NOTE: In those cases where electrostatic discharge can occur, conductive PTFE hose with a conductive tube (Gates C14CT) is recommended
For use with Brass and Stainless Steel C14 Couplings [G40 Series]
Temperature Range: Dynamic: -65 Deg. F to +400 Deg. F (-54 Deg. C to +204 Deg. C); Static: -65 Deg. F to +450 Deg. F (-54 Deg. C to +232 Deg. C)

C14 PTFE hose is recommended for air compressor discharge, hot oil and fluids, hot and greasy environments.

Attributes:

9954	N/A
Maximum Working Pressure	1500
Inside Diameter	0.1875
Temperature Rating	-65 Deg. F to +400 Deg. F (Dynamic); -65 Deg. F to +450 Deg. F (Static)
Length	25
Product Type	C14 PTFE Hose – SAE 100R14 Type A – Non-Conductive
Industrial Description	4C14X25FT
Type	Fleet Application & Maintenance Hose
Hose Pressure Description	Medium Pressure
521	6000
9941	4
2053	3000
2053	1500
521	12000
521	6000
9879	2
9835	28
Tube Description	Non-Conductive White, Smooth Bore Polytetrafluoroethylene
761	PTFE – Type A
1261	One Braid of 300 Series Stainless Steel Wire – 304 Stainless
1363	Silver
59	300 Series Stainless Steel Wire
730	Braided
9856	C14 Couplings
9453	100R14
9953	N/A
Outside Diameter	0.31
