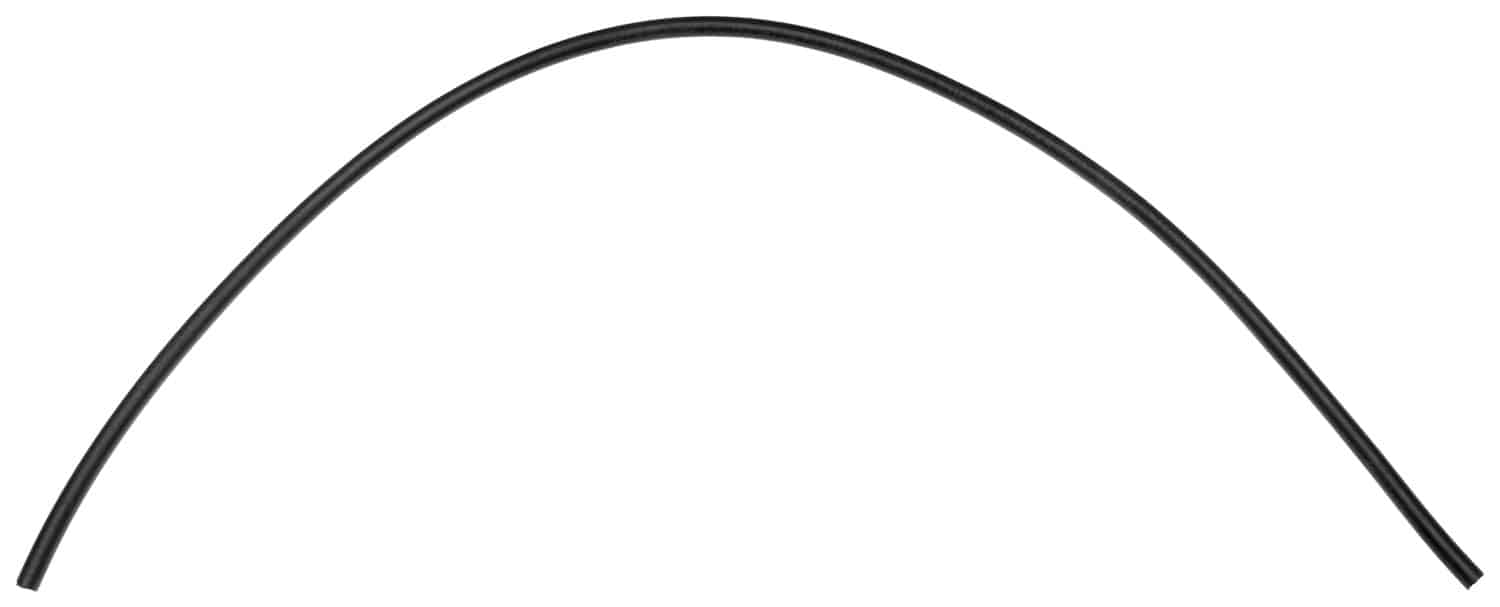

Gates 85947 RLA 1-Fiber Braid Return Line & Low Pressure Hose

Gates 85947 RLA 1-Fiber Braid Return Line & Low Pressure Hose

Features:

For use with GLX Couplings [G44 Series], MegaCrimp Couplings [G25 Series] and Power Crimp Couplings (-3 Only)
Meets SAE 30R2 performance requirements of both Type 1 and Type 2 for fuel and B20 constant contact up to 125 Deg. F biodiesel fuel transfer applications
Meets Flame Resistance Acceptance Designation MSHA 2G
Temperature Range: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C); Air: +160 Deg. F (+ 71 Deg. C)

RLA hose is recommended for low-pressure hydraulic oil return lines for general purpose water, glycol antifreeze solutions, conveying diesel fuel, gasoline or air.

Attributes:

9835	10
Tube Description	Black, Oil-Resistant, Synthetic Rubber
761	Nitrile – Type C
1261	Spiral Braid
Length	25
59	Synthetic Rubber – Modified Nitrile – Type C2
730	Type C2 – Flame, Oil & Abrasion Resistant
1363	Black
9856	GLX, MegaCrimp
9453	30R2
Inside Diameter	1
Product Type	RLA 1-Fiber Braid Return Line & Low Pressure Hose
9954	N/A
9953	N/A
Outside Diameter	1.34
Maximum Working Pressure	160
Industrial Description	16RLA-30R2X25FT
Temperature Rating	-40 Deg. F to +212 Deg. F, to +160 Deg. F (Air)
Type	Hydraulic Hose
Hose Pressure Description	Low Pressure
521	640
9941	16
9879	8
