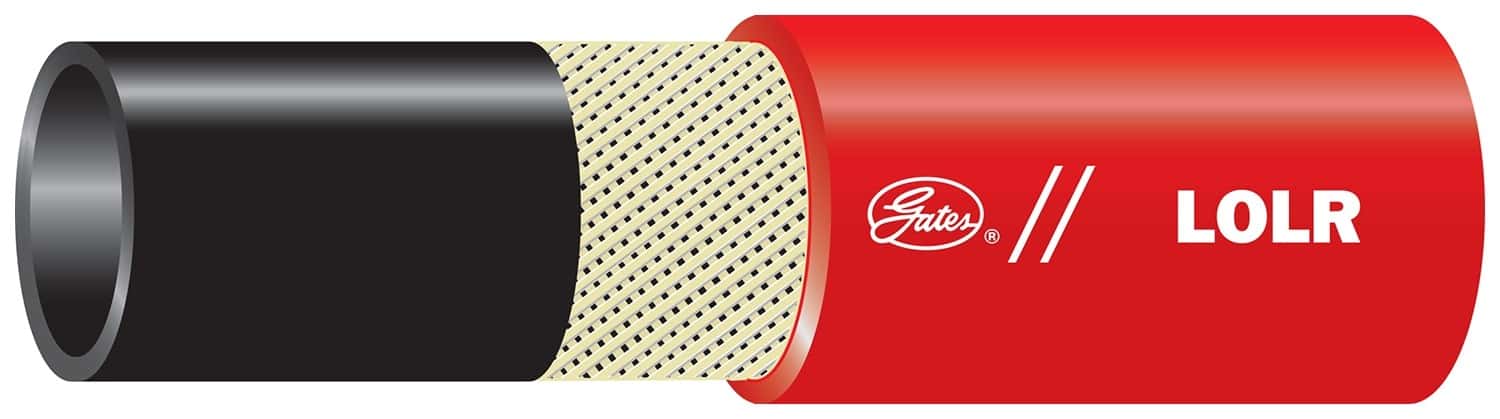

Gates 85978 LOL Plus Lock-On Hose

Gates 85978 LOL Plus Lock-On Hose

Features:

Temperatures Range: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C); Air: to +160 Deg. F (+71 Deg. C)
For use with Field Attachable LOC Couplings [G36 Series], GLX Couplings [G44 Series] and G37 single bead and G38 barbed fittings with clamp
Available in 6 colors for easy color coding; black Polychloroprene (LOLA), blue (LOLB), green (LOLG), red (LOLR), yellow (LOLY) and gray (LOLC)
Black cover only meets Flame Resistance Acceptance Designation MSHA 2G

Recommended for petroleumâ€“based hydraulic oils, water, glycol antiâ€“freeze solutions, engine lubricating oils, and air. Lockâ€“On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application.

Attributes:

9953	N/A
Temperature Rating	-40 Deg. F to +212 Deg. F, to +160 Deg. F (Air)
Outside Diameter	0.77
Maximum Working Pressure	300
Product Type	LOL Plus Lock-On Hose
Industrial Description	8LOLRX25FT
Type	Hydraulic Hose
Hose Pressure Description	Low Pressure
521	1200
9941	8
9879	5
9835	28
Tube Description	Black, Highly Heat & Oil-Resistant, Synthetic Rubber
761	Nitrile – Type C
1261	One Fiber Braid
59	Synthetic Rubber – Modified Nitrile – Type C2
730	Type C2 – Oil & Abrasion Resistant
1363	Red
9856	Field Attachable LOC, GLP, GLX
9453	N/A
Inside Diameter	0.5
Length	25
9954	N/A
