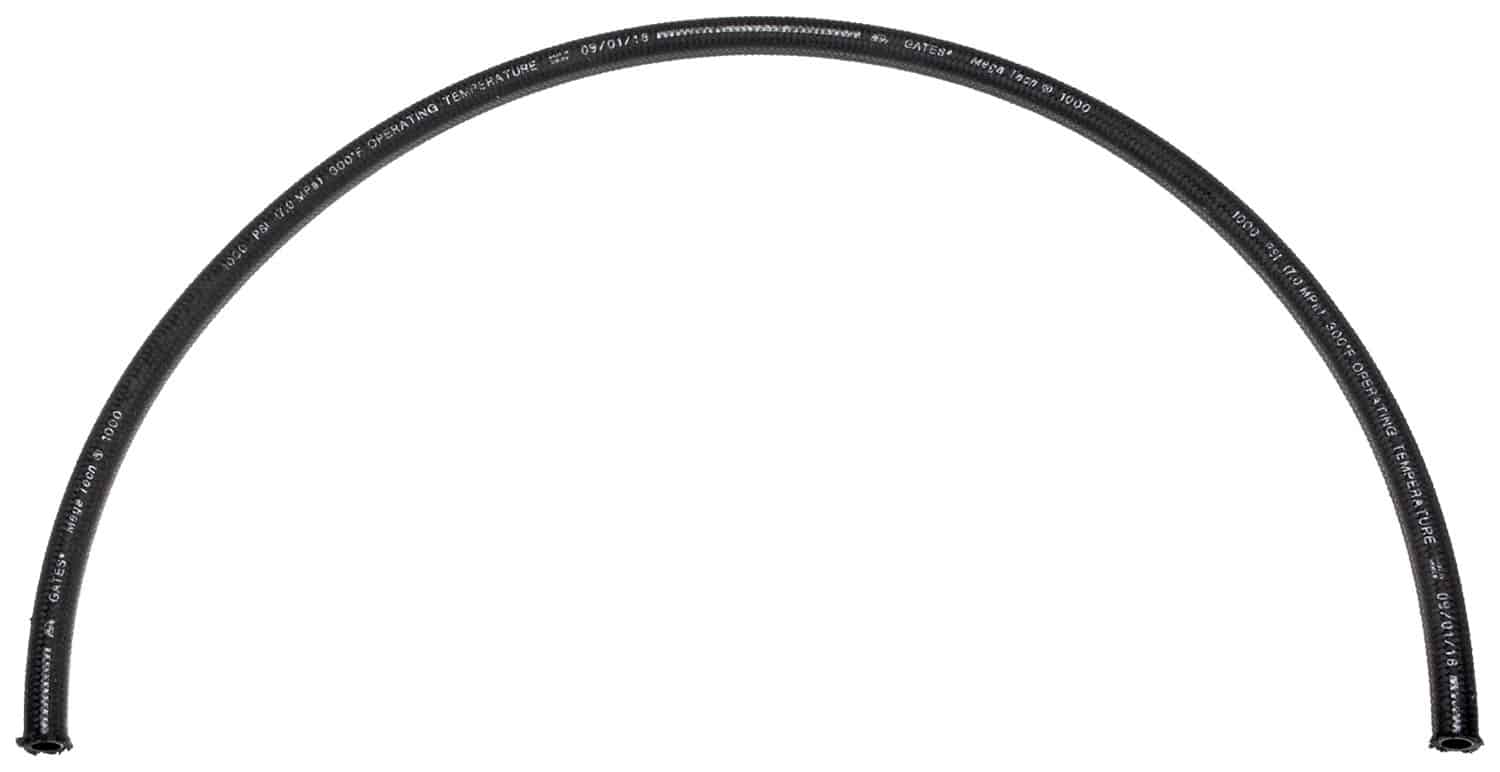

Gates 85984 MegaTech 1000 High-Temp Oil-Air Return Hose

Gates 85984 MegaTech 1000 High-Temp Oil-Air Return Hose

Features:

NOTE: See Engineering and Technical Data Section of the Gates Hydraulic Catalog for compliance
For use with MegaCrimp Couplings [G25 Series]
1000 psi constant pressure for all ID’s
Meets the requirements of DOT FMVSS 106â€“74, SAE J1402, for air brake hose (-4, -6, -8, -10)
Temperature Range: Petroleum-based Fluids: -40 Deg. F to +300 Deg. F (-40 Deg. C to +149 Deg. C); Phosphate Esters Fluids as recommended by the fluid manufacturer, but within a range of -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C)
NOTE: Federal law requires registration with the Department of Transportation for anyone producing air brake hose assemblies with swaged or crimped fittings

MegaTech 1000 High-Temp hose is recommended for air brake hose, pressurized hot oil return lines and rotary oil/air compressor lines. Not recommended for gasoline or diesel fuel applications.

Attributes:

521	4000
Maximum Working Pressure	1000
9941	12
9879	4.7
9835	30
Tube Description	Black, Specifically Compounded for Temperature & Chemical Resistance
Outside Diameter	1.15
761	CPE – Type J
1261	One Braid of High-Tensile Steel Wire
59	Textile Braid, Impregnated w/ Synthetic Rubber
730	Oil & Mildew Resistant
1363	Black
9856	MegaCrimp, Stainless Steel S
9453	N/A
9954	N/A
9953	N/A
Temperature Rating	-40 Deg. F to +300 Deg. F (Petroleum-Base Fluid); -40 Deg. F to +212 Deg. F (Phosphate Ester Fluids)
Length	50
Industrial Description	12MEGATECH1000X50FT
Product Type	MegaTech 1000 High-Temp Oil-Air Return Hose
Inside Diameter	0.75
Type	Fleet Application & Maintenance Hose
Hose Pressure Description	Medium Pressure
