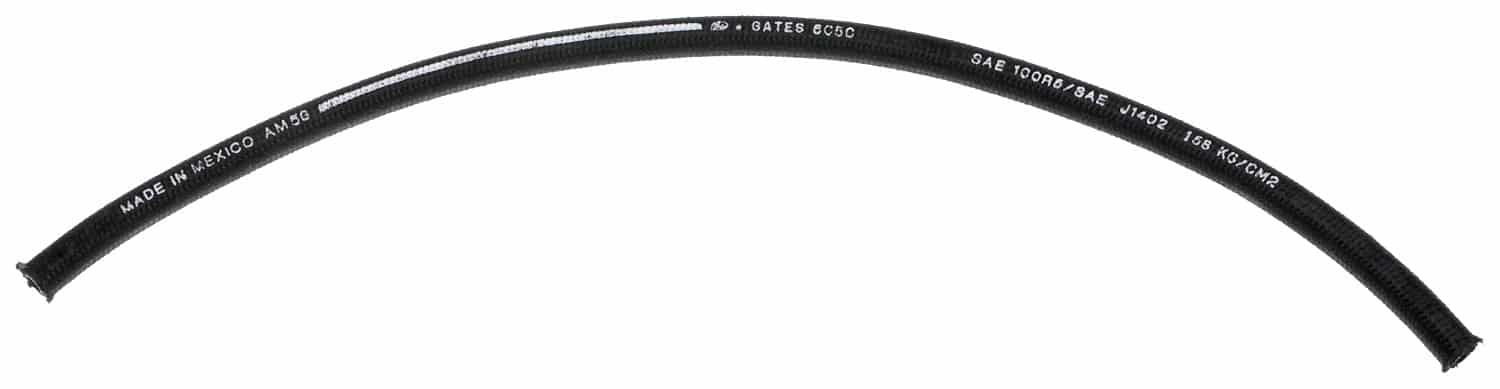

Gates 86606 C5C Hydraulic Hose – SAE 100R5

Gates 86606 C5C Hydraulic Hose – SAE 100R5

Features:

For use with C5 and C5X Field Attachable Couplings [G34 Series]
Meets or exceeds requirements of SAE 100R5 for traditional hydraulic applications, DOT FMVSS 106â€“74 TypeAII and SAE J1402 Type AII for air brake applications (-4 to -12)
Avoid continuous use at maximum temperature concurrent with maximum working pressures
Temperature Range: Hydraulic Conditions: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C); All-purpose Fleet Application (Hot Lube Oil Lines) -40 Deg. F to +300 Deg. F (-40 Deg. C to +149 Deg. C)

C5C hydraulic hoses are recommended for medium pressure hydraulic petroleum-based oil lines in impulse applications, lube oil. Also recommended for air and water in applications such as air brakes, turbocharger oil supplies, tilt cab cylinders, transmission coolant and filtration lines. Caution: Power Steering usage is intended for heavy duty commercial vehicle use only. Not recommended for gasoline or diesel fuel.

Attributes:

761	Neoprene – Type A
Temperature Rating	-40 Deg. F to +212 Deg. F (Hydraulic); -40 Deg. F to +300 Deg. F (Hot Oil Lines); +160 Deg. F (Air)
Industrial Description	5C5CX50FT
9879	3.4
Tube Description	Black, Oil & Heat Resistant Synthetic Rubber
9953	N/A
Length	50
9941	5
Product Type	C5C Hydraulic Hose – SAE 100R5
Hose Pressure Description	High Pressure
Outside Diameter	0.58
59	Polyester Braid
1261	One Braid of High-Tensile Carbon Steel Wire Over One Braid of Polyester
730	Oil & Mildew Resistant
1363	Black
521	12000
9453	100R5
Inside Diameter	0.25
Type	Fleet Application & Maintenance Hose
9856	C5 Field Attachable, C5X Field Attachable
9954	N/A
Maximum Working Pressure	3000
