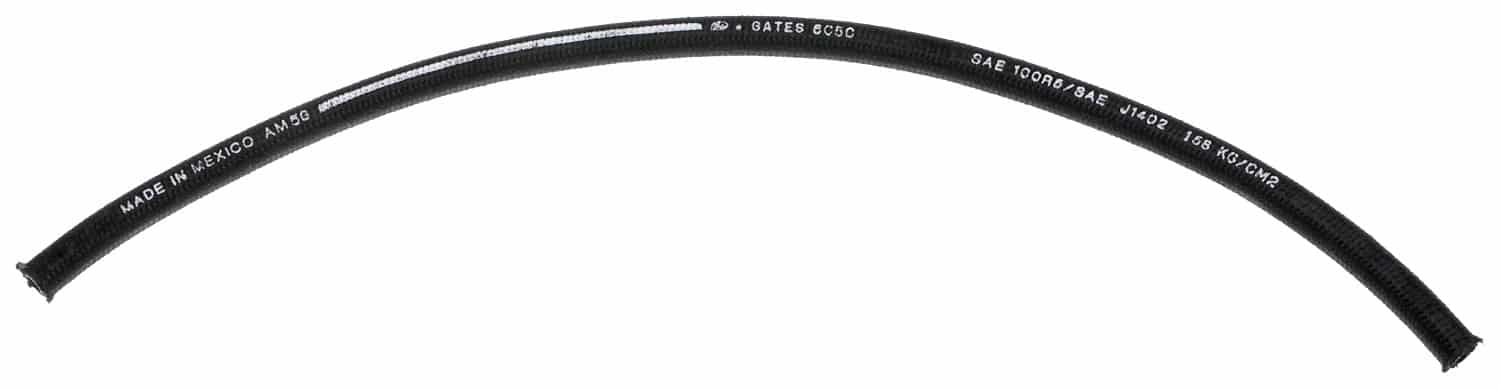

Gates 86609 C5C Hydraulic Hose – SAE 100R5

Gates 86609 C5C Hydraulic Hose – SAE 100R5

Features:

For use with C5 and C5X Field Attachable Couplings [G34 Series]
Temperature Range: Hydraulic Conditions: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C); All-purpose Fleet Application (Hot Lube Oil Lines) -40 Deg. F to +300 Deg. F (-40 Deg. C to +149 Deg. C)
Avoid continuous use at maximum temperature concurrent with maximum working pressures
Meets or exceeds requirements of SAE 100R5 for traditional hydraulic applications, DOT FMVSS 106â€“74 TypeAII and SAE J1402 Type AII for air brake applications (-4 to -12)

C5C hydraulic hoses are recommended for medium pressure hydraulic petroleum-based oil lines in impulse applications, lube oil. Also recommended for air and water in applications such as air brakes, turbocharger oil supplies, tilt cab cylinders, transmission coolant and filtration lines. Caution: Power Steering usage is intended for heavy duty commercial vehicle use only. Not recommended for gasoline or diesel fuel.

Attributes:

Tube Description	Black, Oil & Heat Resistant Synthetic Rubber
9453	100R5
9954	N/A
Inside Diameter	0.5
9953	N/A
9856	C5 Field Attachable
1363	Black
730	Oil & Mildew Resistant
59	Polyester Braid
1261	One Braid of High-Tensile Carbon Steel Wire Over One Braid of Polyester
761	Nitrile – Type C
Maximum Working Pressure	1750
Product Type	C5C Hydraulic Hose – SAE 100R5
Industrial Description	10C5CX50FT
Type	Fleet Application & Maintenance Hose
Hose Pressure Description	Medium Pressure
521	7000
9941	10
9879	5.5
Outside Diameter	0.92
Length	50
Temperature Rating	-40 Deg. F to +212 Deg. F (Hydraulic); -40 Deg. F to +300 Deg. F (Hot Oil Lines); +160 Deg. F (Air)
