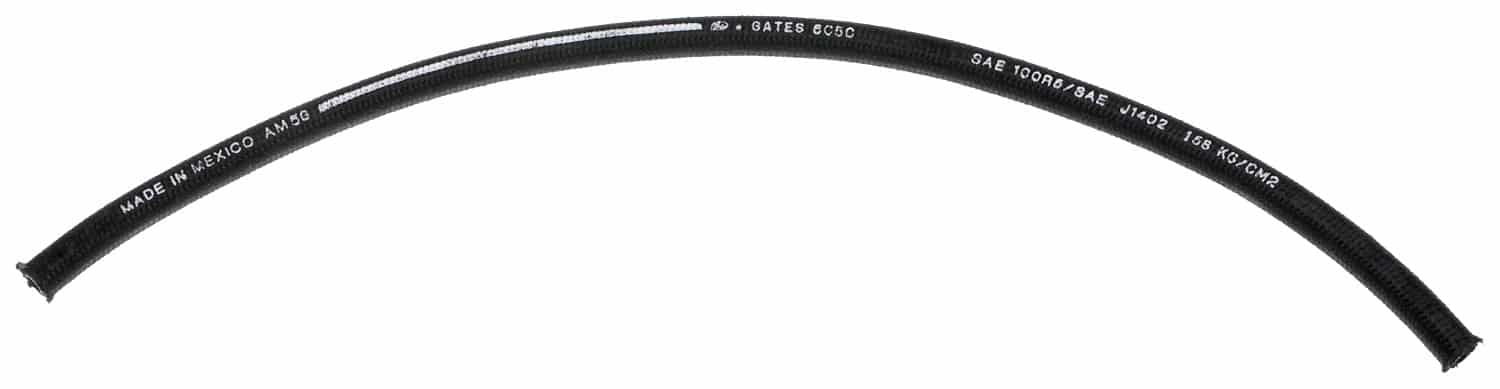

Gates 86616 C5C Hydraulic Hose – SAE 100R5

Gates 86616 C5C Hydraulic Hose – SAE 100R5

Features:

Meets or exceeds requirements of SAE 100R5 for traditional hydraulic applications, DOT FMVSS 106â€“74 TypeAII and SAE J1402 Type AII for air brake applications (-4 to -12)
For use with C5 and C5X Field Attachable Couplings [G34 Series]
Temperature Range: Hydraulic Conditions: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C); All-purpose Fleet Application (Hot Lube Oil Lines) -40 Deg. F to +300 Deg. F (-40 Deg. C to +149 Deg. C)
Avoid continuous use at maximum temperature concurrent with maximum working pressures

C5C hydraulic hoses are recommended for medium pressure hydraulic petroleum-based oil lines in impulse applications, lube oil. Also recommended for air and water in applications such as air brakes, turbocharger oil supplies, tilt cab cylinders, transmission coolant and filtration lines. Caution: Power Steering usage is intended for heavy duty commercial vehicle use only. Not recommended for gasoline or diesel fuel.

Attributes:

Industrial Description	16C5CX50FT
Type	Fleet Application & Maintenance Hose
Maximum Working Pressure	800
Hose Pressure Description	Medium Pressure
521	3200
9941	16
Outside Diameter	1.23
9879	7.4
Tube Description	Black, Oil & Heat Resistant Synthetic Rubber
Product Type	C5C Hydraulic Hose – SAE 100R5
Temperature Rating	-40 Deg. F to +212 Deg. F (Hydraulic); -40 Deg. F to +300 Deg. F (Hot Oil Lines); +160 Deg. F (Air)
761	Nitrile – Type C
9953	N/A
9954	N/A
1261	One Braid of High-Tensile Carbon Steel Wire Over One Braid of Polyester
59	Polyester Braid
9453	100R5
730	Oil & Mildew Resistant
9856	C5 Field Attachable
1363	Black
Inside Diameter	0.875
Length	50
