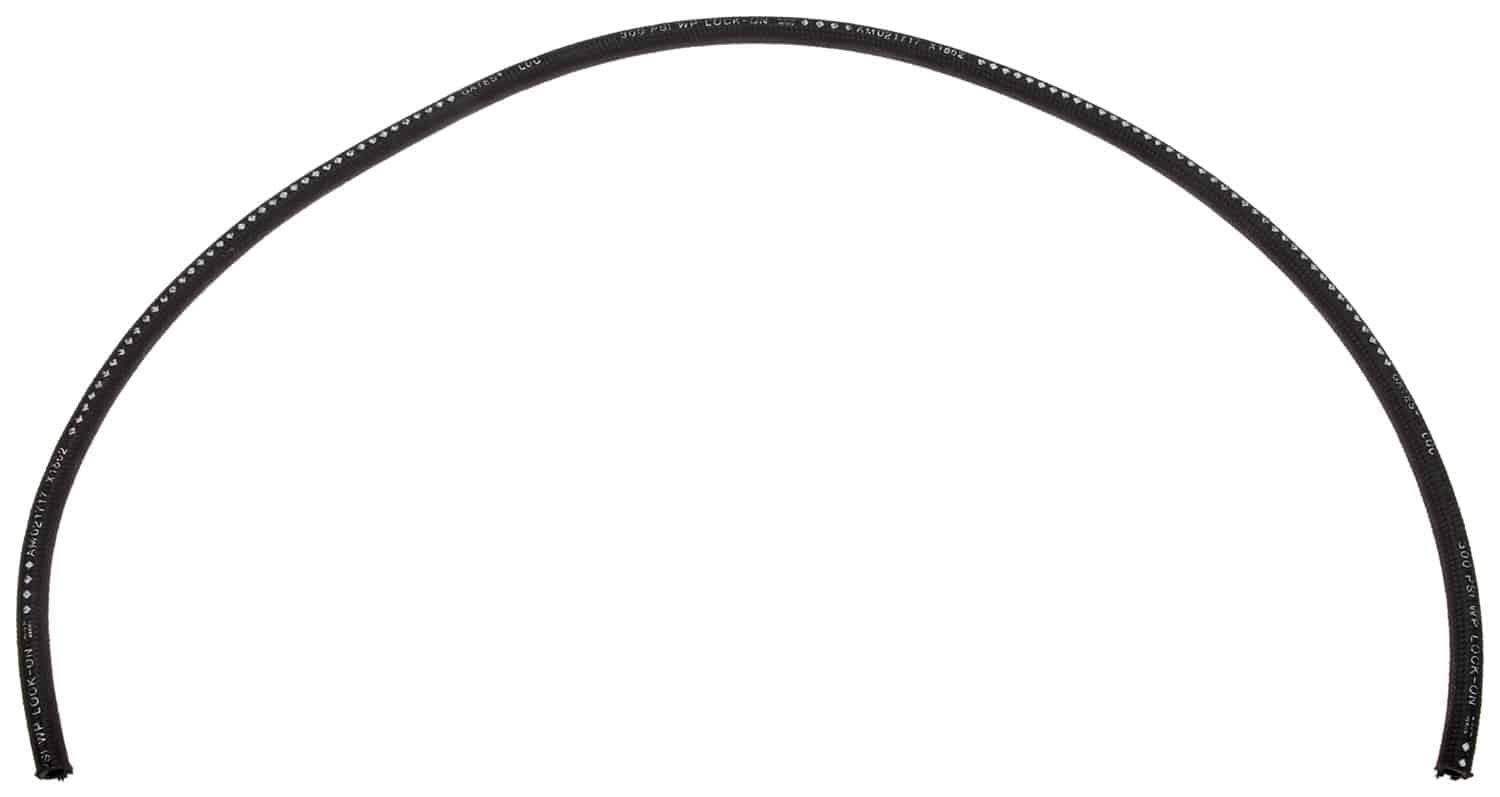

Gates 86693 LOC 1-Fiber Braid Lock-On Hose

Gates 86693 LOC 1-Fiber Braid Lock-On Hose

Features:

For use with Field Attachable LOC Couplings [G36 Series], use clamp over G37 single bead and G38 barbed fittings with clamp
Oil and mildew resistant textile braided cover impregnated with synthetic rubber
Meets SAE 30R2, SAE 30R6 and SAE 30R7 performance requirements for fuel and B20 biodiesel fuel transfer applications up to +125 Deg. F (+52 Deg. C)
Temperature Range: -40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C); Air: -40 Deg. F to +160 Deg. F (-40 Deg. C to +71 Deg. C)

Gates LOC Lock-On Hose is ideal for petroleum-based hydraulic oils, glycol antiâ€“freeze compounds, water, engine lubricating oils and air. Lockâ€“On hose and couplings are NOT recommended for vibration or pressure surge applications, such as permanent piping in residential or commercial buildings.

Attributes:

59	Textile Braid Impregnated w/ Synthetic Rubber
1261	One Fiber Braid
761	Nitrile – Type C
Tube Description	Black, Oil-Resistant, Synthetic Rubber
9879	5
9941	8
521	1200
Hose Pressure Description	Low Pressure
Type	Hydraulic Hose
Outside Diameter	0.8
Industrial Description	8LOCX50FT
Inside Diameter	0.5
9856	Field Attachable LOC Couplings, GLP
9953	N/A
9954	N/A
Length	50
9453	30R2, 30R6, 30R7
Product Type	LOC 1-Fiber Braid Lock-On Hose
Temperature Rating	-40 Deg. F to +250 Deg. F, to +160 Deg. F (Air)
Maximum Working Pressure	300
1363	Black
730	Oil & Mildew Resistant
