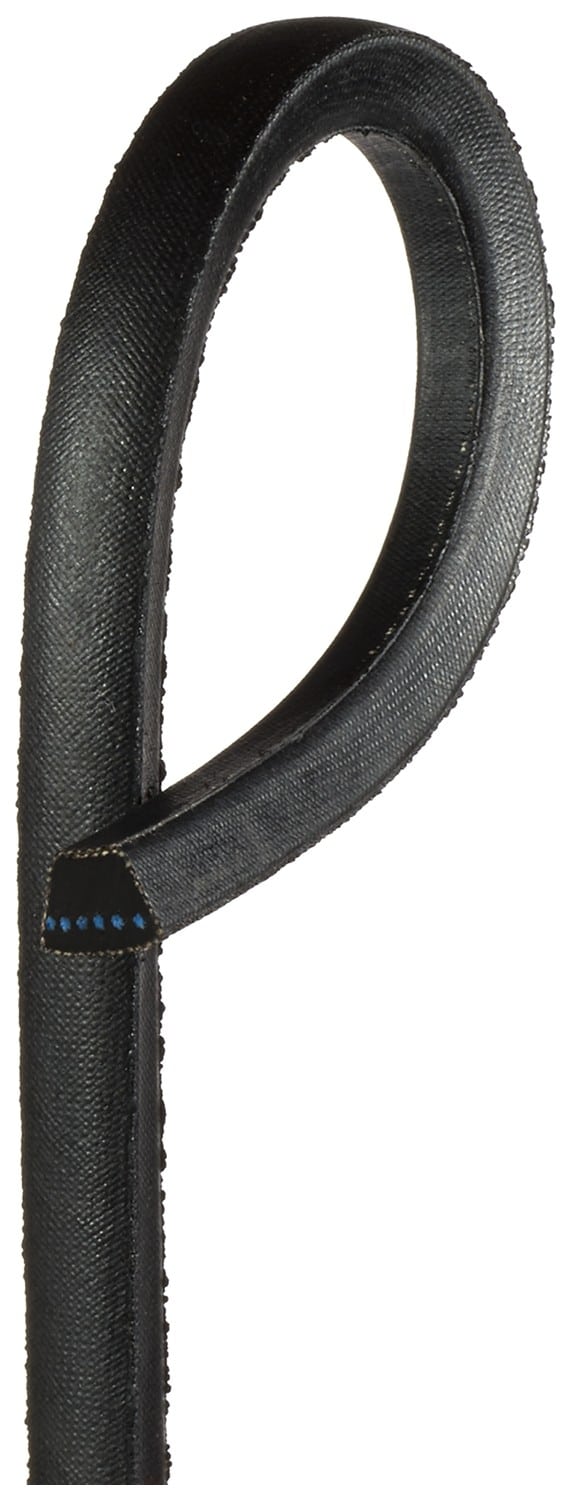

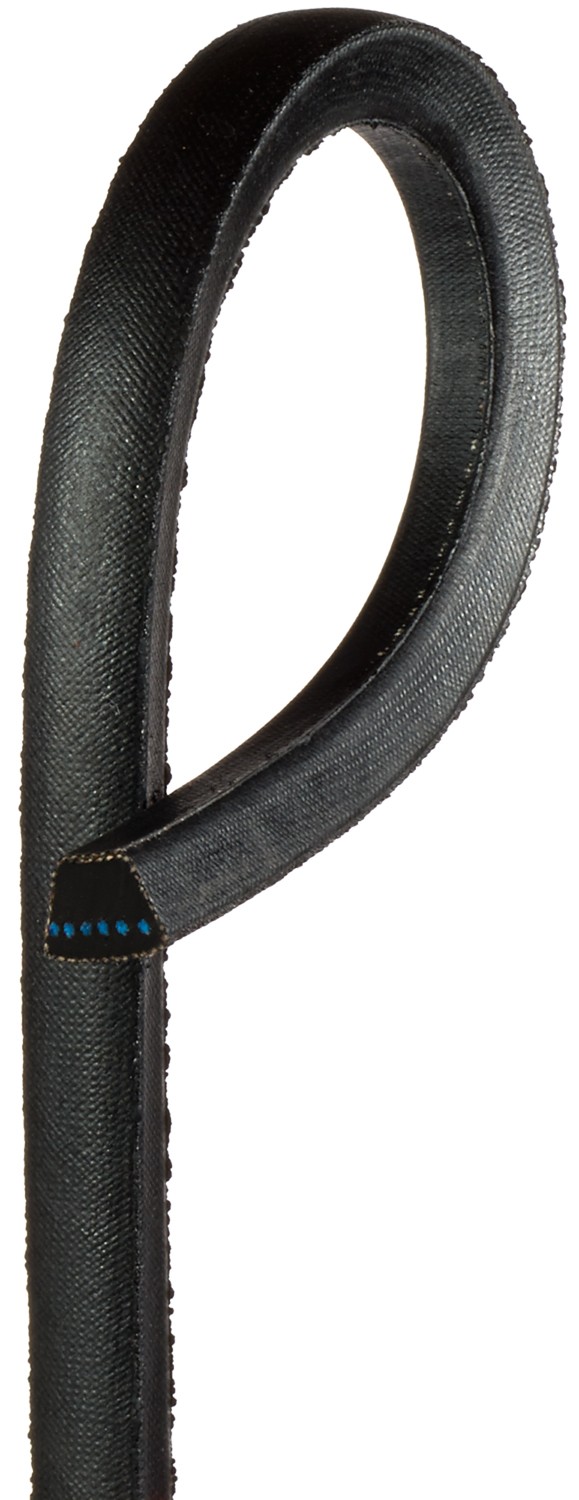

Gates A62 Hi-Power II Classical Section Wrapped V-Belt

Gates A62 Hi-Power II Classical Section Wrapped V-Belt

Features:

NOTE: Available in A, B, C, D and E cross-sections as well as Hi-Power II PowerBand V-belts
Smoother running with less slip and wear for excellent belt service life and reduced pulley wear
High-quality rubber compound protects the belt against heat, ozone and sunlight
Proprietary Flex-Weave cover is a patented fabric construction, providing extended protection to the belt core from oil, contaminants and heat for longer belt life
Flex-bonded cords strongly adhere to the body of the belt, resulting in equal load distribution and absorption of bending stress, fatigue and shock loads without cord deterioration
Meets RMA oil and heat resistant standards and static conductivity requirements
Temperature Range: -22 Deg. F to +140 Deg. F (-30 Deg. C to +60 Deg. C)

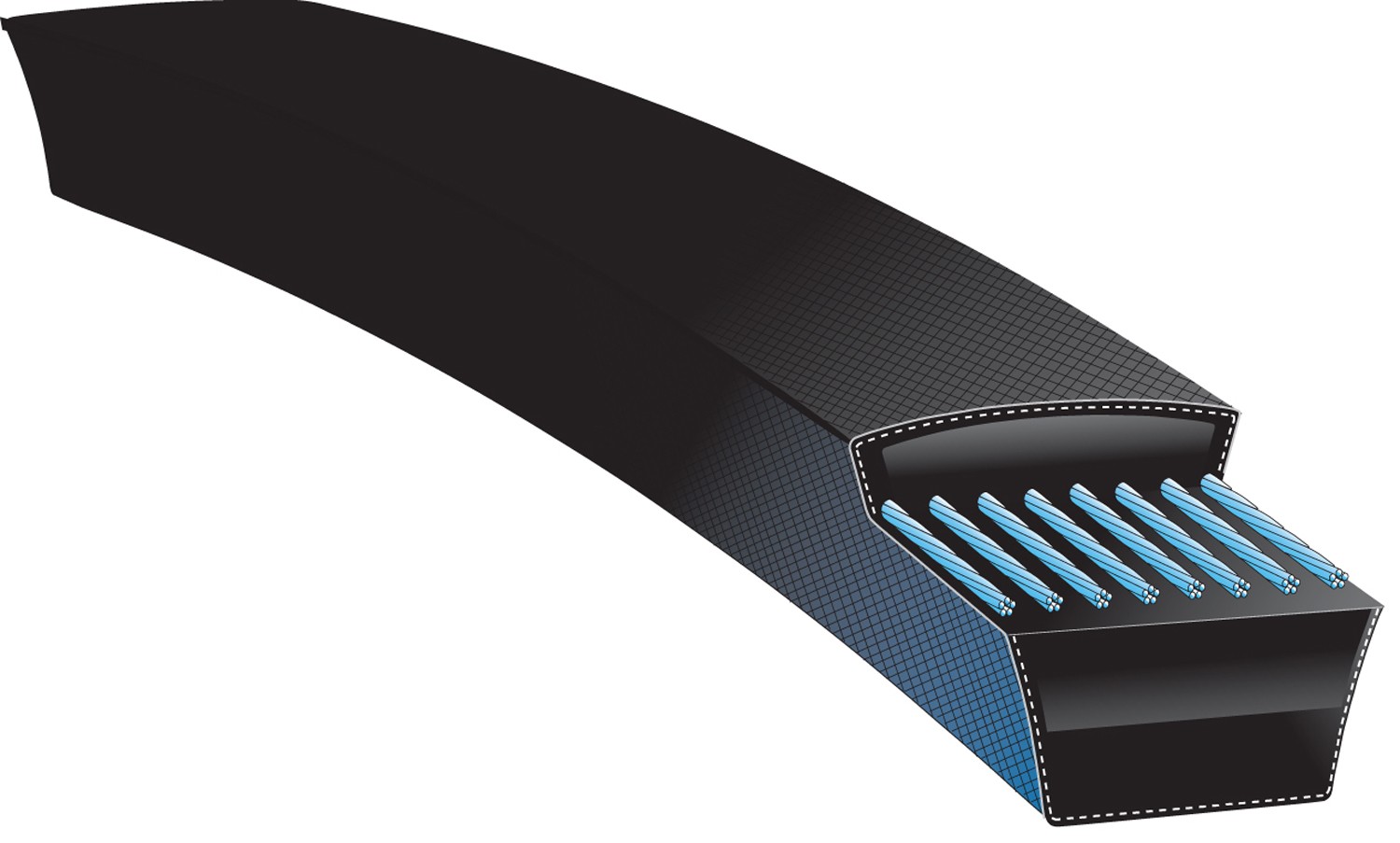

The wrapped classical section Hi-Power II V-belt has a long reputation for reliability on agricultural and industrial applications. The arched top of the Hi-Power belt provides superior strength to prevent “dishing” and distortion of the tensile section. Tight manufacturing tolerances provides for matching belts.

Attributes:

9837	No
Section	Polyester
Top Width	0.5
Strand Quantity	1
Outside Circumference	64
Cross Section Designation	A
Outside Circumference	1626
Type	Classical Section Wrapped V-Belt
Belt Material	EPDM
158	Wrapped
Top Width	13
