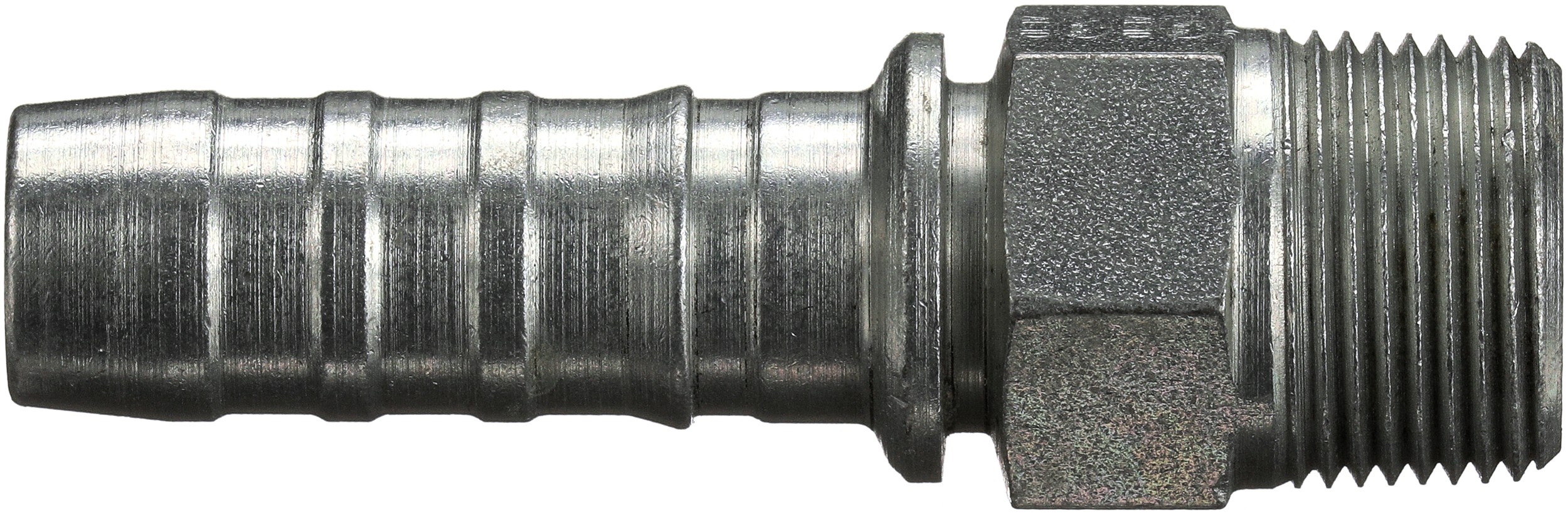

Gates G201001212 Male Pipe (NPTF – 30 Cone Seat) (GlobalSpiral)

Gates G201001212 Male Pipe (NPTF – 30 Cone Seat) (GlobalSpiral)

Features:

+250 Deg. F temperature capability for longer assembly life
â€œBite-the-wireâ€ crimp for improved coupling retention
Tested to an industry-leading 1,000,000 impulse cycles
Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard

GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ï¬‚uid power system.

Attributes:

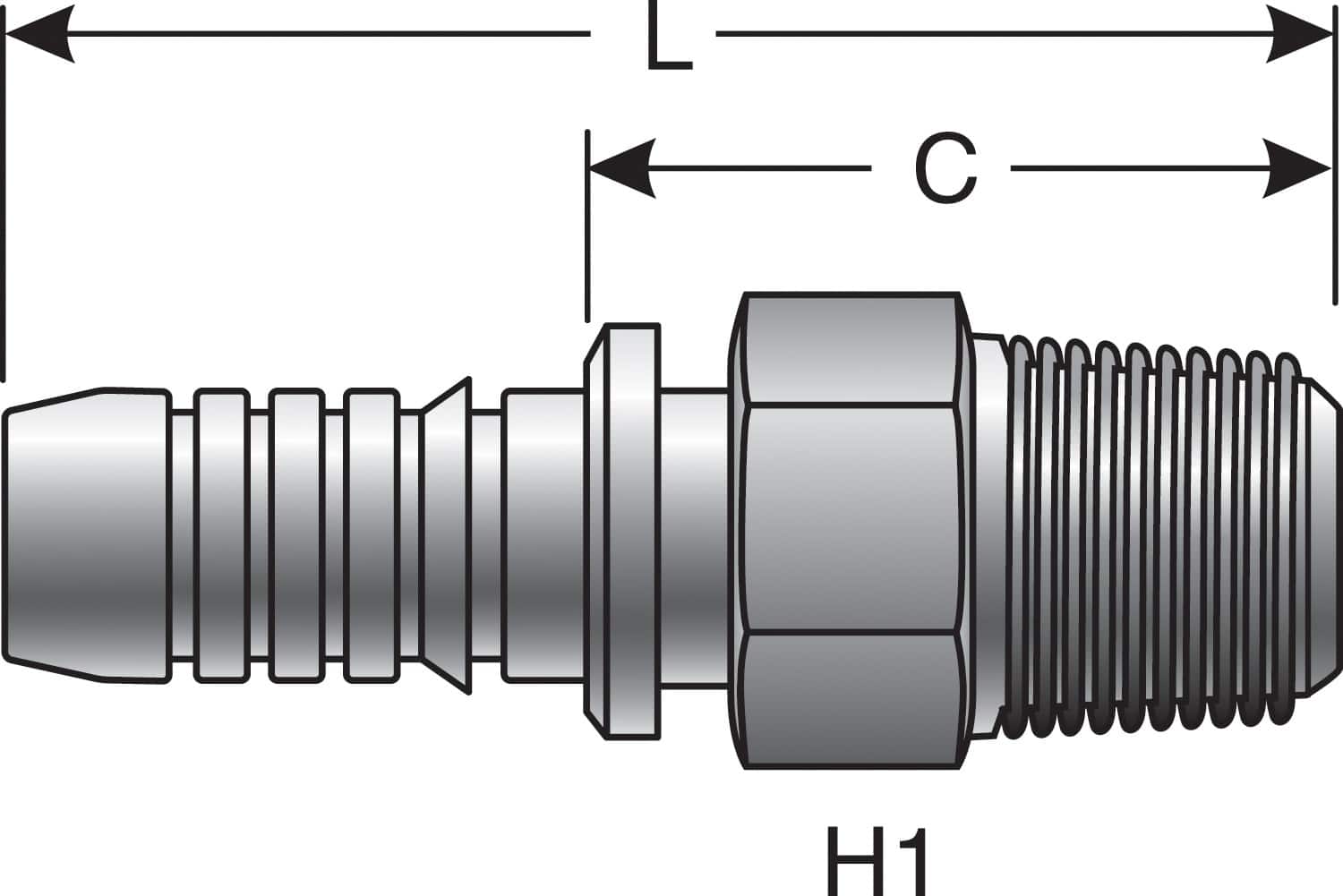

Coupling Description	GlobalSpiral Male Pipe (NPTF – 30 Cone Seat)
Inside Diameter	19.1
Inside Diameter	0.75
Length	3.54
Thread Size	03/04/2014
9929	39
9929	1.54
Industrial Description	12GS-12MP
9952	All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi
9924	1.0625
Length	89.9
