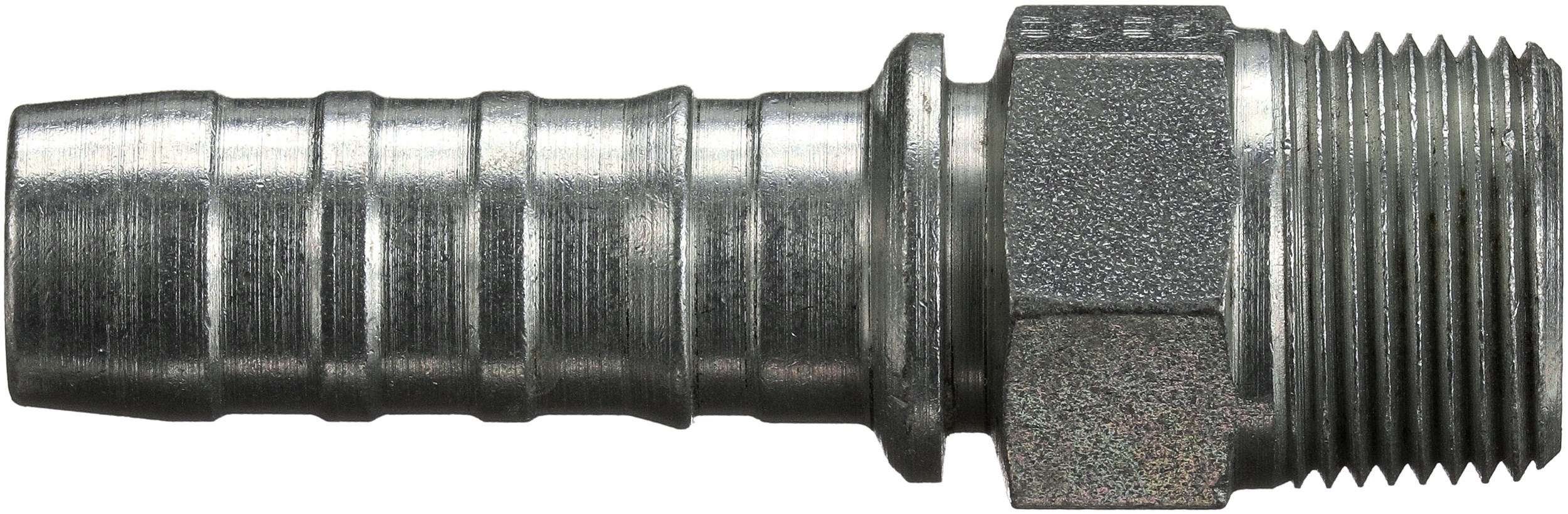

Gates G201002020 Male Pipe (NPTF – 30 Cone Seat) (GlobalSpiral)
Features:
- +250 Deg. F temperature capability for longer assembly life
- “Bite-the-wire†crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the fluid power system.
Attributes:
| Inside Diameter | 1.25 |
| Inside Diameter | 31.8 |
| Coupling Description | GlobalSpiral Male Pipe (NPTF – 30 Cone Seat) |
| Thread Size | 1 1/4-11 1/2 |
| Industrial Description | 20GS-20MP |
| 9952 | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| 9924 | 1.75 |
| 9929 | 2.2 |
| 9929 | 55.9 |
| Length | 5 |
| Length | 127 |
| Weight | 0.566 kg |
|---|
