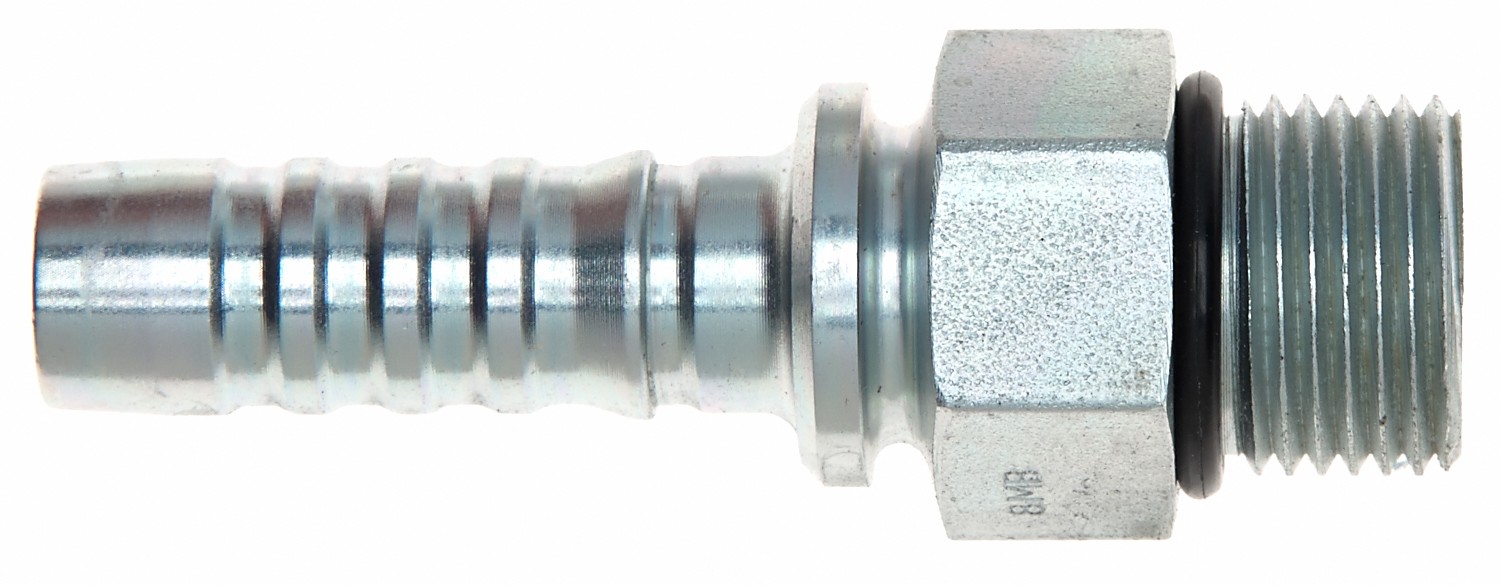

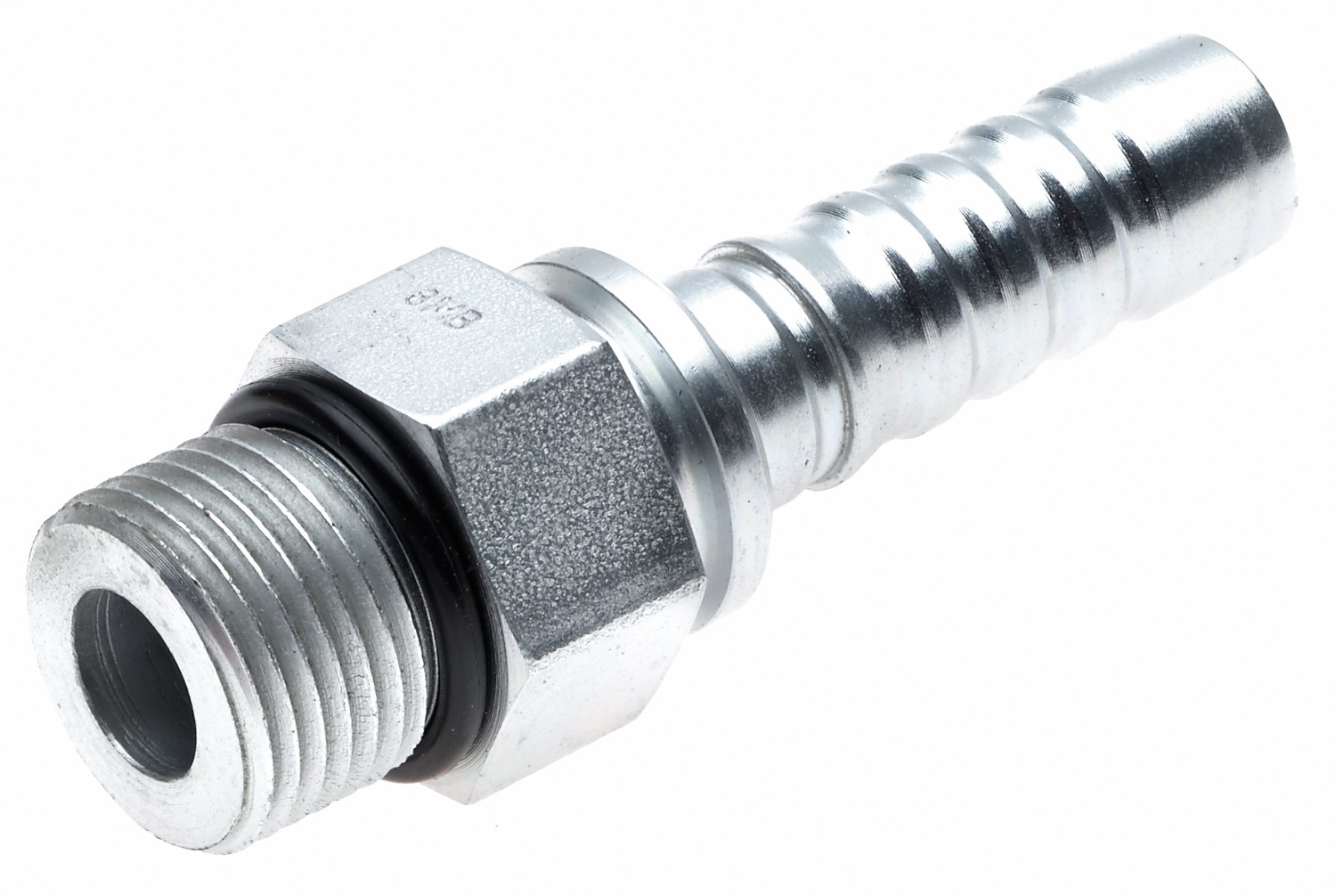

Gates G201200808 Male O-Ring Boss (GlobalSpiral)

Gates G201200808 Male O-Ring Boss (GlobalSpiral)

Features:

+250ËšF temperature capability for longer assembly life
â€œBite-the-wireâ€ crimp for improved coupling retention
Tested to an industry-leading 1,000,000 impulse cycles
Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard

GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ï¬‚uid power system. SAE J1926/2 ISO 11926-2 Heavy Duty (S Series) Stud End. MGS Couplings for use with MC4-20 Crimper Only.

Attributes:

9952	All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi
Length	2.76
Length	70.1
Inside Diameter	0.5
9924	0.875
Inside Diameter	12.7
Coupling Description	GlobalSpiral Male O-Ring Boss
Thread Size	03/04/2016
9929	32.6
9929	1.28
Industrial Description	8GS-8MB
