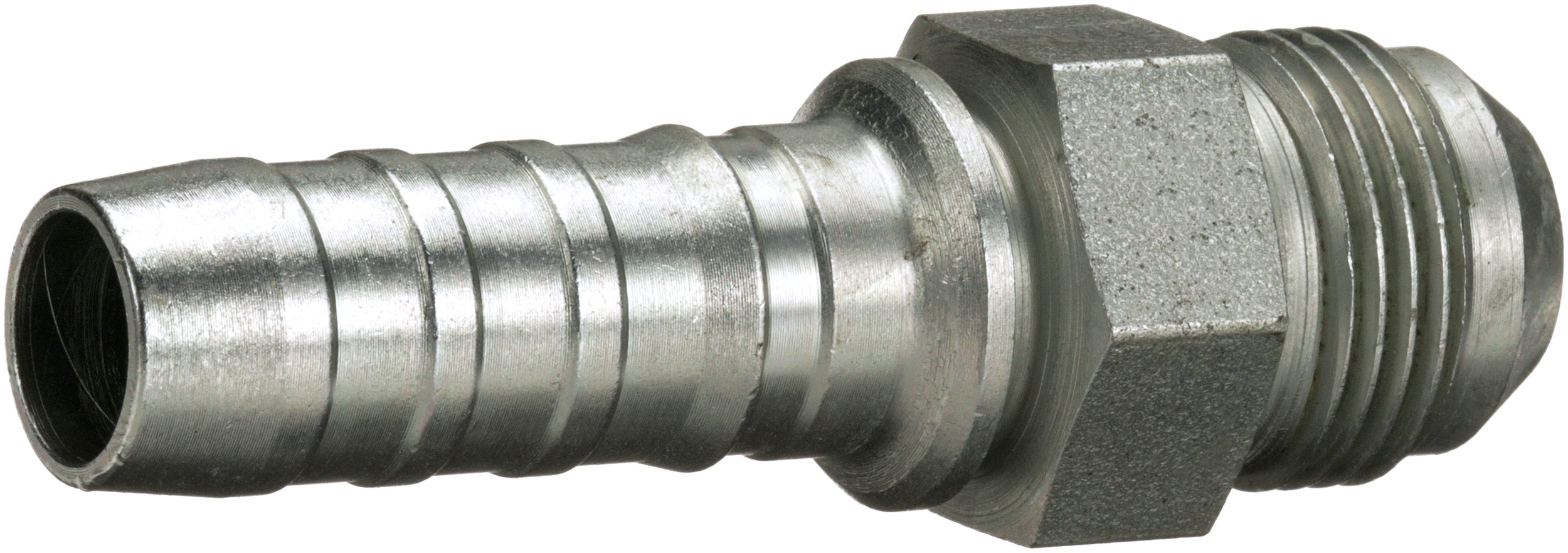

Gates G201651216 Male JIC 37 Flare (GlobalSpiral)
Features:
- Tested to an industry-leading 1,000,000 impulse cycles
- +250 Deg. F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
- “Bite-the-wire†crimp for improved coupling retention
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the fluid power system.
Attributes:
| Inside Diameter | 0.75 |
| Coupling Description | GlobalSpiral Male JIC 37 Flare |
| Industrial Description | 12GS-16MJ |
| 9952 | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| 9924 | 1.3125 |
| 9929 | 1.77 |
| 9929 | 45 |
| Length | 3.78 |
| Inside Diameter | 19.1 |
| Thread Size | 1 5/16-12 |
| Length | 96 |
| Weight | 0.272 kg |
|---|
