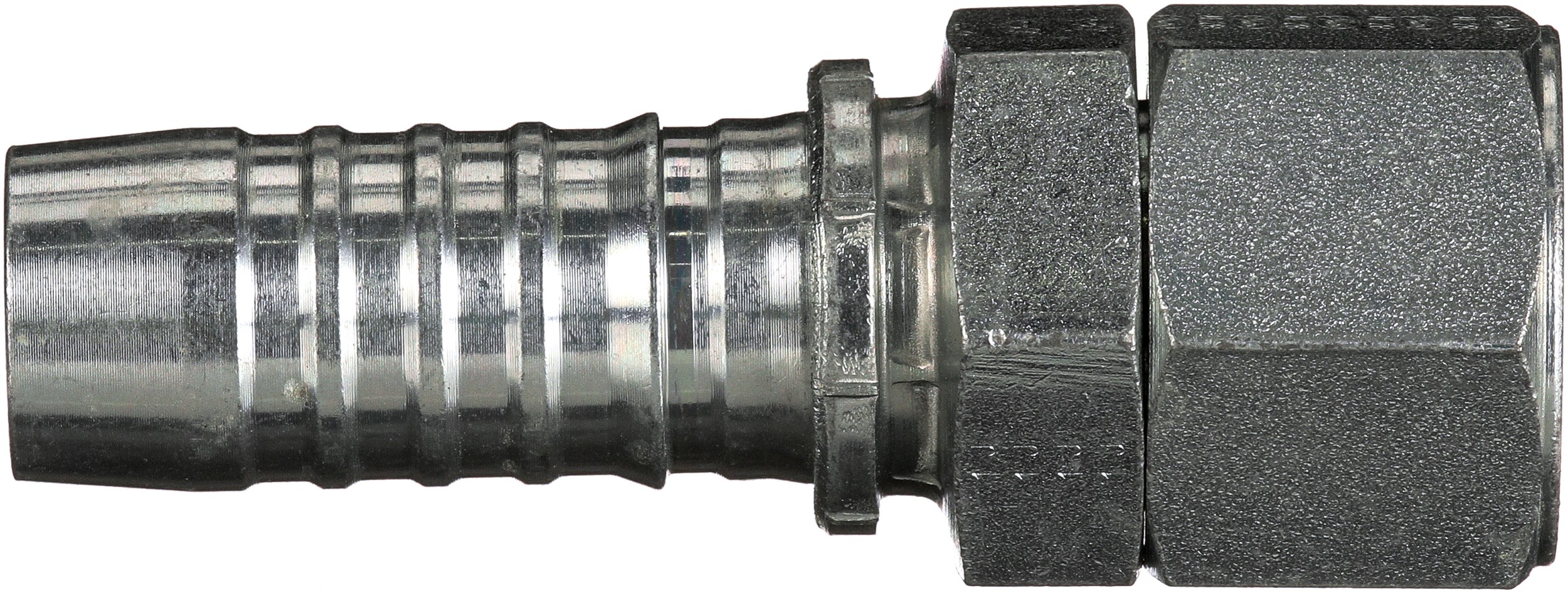

Gates G201700812 Female JIC 37 Flare Swivel (GlobalSpiral)

Gates G201700812 Female JIC 37 Flare Swivel (GlobalSpiral)

Features:

Tested to an industry-leading 1,000,000 impulse cycles
â€œBite-the-wireâ€ crimp for improved coupling retention
Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
+250 Deg. F temperature capability for longer assembly life

GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ï¬‚uid power system.

Attributes:

Inside Diameter	0.5
Inside Diameter	12.7

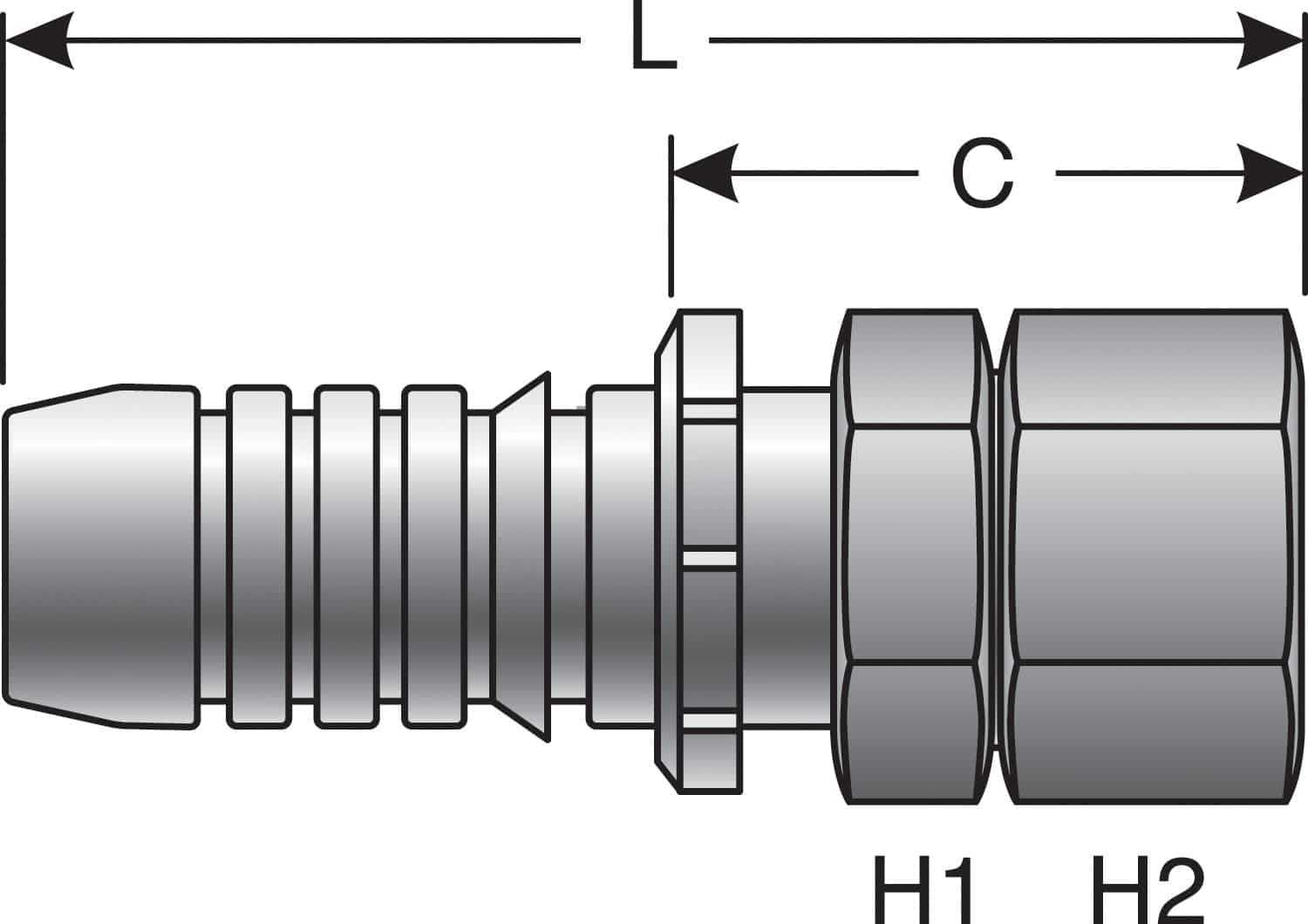

Length	77
Thread Size	1 1/16-12
Length	3.03
Coupling Description	GlobalSpiral Female JIC 37 Flare Swivel
Industrial Description	8GS-12FJX
9952	All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi
9924	0.875
9923	1.25
9929	1.56
9929	39.5
