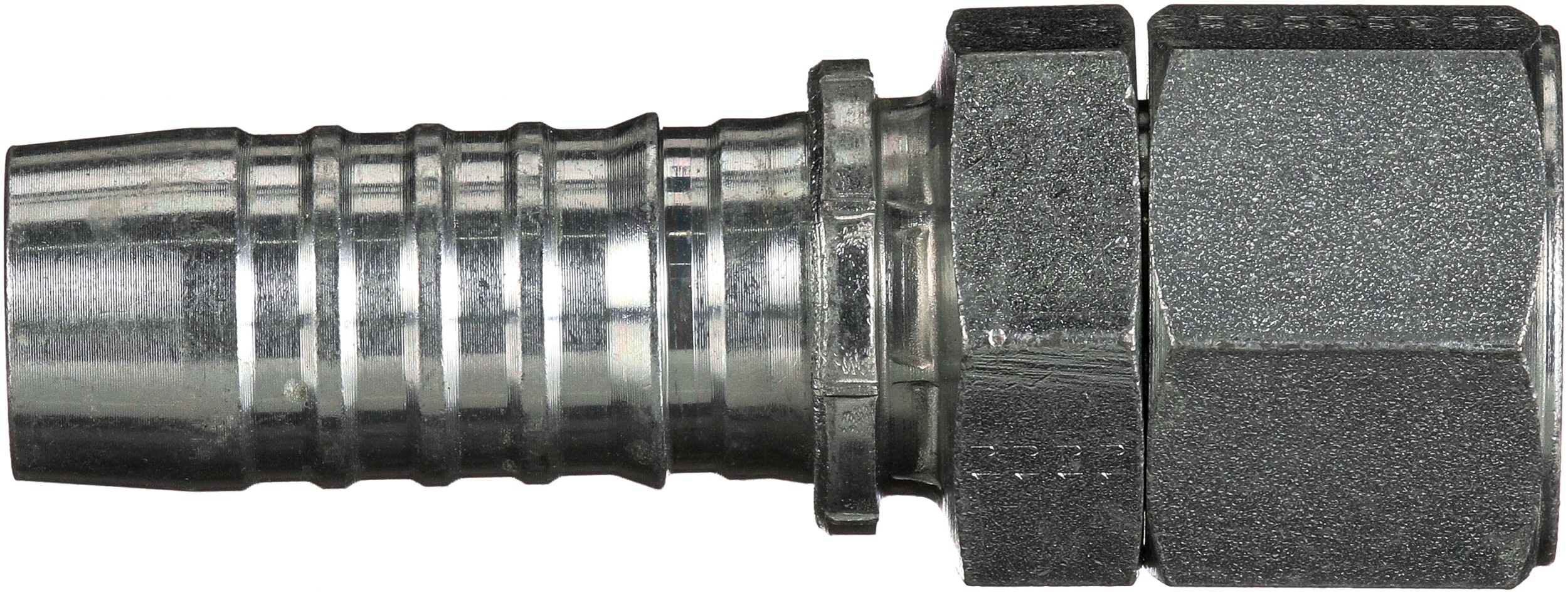

Gates G201702020 Female JIC 37 Flare Swivel (GlobalSpiral)
Features:
- “Bite-the-wire†crimp for improved coupling retention
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
- +250 Deg. F temperature capability for longer assembly life
- Tested to an industry-leading 1,000,000 impulse cycles
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the fluid power system.
Attributes:
9929 | 2.56 |
9952 | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
Industrial Description | 20GS-20FJX |
Coupling Description | GlobalSpiral Female JIC 37 Flare Swivel |
9929 | 64.9 |
Length | 134.4 |
Length | 5.29 |
Thread Size | 1 5/8-12 |
9923 | 2 |
Inside Diameter | 31.8 |
Inside Diameter | 1.25 |
9924 | 1.875 |
