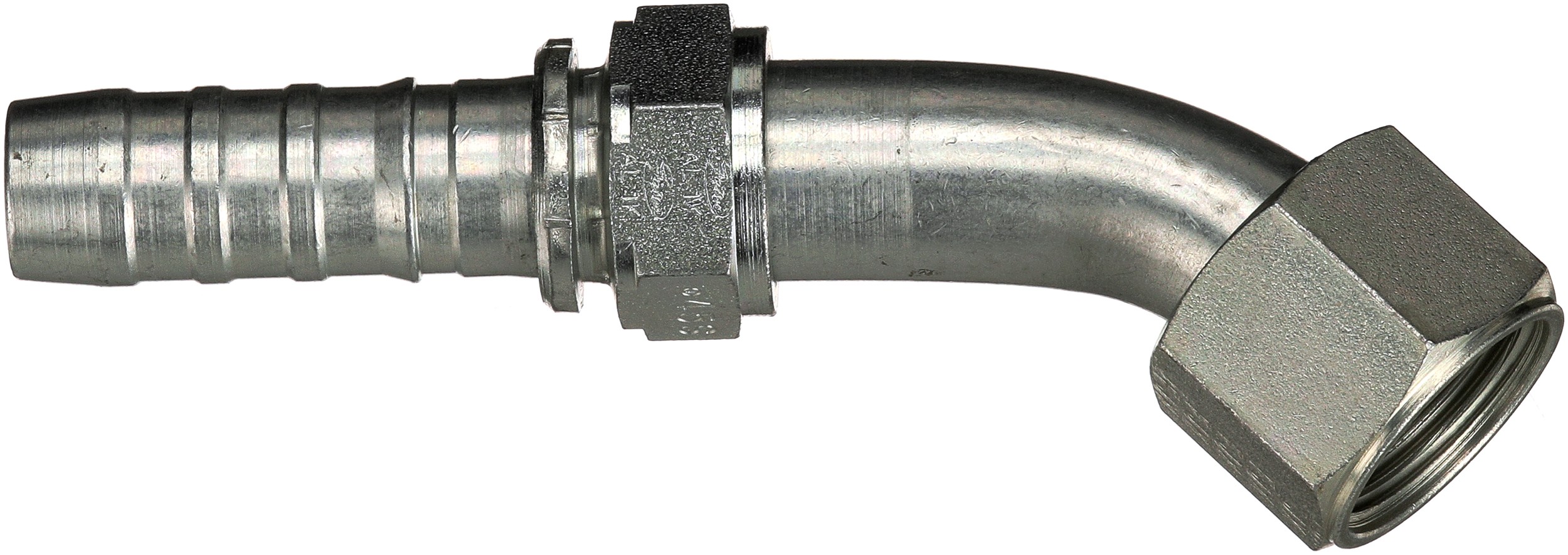

Gates G201740606 Female JIC 37 Flare Swivel – 45 Bent Tube (GlobalSpiral)

Gates G201740606 Female JIC 37 Flare Swivel – 45 Bent Tube (GlobalSpiral)

Features:

â€œBite-the-wireâ€ crimp for improved coupling retention
Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
+250 Deg. F temperature capability for longer assembly life
Tested to an industry-leading 1,000,000 impulse cycles

GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ï¬‚uid power system.

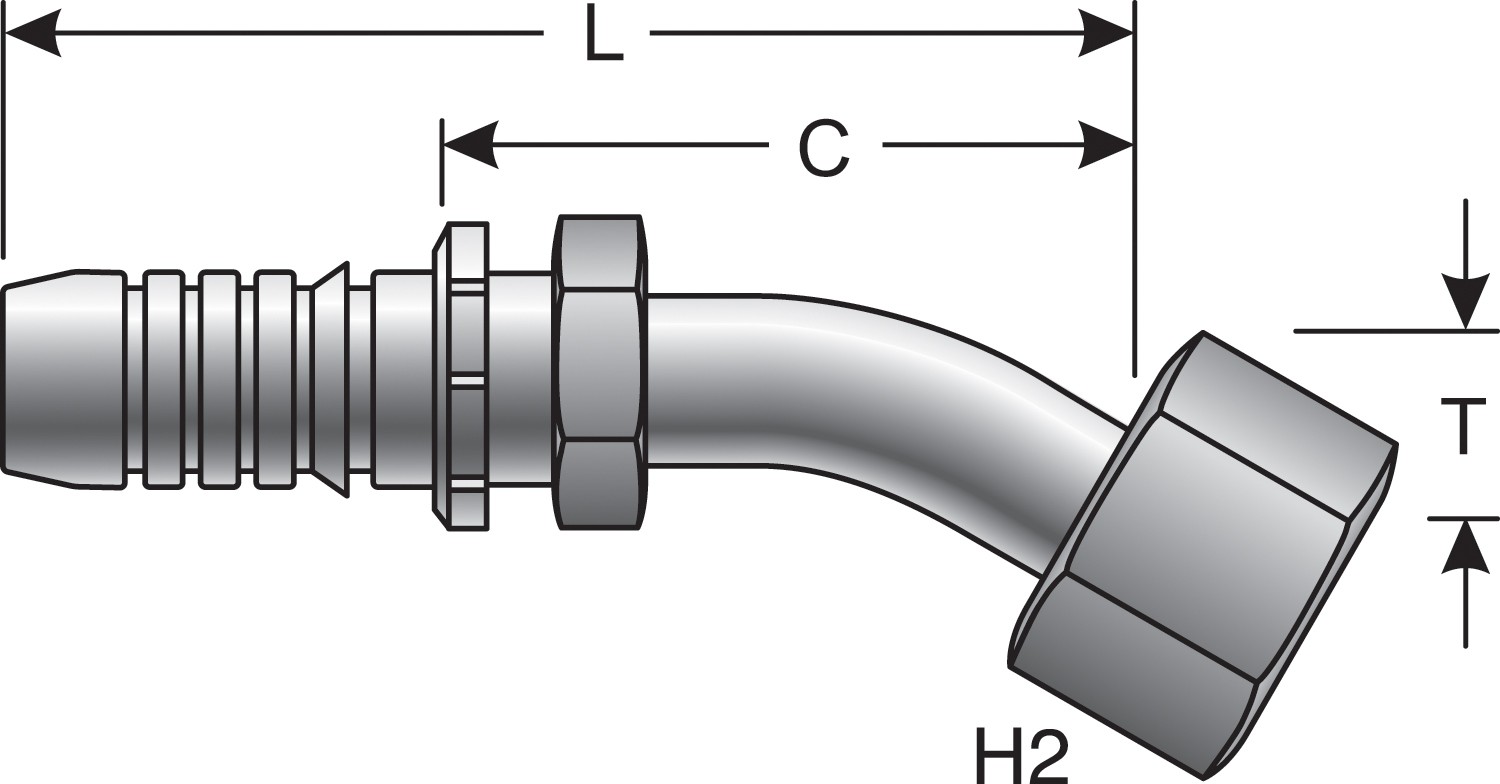

Attributes:

Thread Size	9/16-18
Inside Diameter	0.375
9929	1.82
9923	0.75
Length	82
Inside Diameter	9.5
Coupling Description	GlobalSpiral Female JIC 37 Flare Swivel – 45 Bent Tube
1874	10.9
1874	0.43
Length	3.23
9929	46.2
Industrial Description	6GS-6FJX45S
9952	All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi
