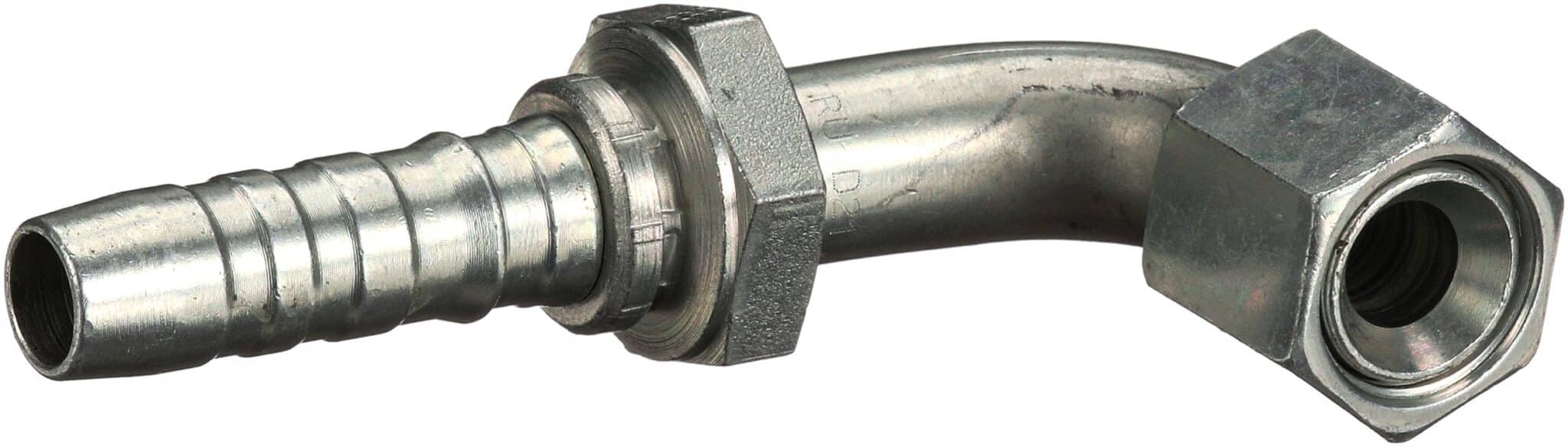

Gates G201800808 Female JIC 37 Flare Swivel – 90 Bent Tube (GlobalSpiral)

Gates G201800808 Female JIC 37 Flare Swivel – 90 Bent Tube (GlobalSpiral)

Features:

“Bite-the-wire” crimp for improved coupling retention
Tested to an industry-leading 1,000,000 impulse cycles
+250 Deg. F temperature capability for longer assembly life
Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard

GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ?uid power system.

Atributes:

9929	54.6
Inside Diameter	.5
Coupling Description	GlobalSpiral Female JIC 37 Flare Swivel – 90 Bent Tube
Industrial Description	8GS-8FJX90M
9952	All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi
9923	.875
1874	1.61
Inside Diameter	12.7
Thread Size	3/4-16
1874	40.9
Length	92
Length	3.62
9929	2.15
