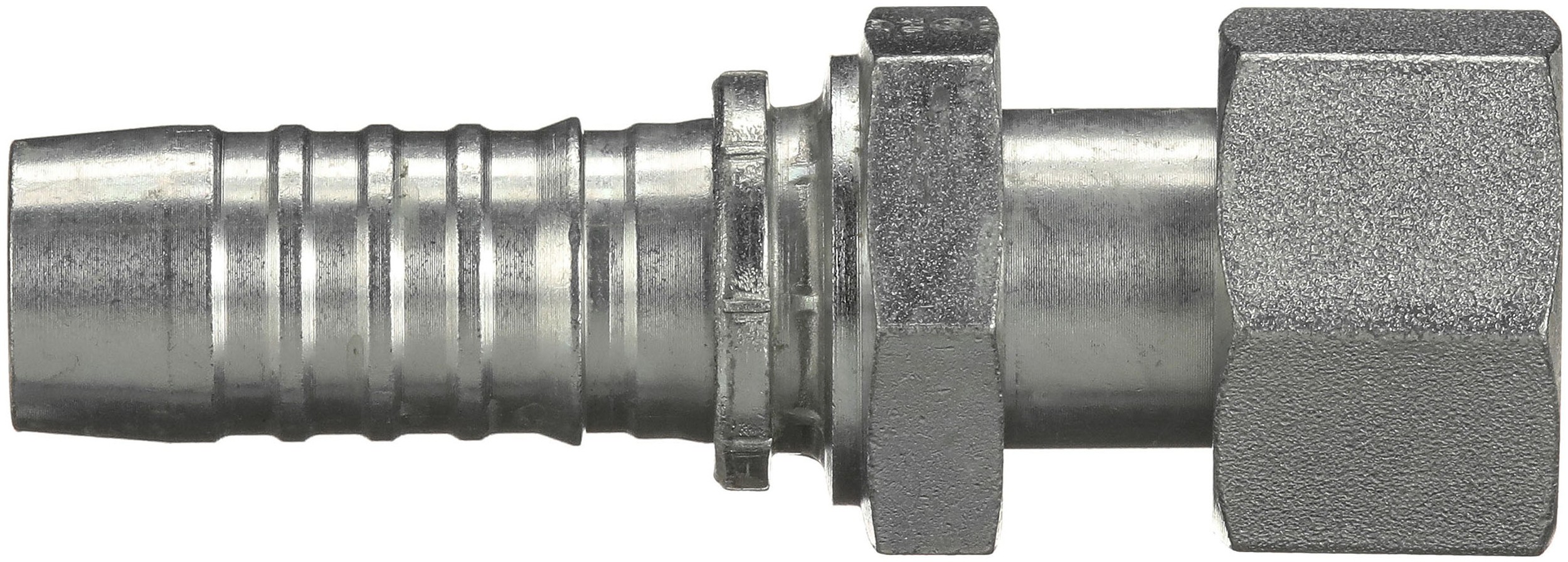

Gates G202300810 Female Flat-Face O-Ring Swivel (GlobalSpiral)

Gates G202300810 Female Flat-Face O-Ring Swivel (GlobalSpiral)

Features:

Tested to an industry-leading 1,000,000 impulse cycles
+250ËšF temperature capability for longer assembly life
Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
â€œBite-the-wireâ€ crimp for improved coupling retention

GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ï¬‚uid power system. Metric Hex per ISO Draft International Standard 12151-1. SAE J1453 O-Ring Face Seal. MGS Couplings for use with MC4-20 Crimper Only.

Attributes:

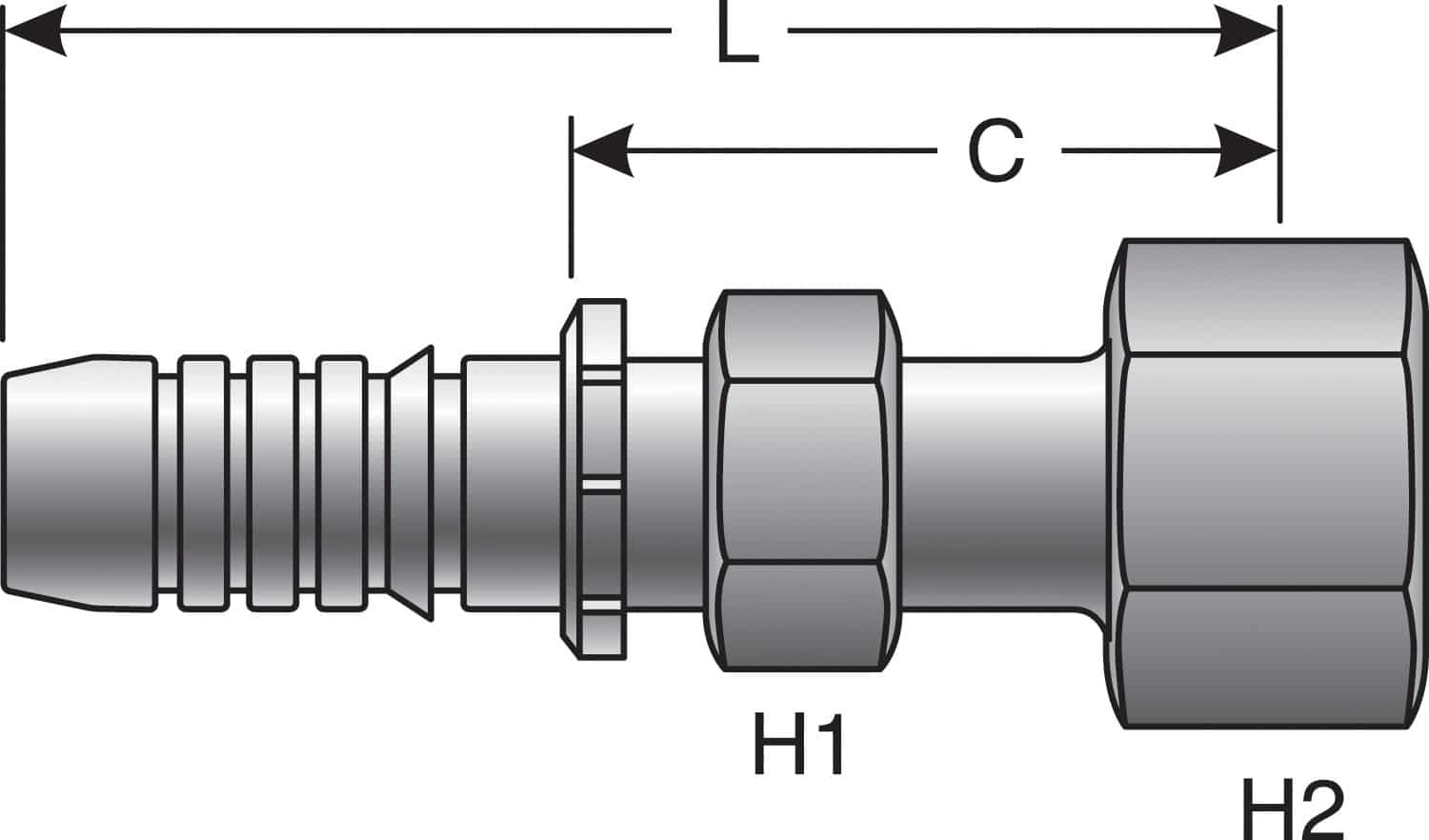

Length	78
Industrial Description	8GS-10FFORX
Inside Diameter	12.7
Inside Diameter	0.5
Length	3.07
Thread Size	Jan-14
Coupling Description	GlobalSpiral Female Flat-Face O-Ring Swivel
9929	40.5
9929	1.59
9923	30
9924	24
9952	All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi
