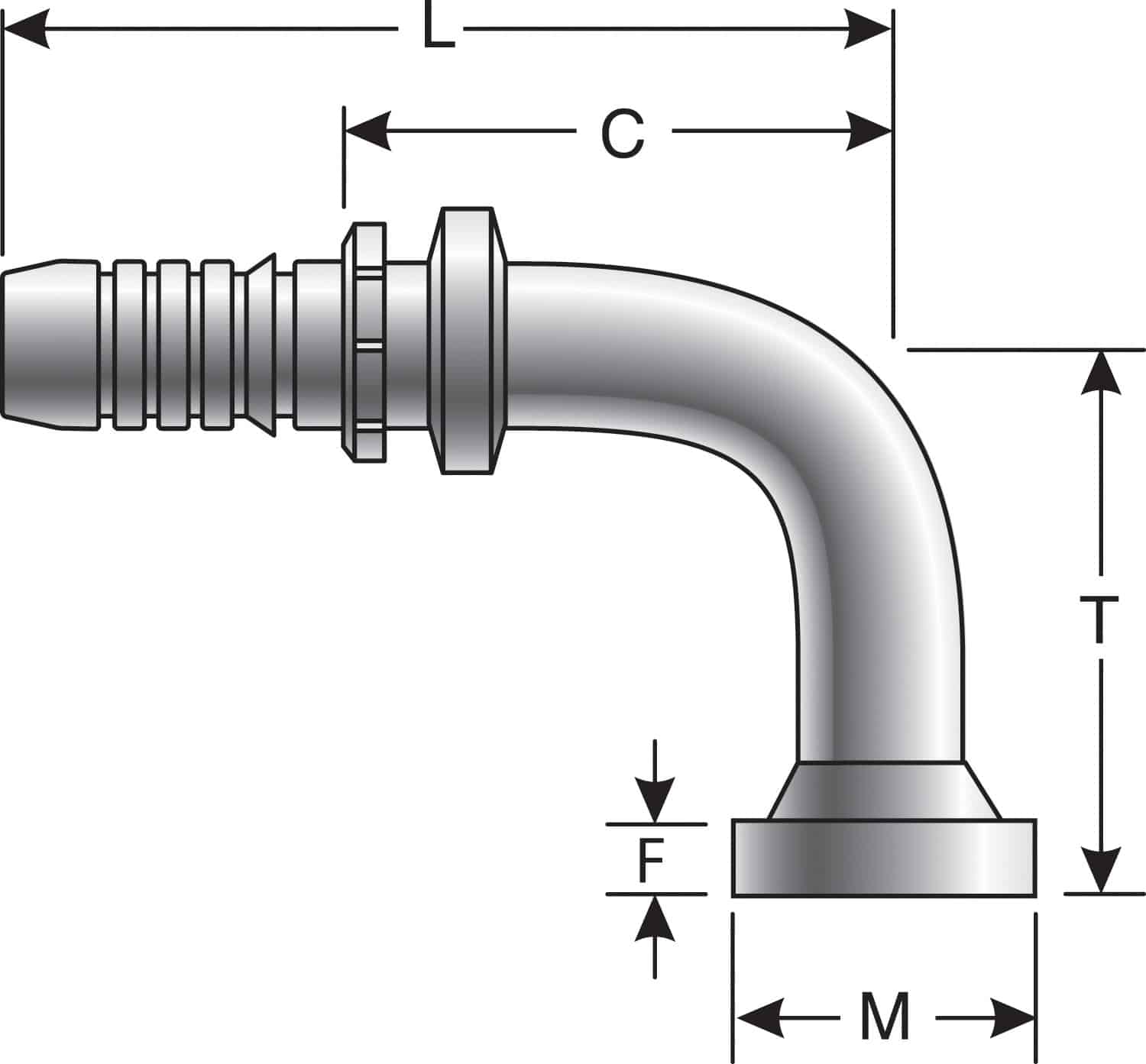

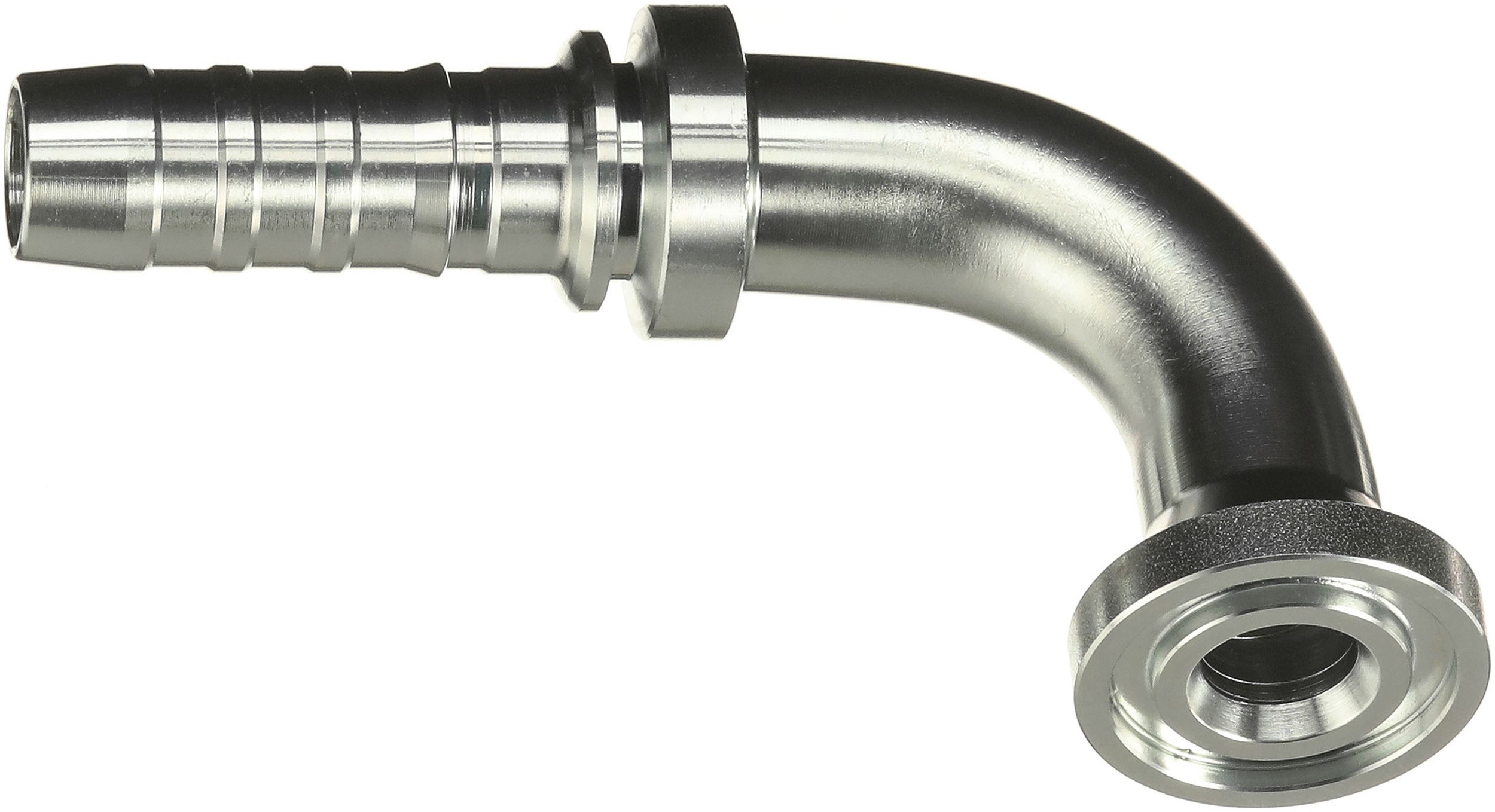

Gates G203151212 Code 61 O-Ring Flange – 90 Bent Tube (GlobalSpiral)

Gates G203151212 Code 61 O-Ring Flange – 90 Bent Tube (GlobalSpiral)

Features:

• +250ËšF temperature capability for longer assembly life
• “Bite-the-wire” crimp for improved coupling retention
• Tested to an industry-leading 1,000,000 impulse cycles
• Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard

GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the fluid power system. -8FL, -12FL, -16FL maximum working pressure is 5000 psi; -20FL maximum working pressure is 4000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Gates accessories for O-rings. MGS Couplings for use with MC4-20 Crimper Only.

Attributes:
